Crawler type mobile crushing plant

Crawler type mobile crushing plant for sale

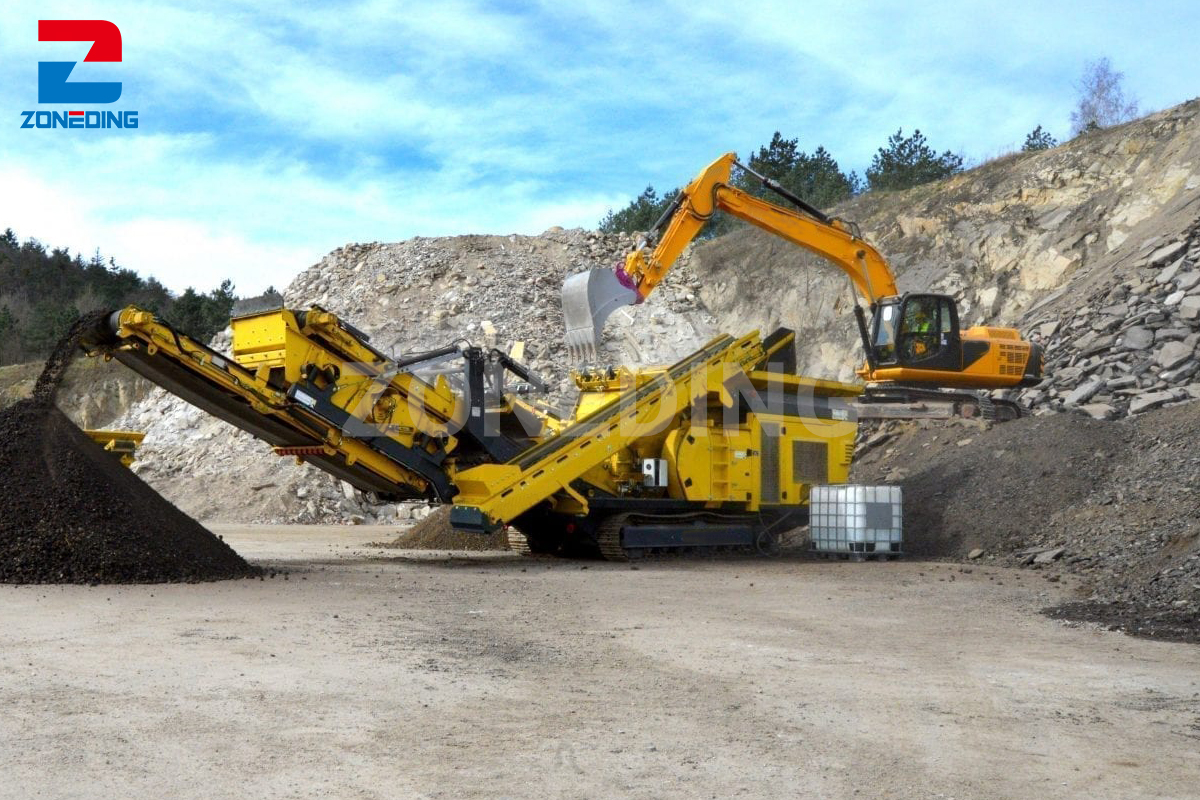

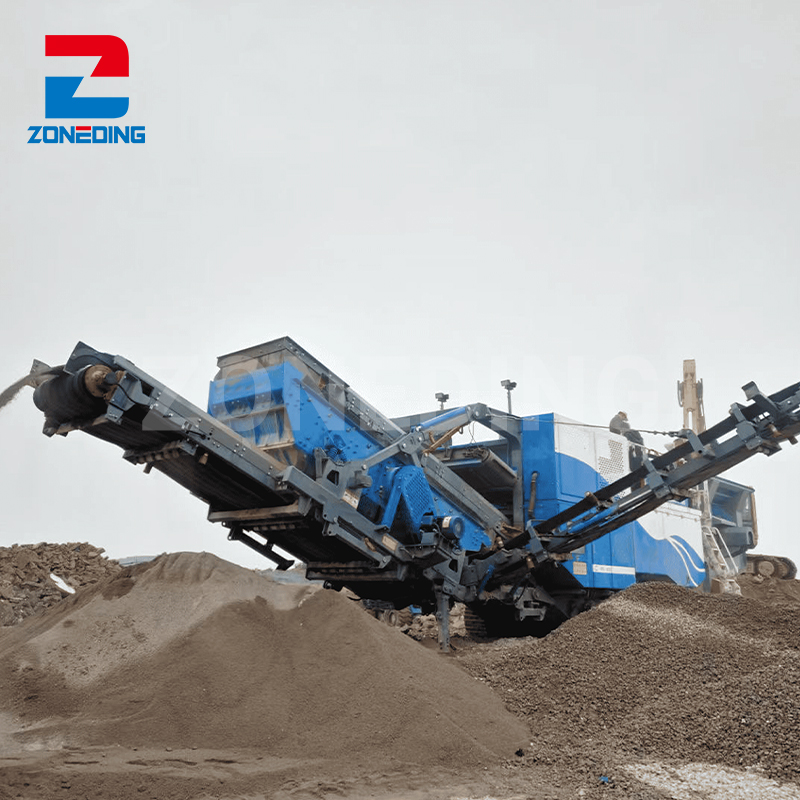

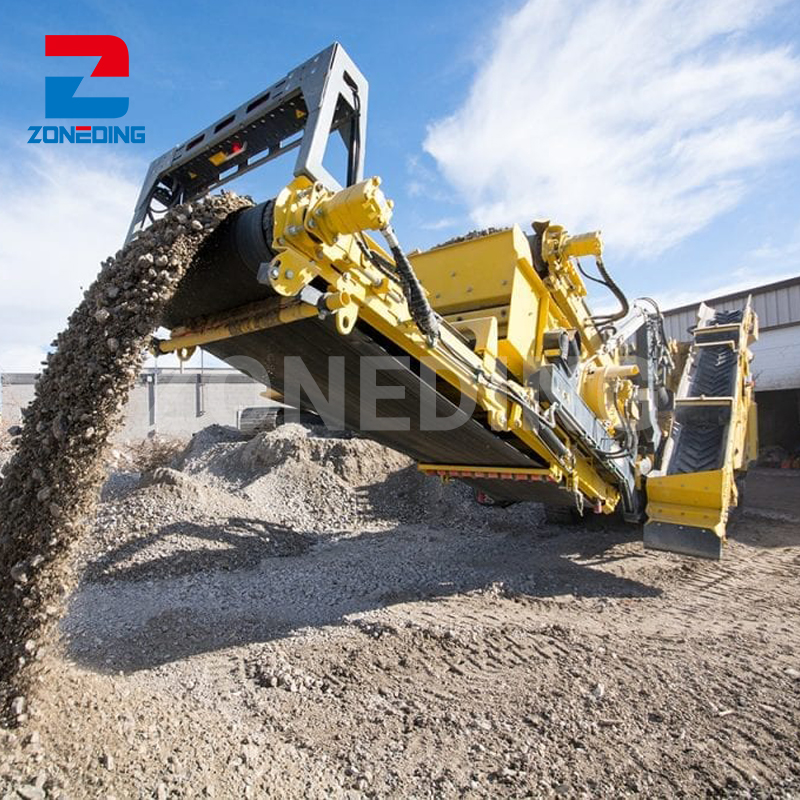

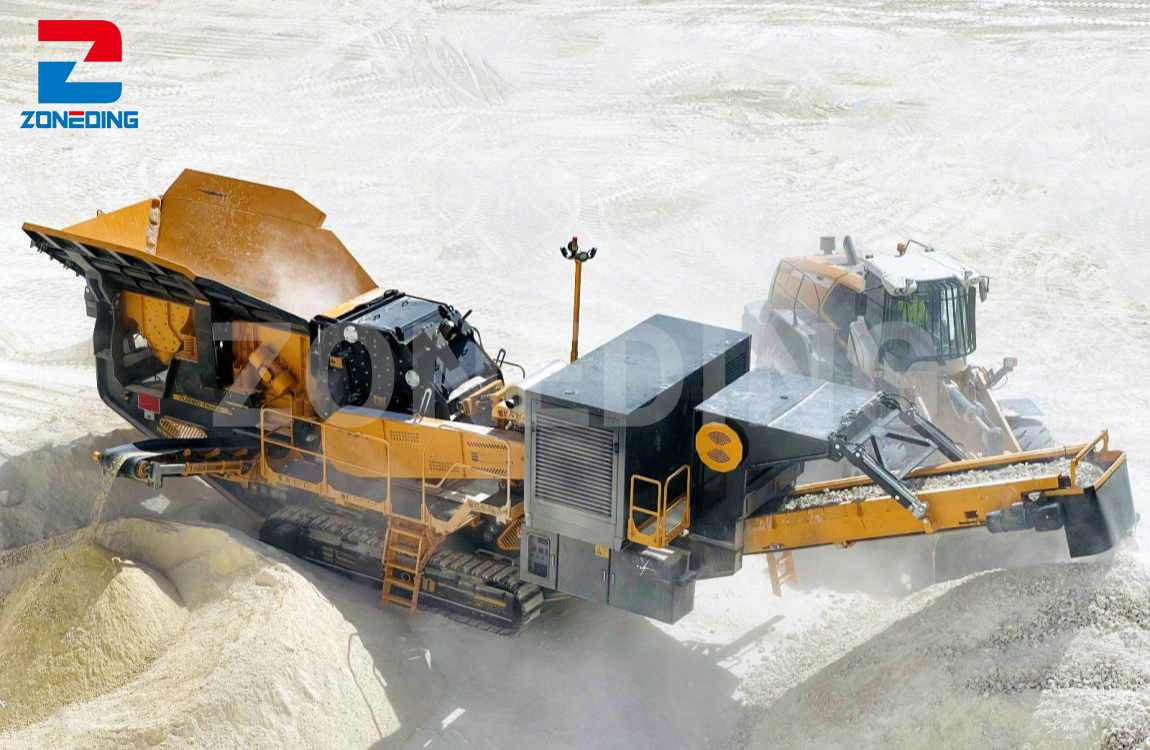

Crawler type mobile crushing plantr is a mobile machine equipped with a crawler-driven chassis. The equipment required for the production line can be reasonably mounted on a crawler moving frame.

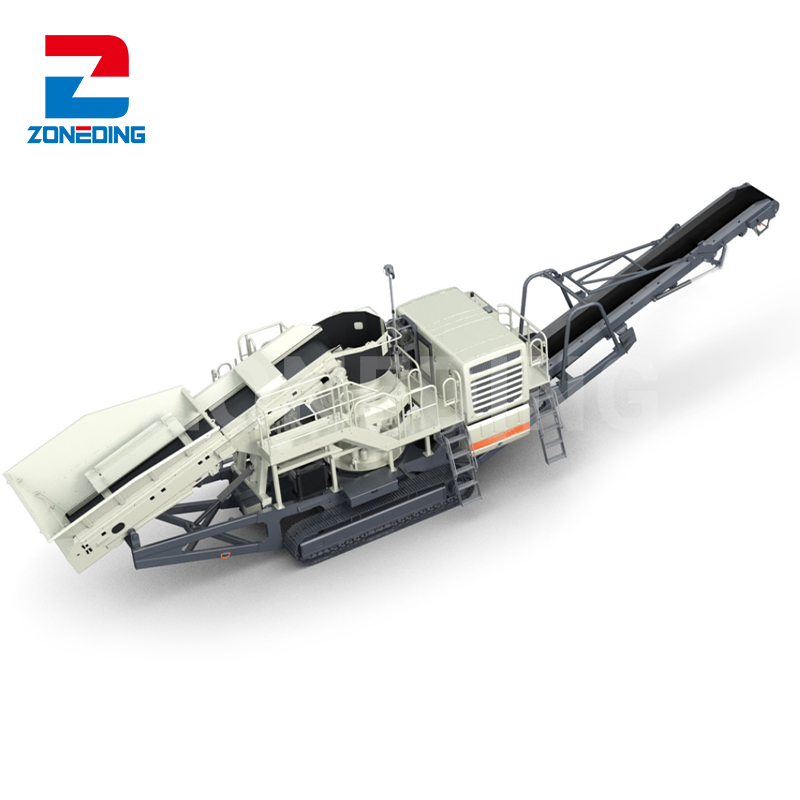

For Zoneding Heavy Industry, which has been established for more than 20 years, the R&D direction is guided by the needs of users. Therefore, Zoneding technicians can configure the equipment according to the user’s needs, and customize this crawler cone crusher mobile crushing plant for the user, such as customizing the appropriate cone crusher, vibrating screen, motor and other equipment in strict accordance with the actual situation of the production site, with large processing capacity and large production capacity. , high production efficiency, strong adaptability, etc.

Advantages of Crawler type mobile crushing plant

1. Integrated operation, which can eliminate the obstacles brought by the crushing site, environment and complex basic configuration to the customer’s crushing operation;
2. Add a recycling system and a detachable double-layer grading screen, no need to recycle or grade materials, which is more worry-free;
3. The crushing operation is driven by electricity, which saves energy costs and greatly reduces the maintenance cost of the hydraulic system;
4. It can be used in mines, coal mines, earthworks, urban infrastructure, roads, and construction sites, with a wide range of applications.

Applications of Crawler type mobile crushing plant

The tracked mobile crusher is widely used for medium and fine crushing (sand making) of various hard and brittle materials such as rocks, cement clinker, quartz stone, iron ore, abrasives, refractory materials, concrete aggregates, etc.

working principle of Crawler type mobile crushing plant

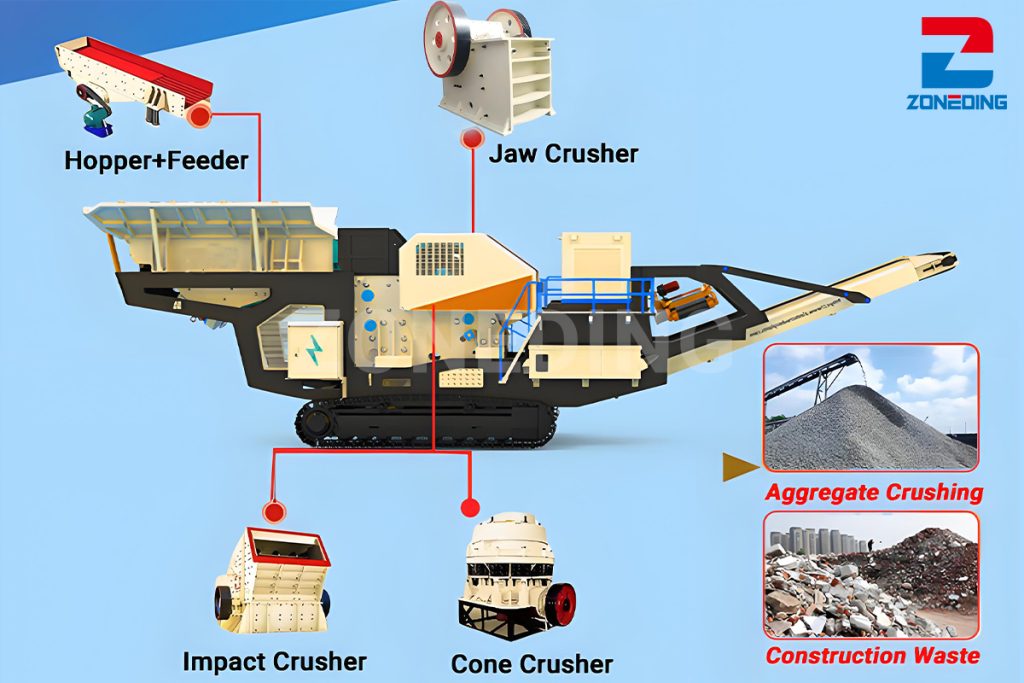

When the mobile crush and screen plant works, the material by the feeder goes evenly to the jaw crusher. After primary crushing by the jaw crusher, the stone goes to the vibrating screen by the main belt conveyor. During the screening, the first layer of unqualified material goes into the secondary crusher to break. The qualified materials from other screen layers are discharged to the finished material area. The output from the secondary crusher is discharged to the main belt conveyor for further screening too. Thus, the material is in the circulation system of crushing-screening-crushing. The finished material could meet the final demand greatly.

Technical Parameter

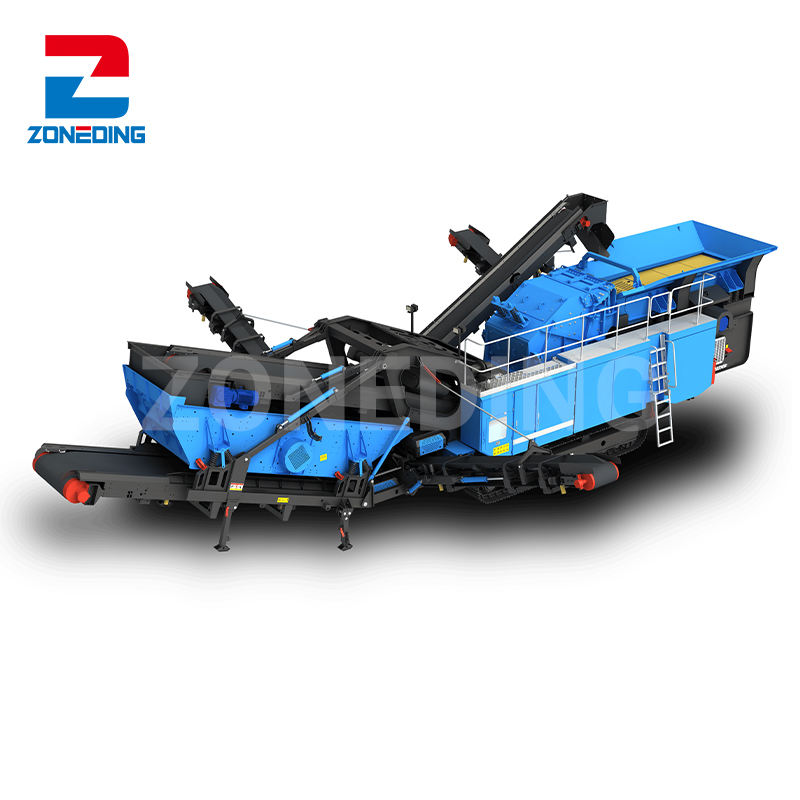

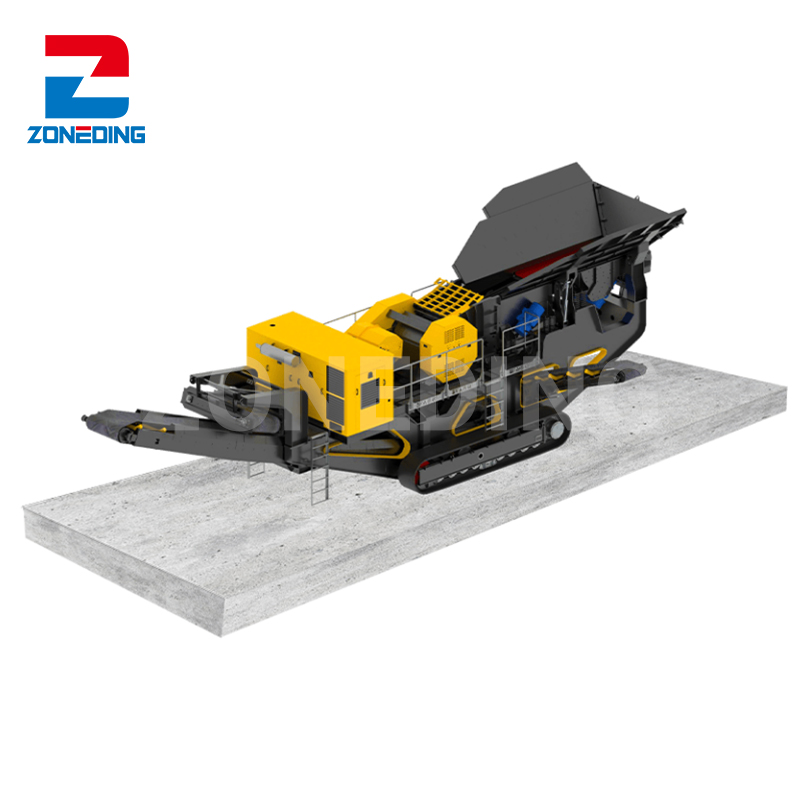

Crawler-type mobile primary shredding station
model	Device configuration	Adjustable Drain Range (mm)	Capacity (t/h)	Transport Dimensions (mm)
Model SE69L	ZSW3896+PE69	60-125	100-180	Approx. 12500 x 2950 x 3000
SC96L	ZSW3896+SC96	60-175	120-455	13500 x 3400 x 2800
SC106L	ZSW4211+SC106	70-200	155-580	14400 x 3600 x 3000
Crawler mobile secondary and tertiary crushing plant
model	Device configuration	Minimum drain (mm)	Processing capacity (t/h)	Transmission size (mm)
SH43L	ZP100+SH430	≤25	63- 305	Approx. 13000 x 2800 x 3420
SH300L	ZP1000+SHP300系列	≤45	120- 445	Approx. 14800 x 3000 x 3700

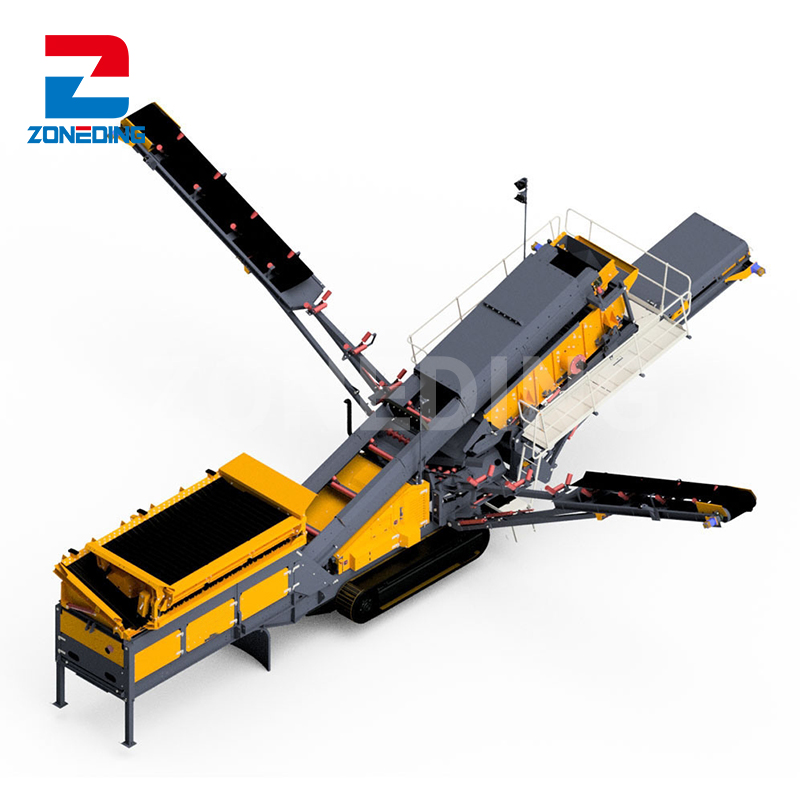

Crawler mobile screening equipment
model	Device configuration	Maximum feed size (mm)	Mesh size (mm)	Processing capacity (t/h)
S5X18L	5X1860	400	5-80	75-600
S5X21L	5X2160	400	5-80	85-700

Customer Site

After-sales service

Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly.
Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills.
Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free.
Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner.
Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
