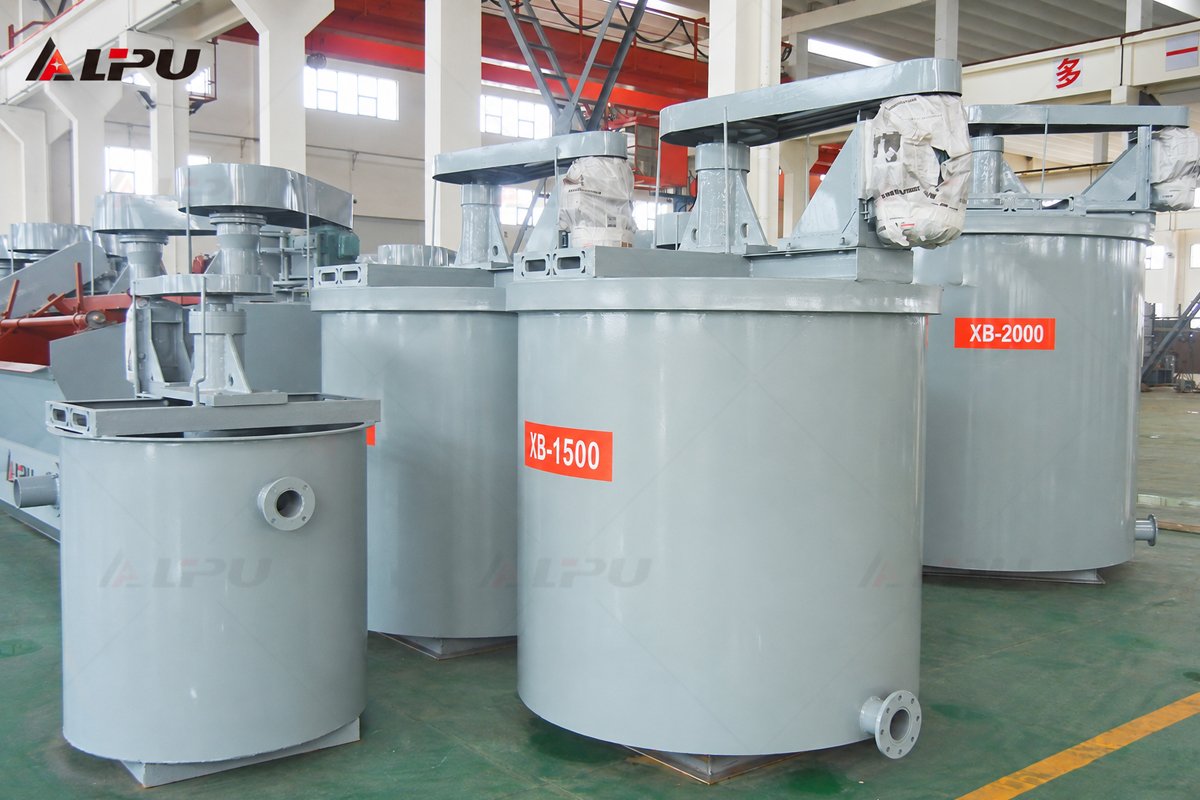

A mining mixing tank, also called an agitator tank or mining mixer, is a mineral mixing tank with an agitator mixer.
Speed: 230-530 r/min
Capacity: 0.58-30 m³
Application: Mining mixing operations in mineral processing, leaching plants, and various chemical industries; especially suitable for mixing and stirring powdery, granular, and small materials with low controllability, such as building materials, cement, stones, sand, and clay , ores, minerals, etc.
A mining mixing tank, also called an agitator tank or mining mixer, is a mineral mixing tank with an agitator mixer. Its task is to stir, mix and homogenize the slurry and chemicals thoroughly. It is often used as mixing equipment before the flotation or leaching process; it can also mix and stir various minerals, such as gold, silver, copper, iron, lead, zinc, aluminum and limestone, gypsum, and sulfide ores. This equipment generates turbulence or agitation mechanically or pneumatically, which prevents the slurry from settling or stratifying, resulting in a high-quality finished product. Our mineral mixing tanks facilitate optimization to increase mineral extraction and recovery rates.
Applicable Materials

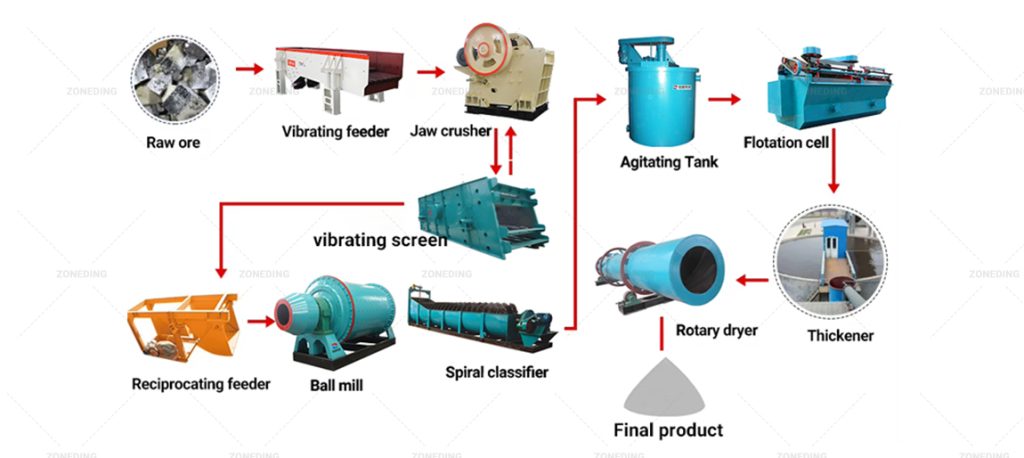

Agitation tank is mainly applied in slurry stirring before the flotation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.

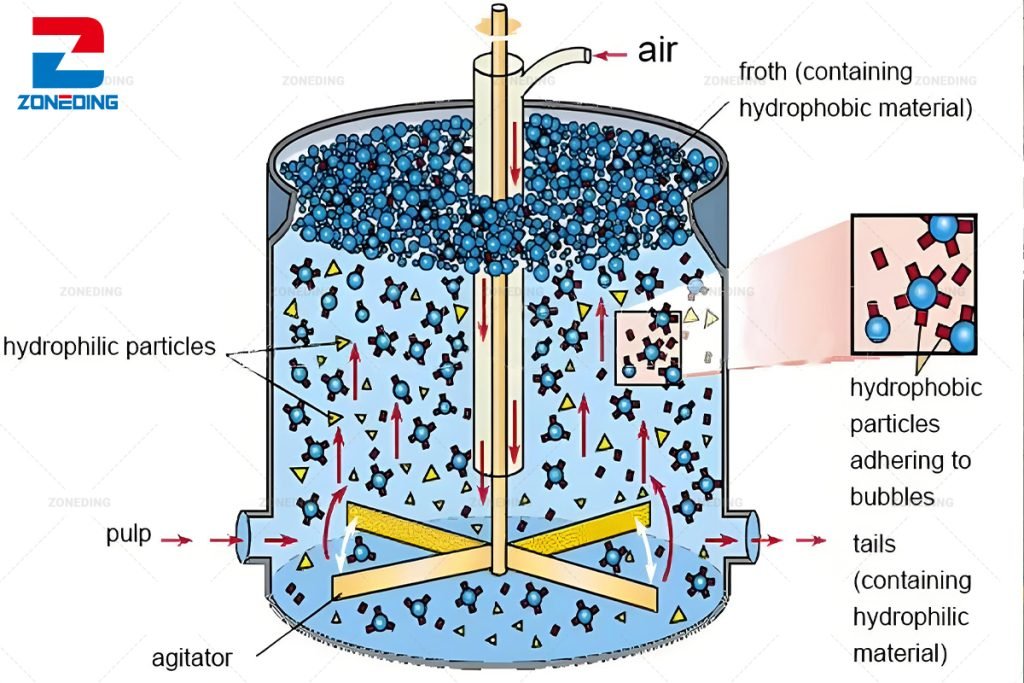

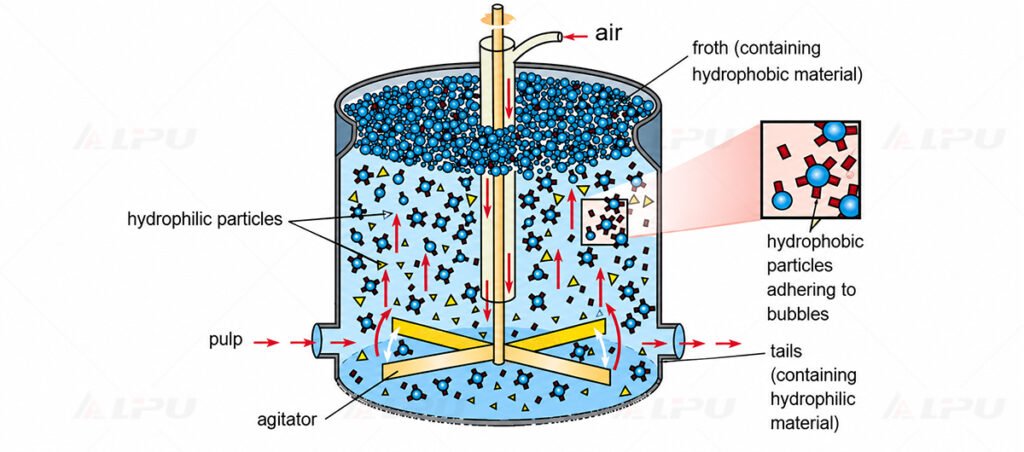

Working Principle Of Mining Mixing Tank
The mining mixing tank comprises a rotating cylinder, lining plate, agitator, transmission system and discharge port. First, the ground ore is mixed into a slurry by adding water and necessary chemicals through the stirring tank, then poured into the slurry tank where the stirring begins. When the mixing tank works, the motor pulls the V-belt transmission device to drive the impeller to rotate. The slurry and the agent are mixed under the uniform stirring action of the impeller, which increases the reaction time of the agent to the slurry. Then, the mixed ore pulp is discharged from the discharge port for use in subsequent process steps.
Advantages Of Mining Mixing Tank
The mineral mixing tank has a compact structure and good sealing, which effectively prevents debris and dust from entering;
mining mixing tank is made of high-strength steel, which can withstand high-intensity use and chemical corrosion, wear-resistant and has a long service life.
The blades in this mixing equipment are fan-shaped and have a large contact area with the medium during mixing, thereby achieving uniform mixing of the materials;
Our mining agitator mixing equipment has advanced performance, stable product quality and rapid discharging, which is convenient and time-saving.

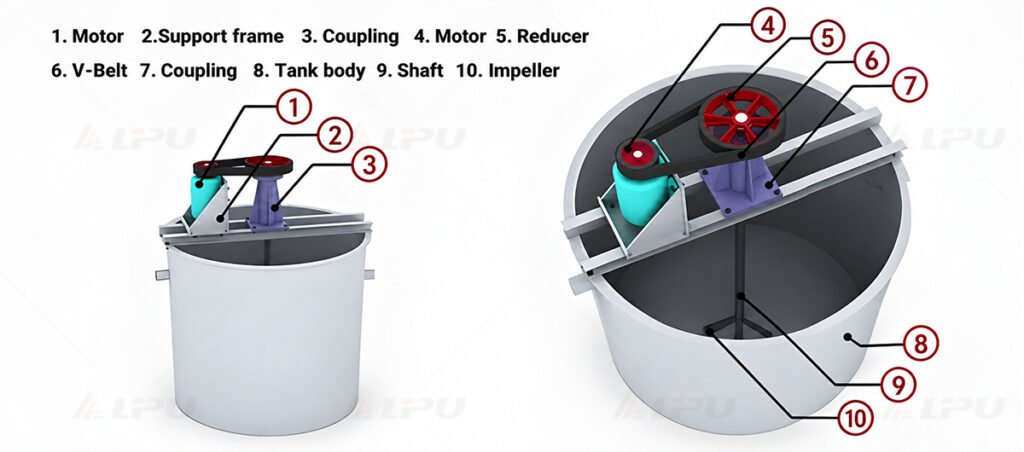

Structure

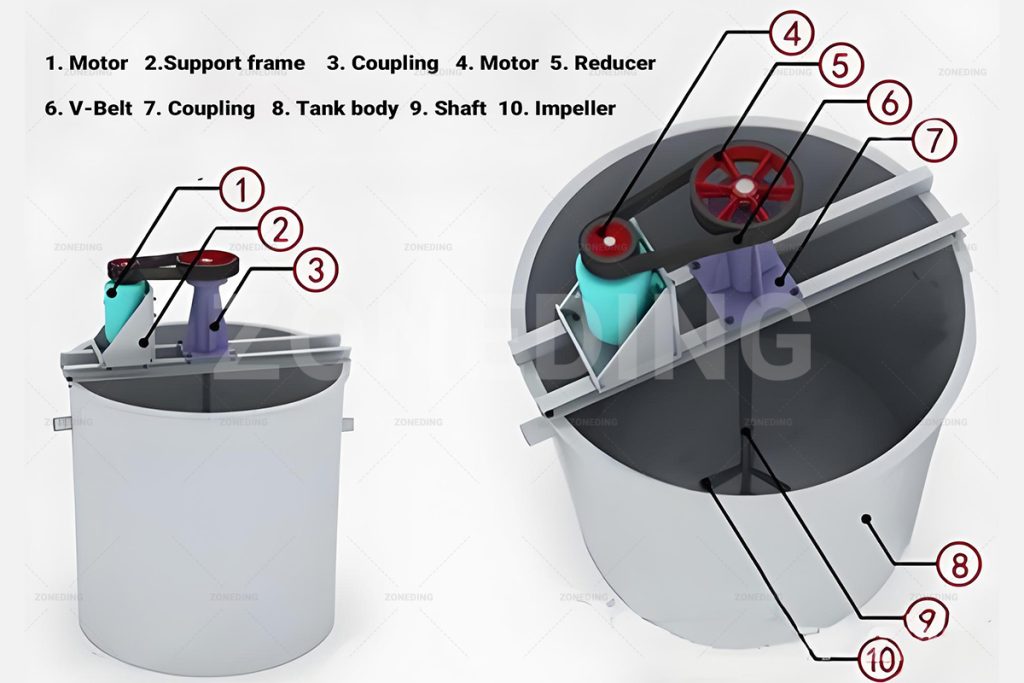

Mining Mixing Tank mainly consists of wear-resistant tank, mixing device, inlet and outlet, support structure and auxiliary safety devices to achieve uniform mixing of materials and safe and stable operation.

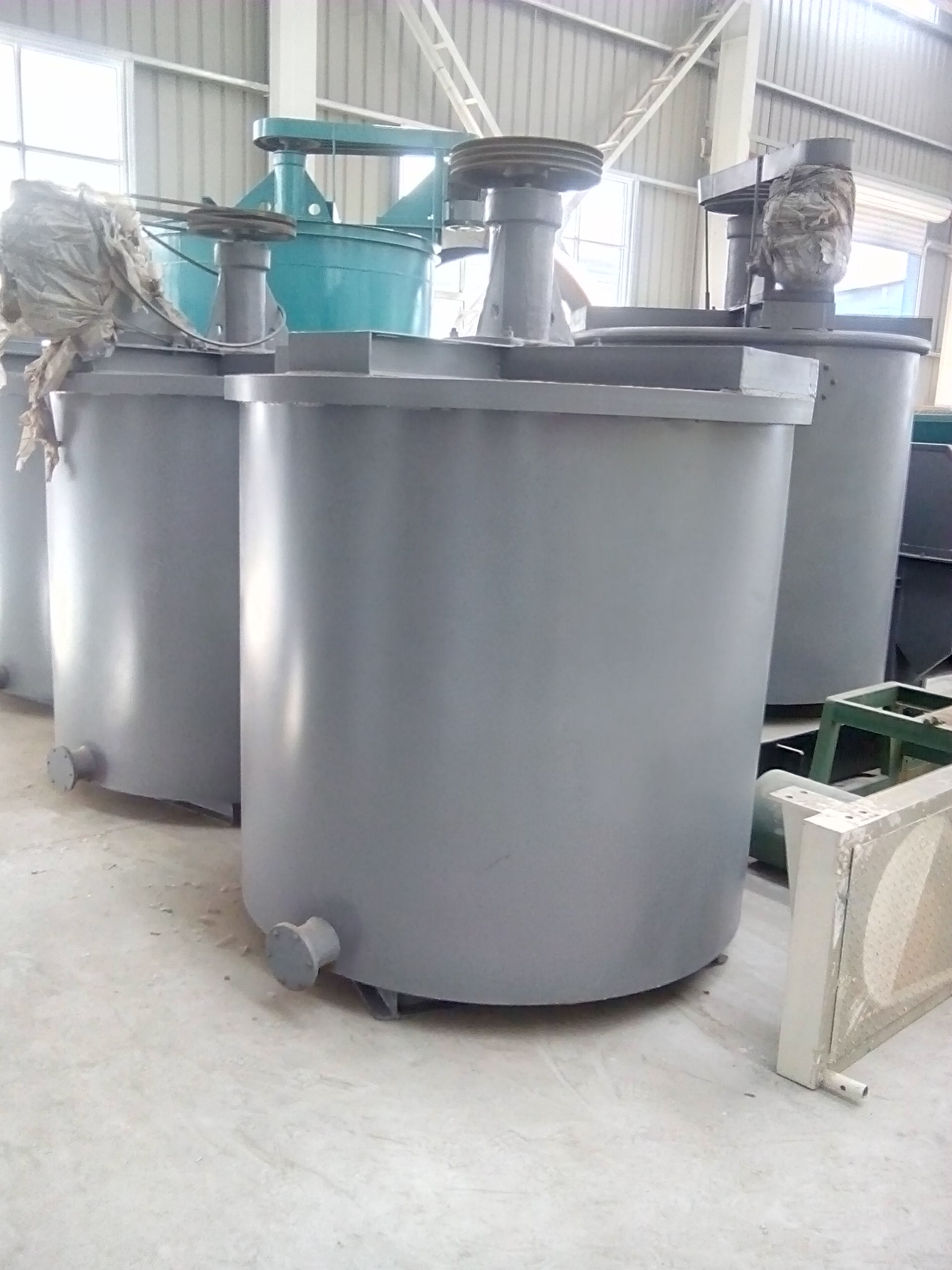

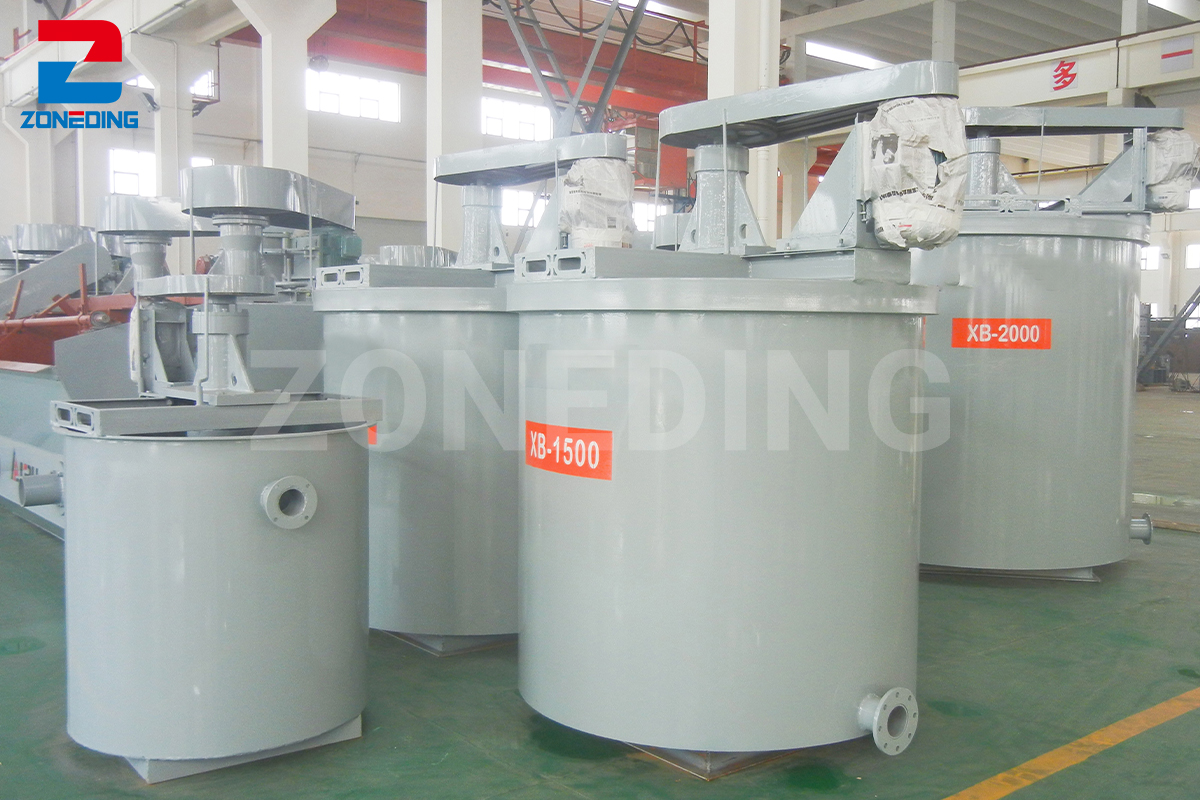

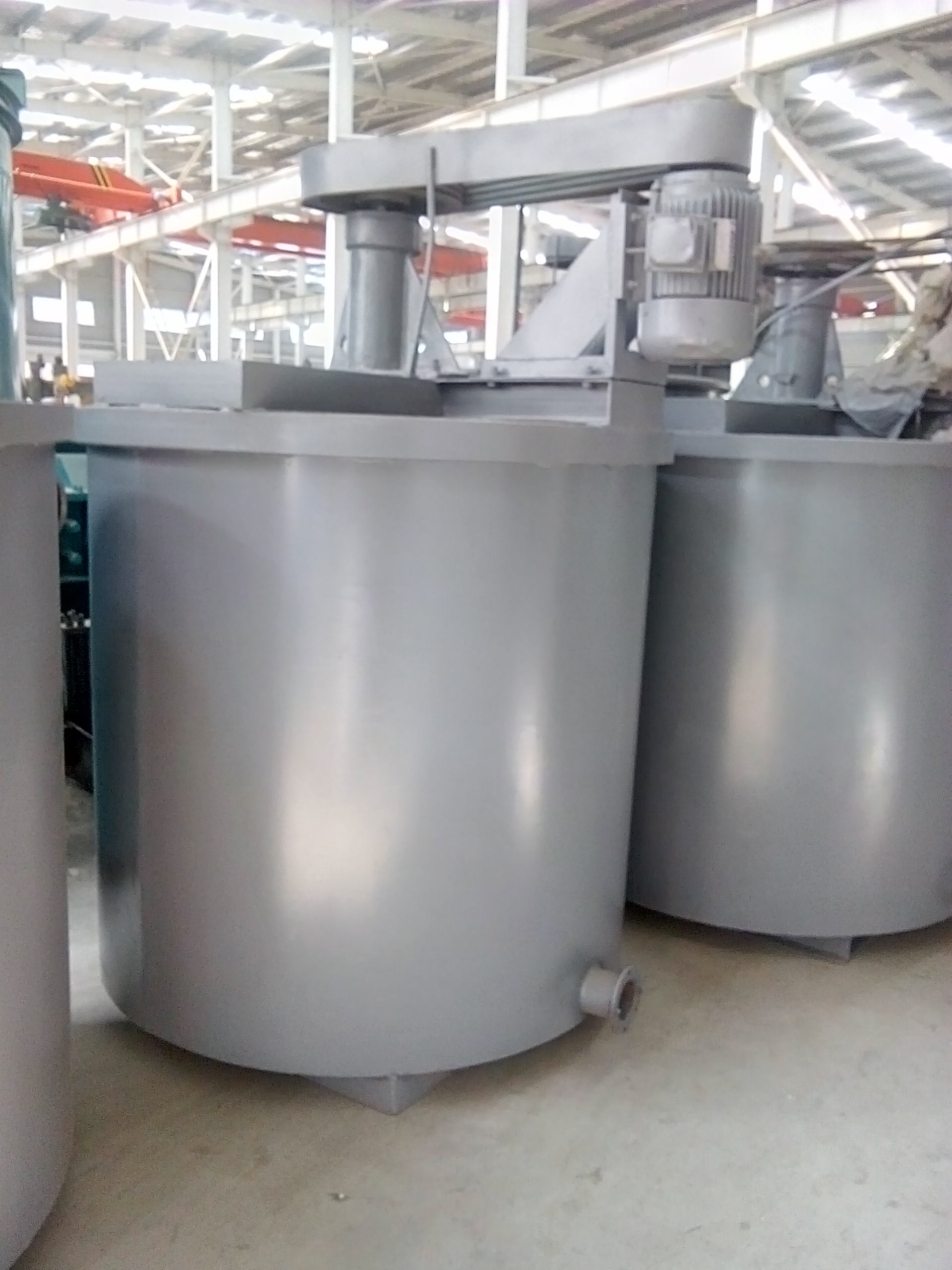

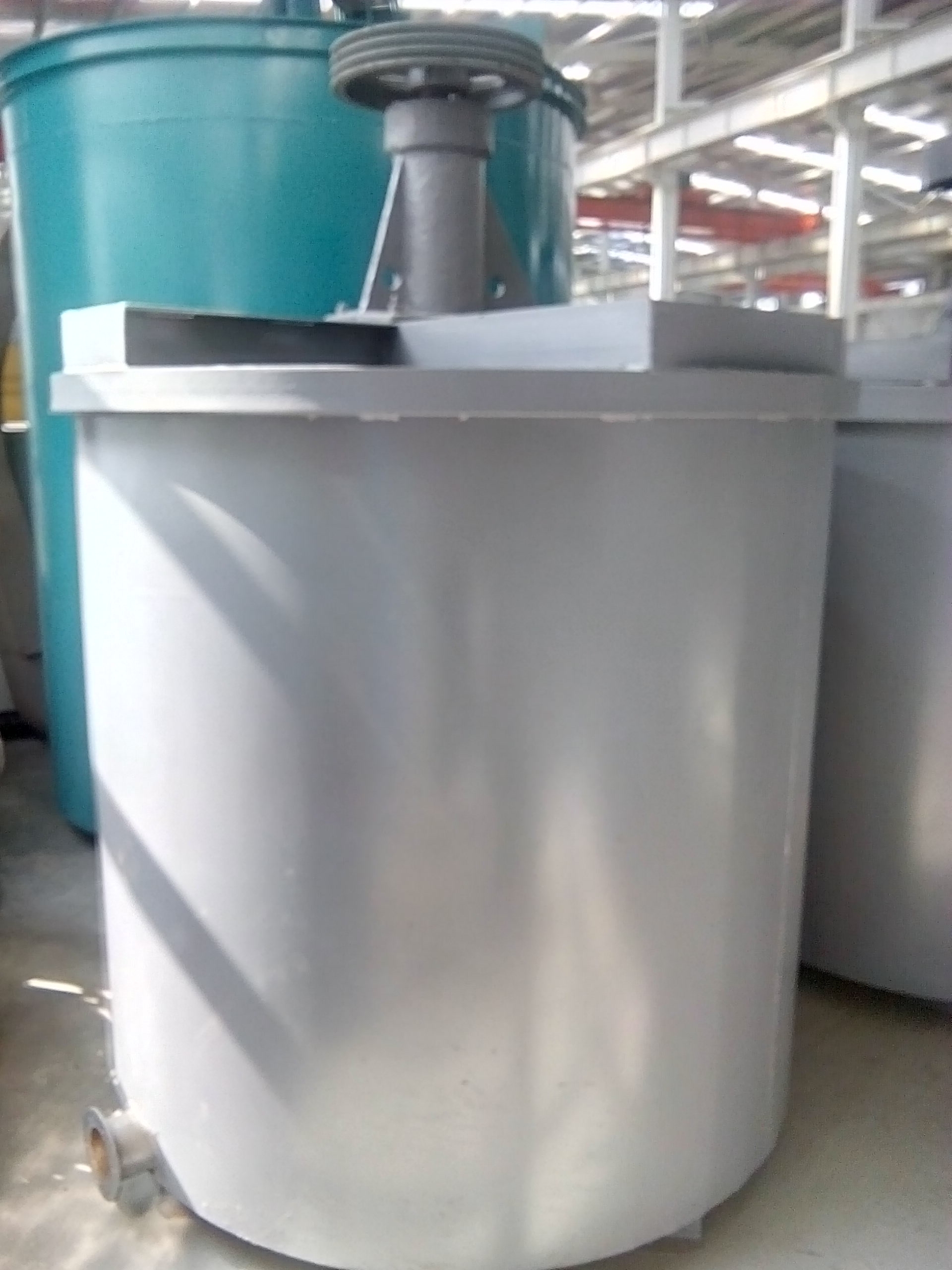

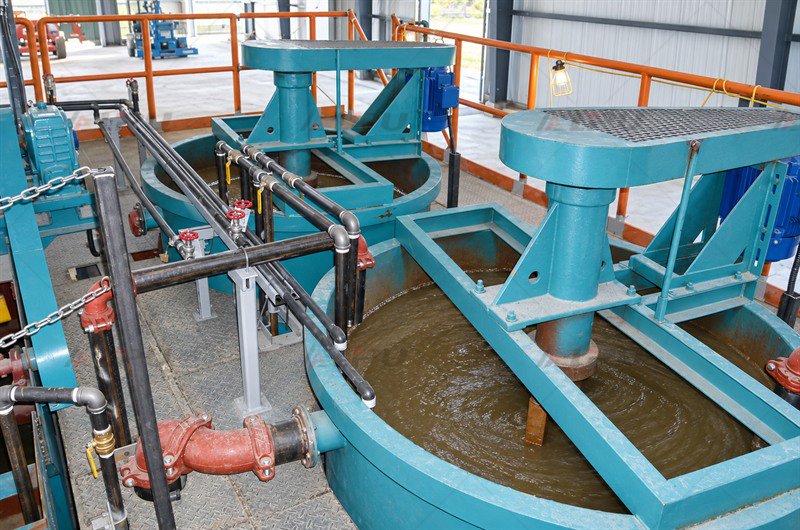

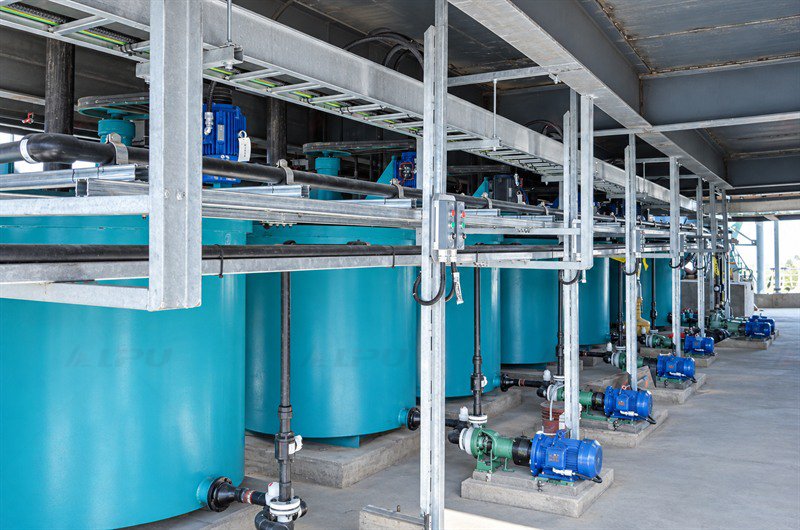

Customer site
Specification
Mining Mixing Tank
Model
Capacity
(t/h)
Max length
(m)
Belt width
(mm)
Speed
(m/s)
Upper slope
(°)
Power
(kw)
Drum dia
(mm)
Roller Dia
(mm)
DT75-500
87
20
500
1
<20
5.5
500
89
DT75-650
127
20
650
1
<20
7.5
500
89
DT75-800
198
15
800
1
<20
7.5
630
89
DT75-1000
507
20
1000
1.25
<20
11
800
108
DT75-1200
742
20
1200
1.25
<20
15
1000
108
DT75-1400
1032
30
1400
1.25
<20
22
1000
133
After-sales service
Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly. Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills. Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free. Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner. Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
