The jig concentrator is widely used to beneficiate tungsten, tin, gold, diamond, gemstone, hematite, limonite, manganese, titanium, antimony, lead-zinc, tantalum, niobium, etc.

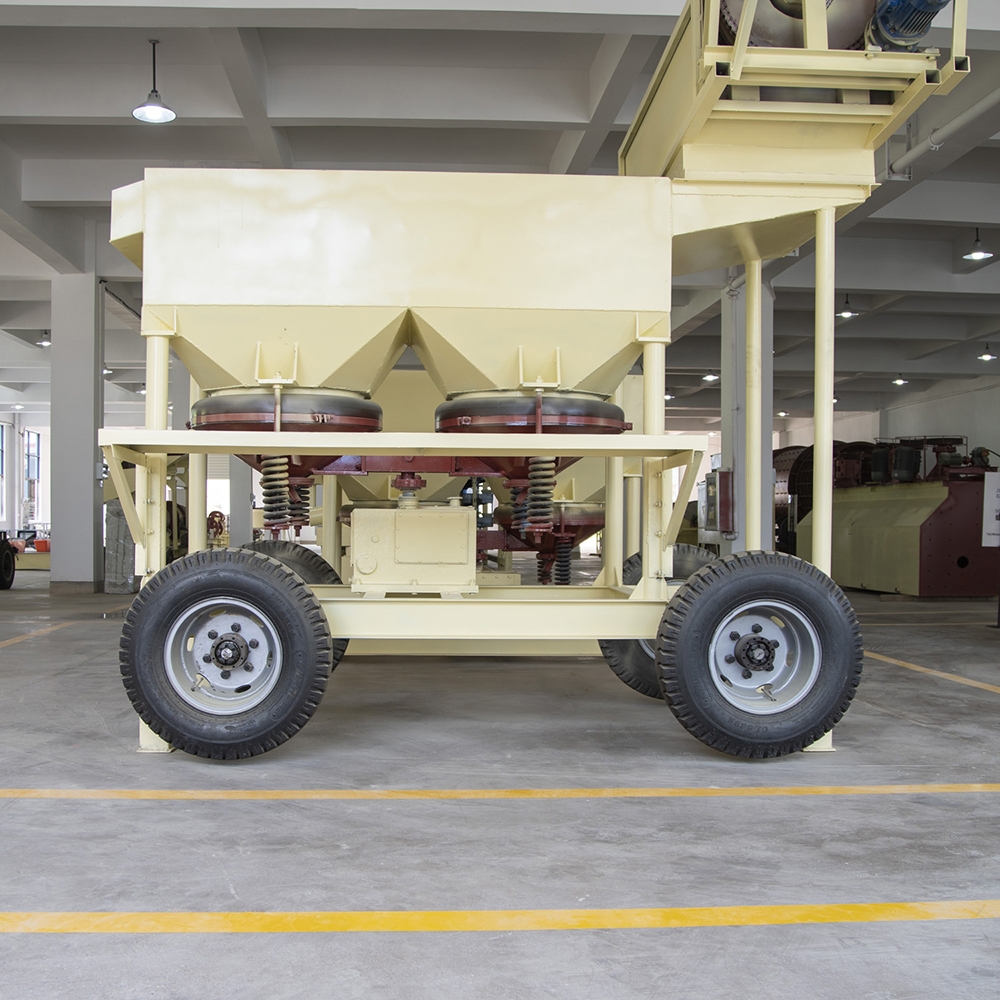

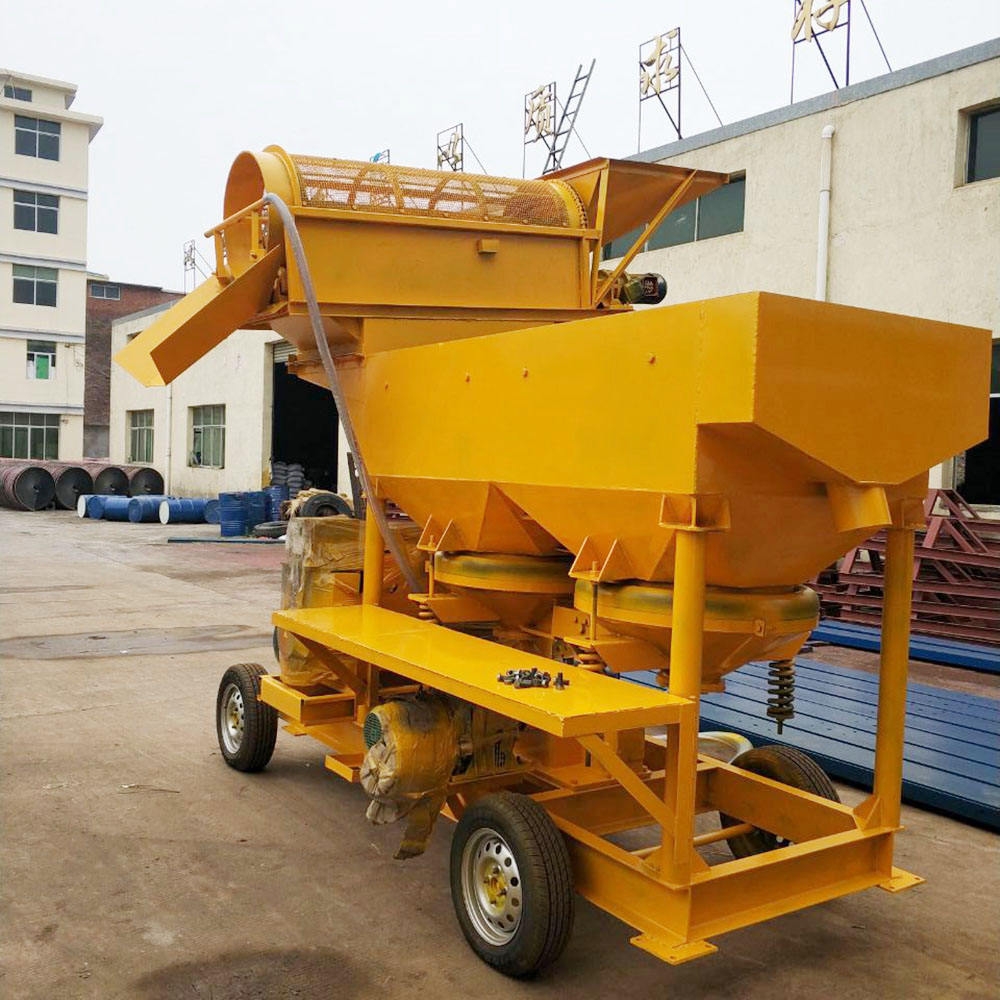

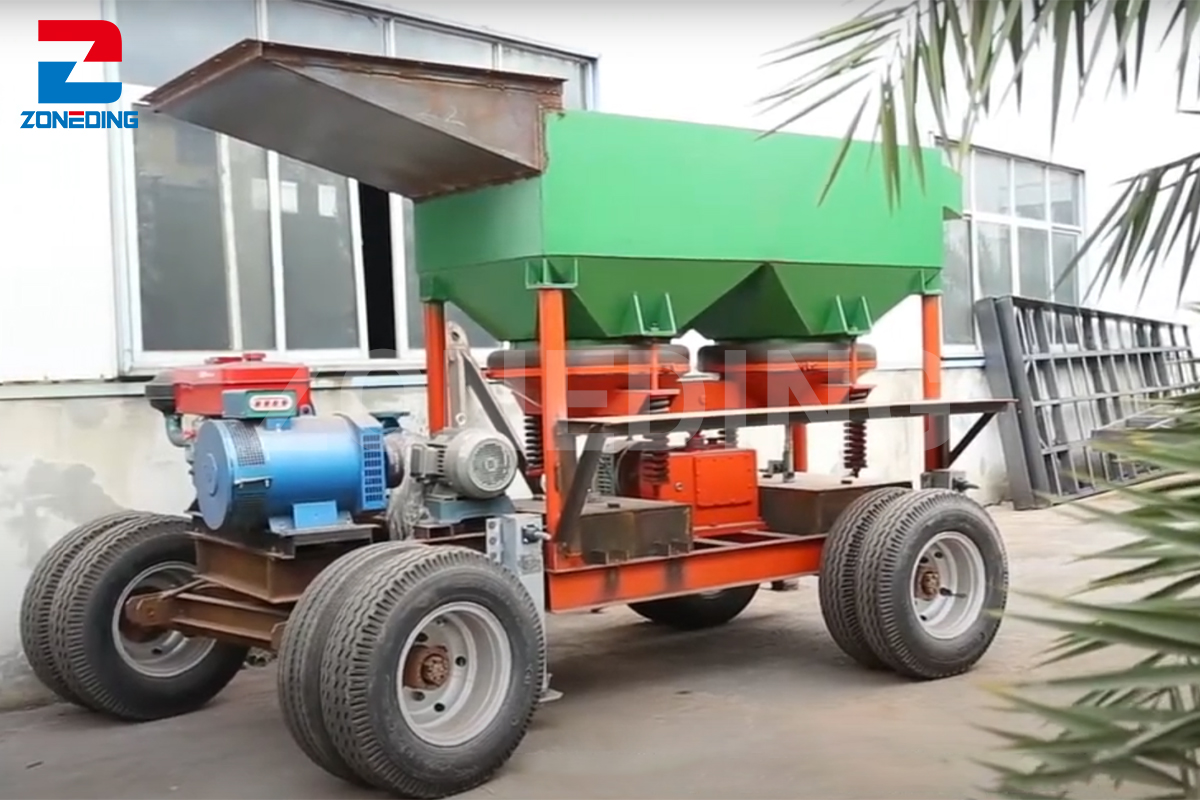

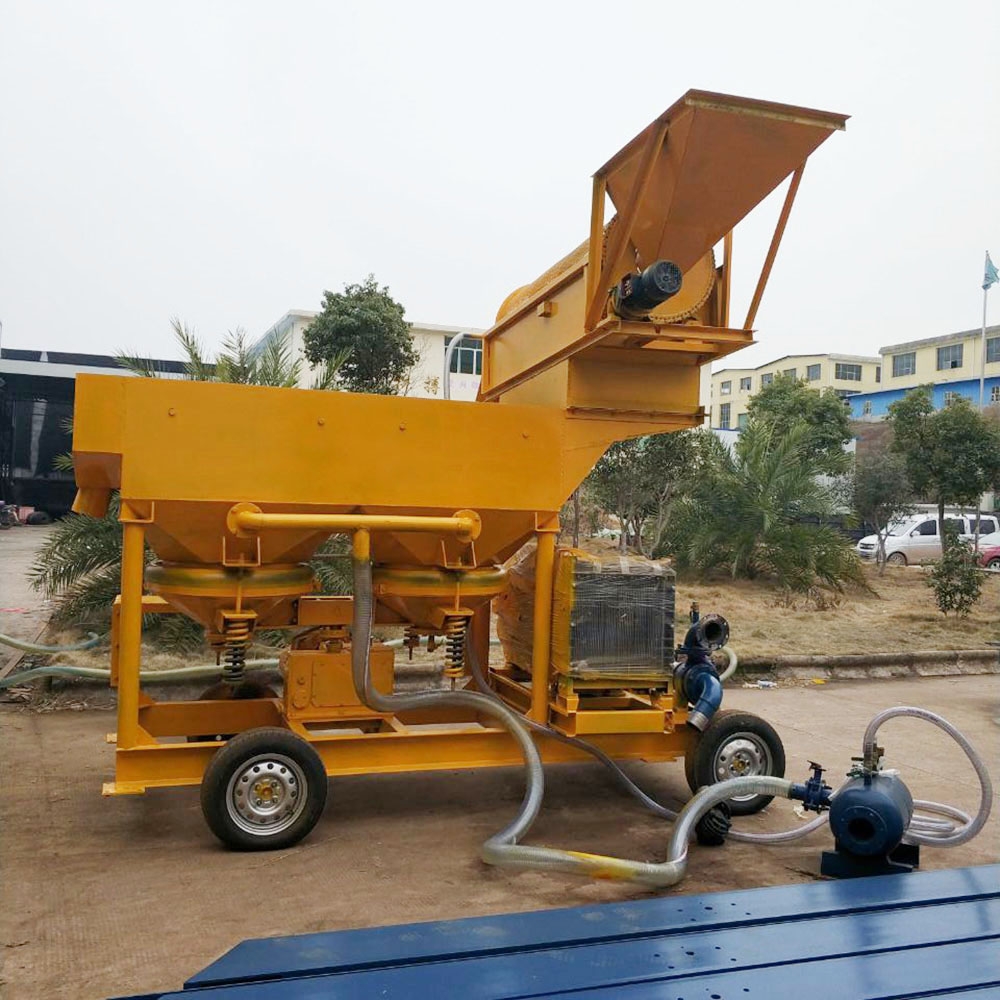

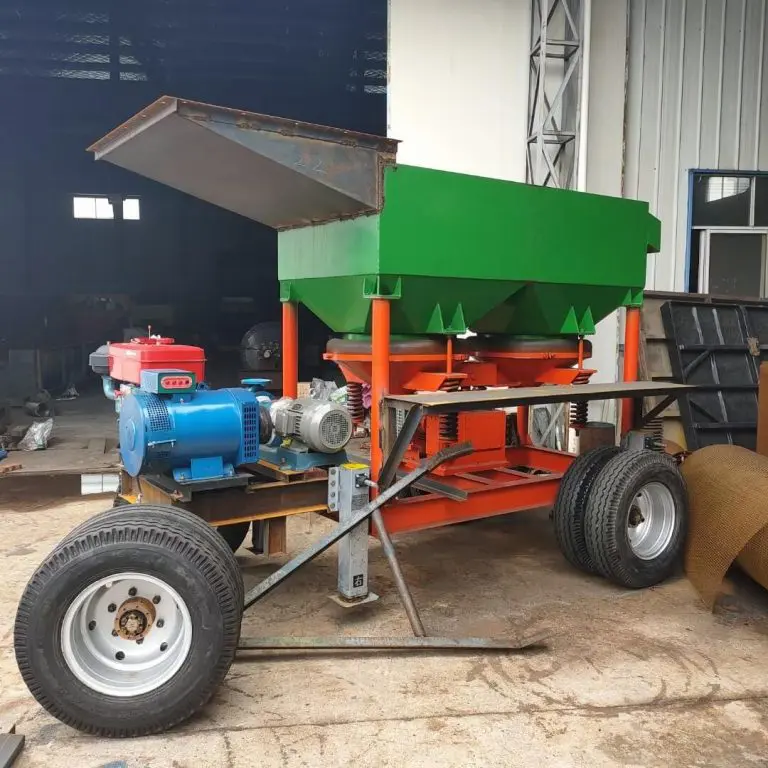

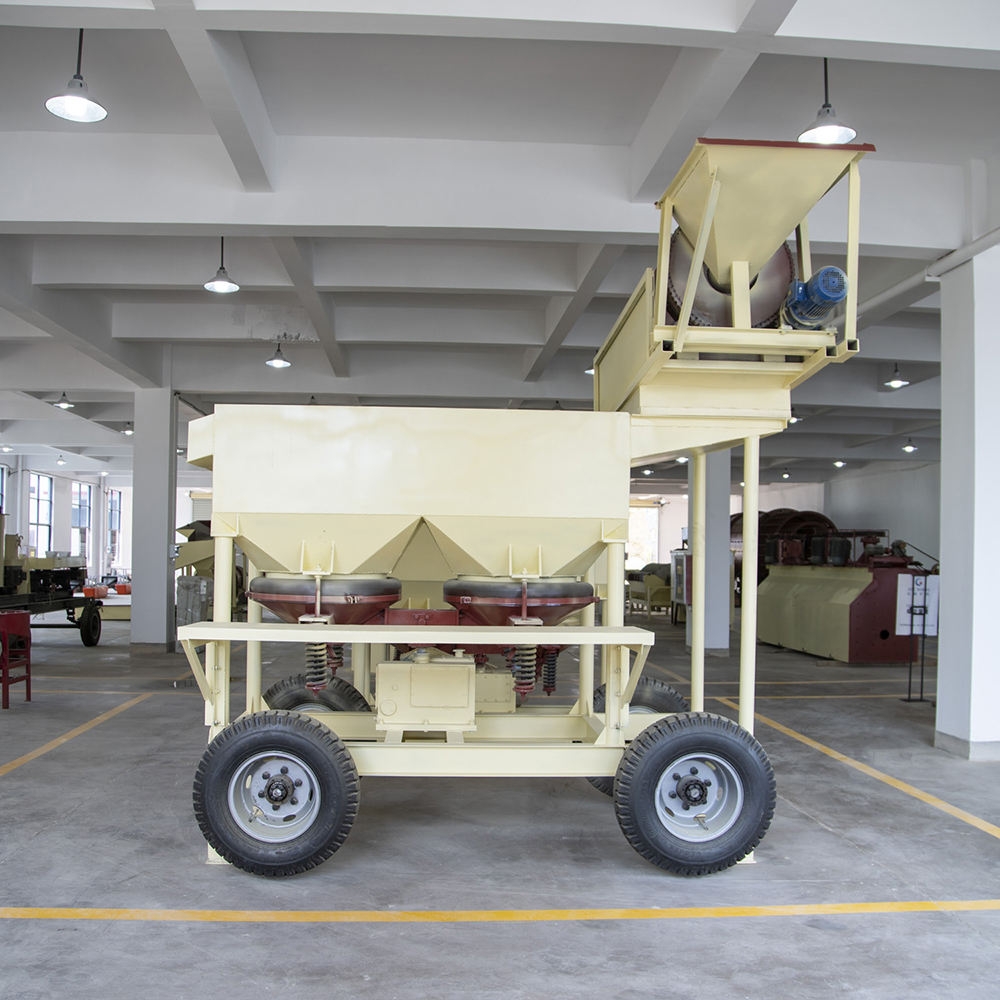

Mobile jig concentrator also called portable jig separator, is one of gravity separation equipment. It is a deep groove sorting operation, that uses water as the beneficiation medium and uses the difference in the specific gravity of the selected minerals to the gangue for sorting.

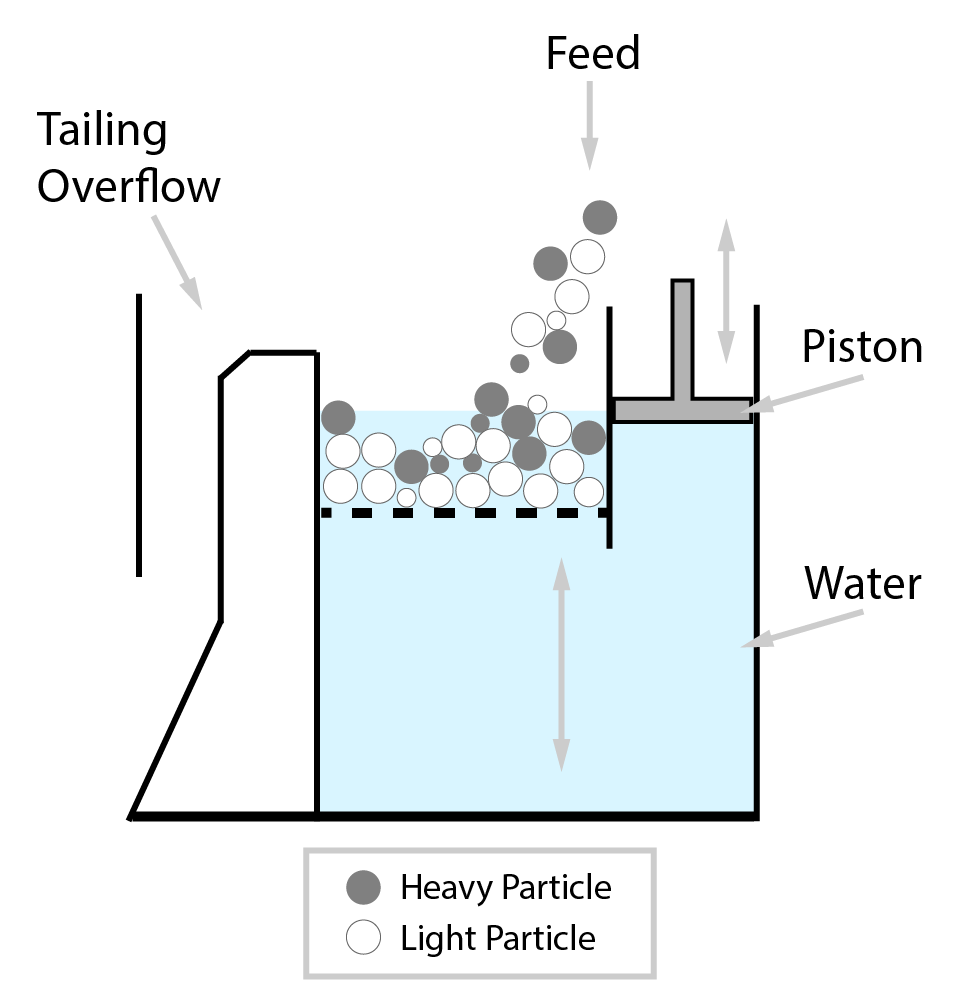

The mixture of mineral particles of different specific gravities is layered by specific gravity in a vertically moving variable-speed medium flow (water or air). The ore particles with a small specific gravity are located in the upper layer, and the larger ore particles are located in the lower layer, and then they are separated into products of different specific gravity by mechanical action and water flow, and are respectively discharged.

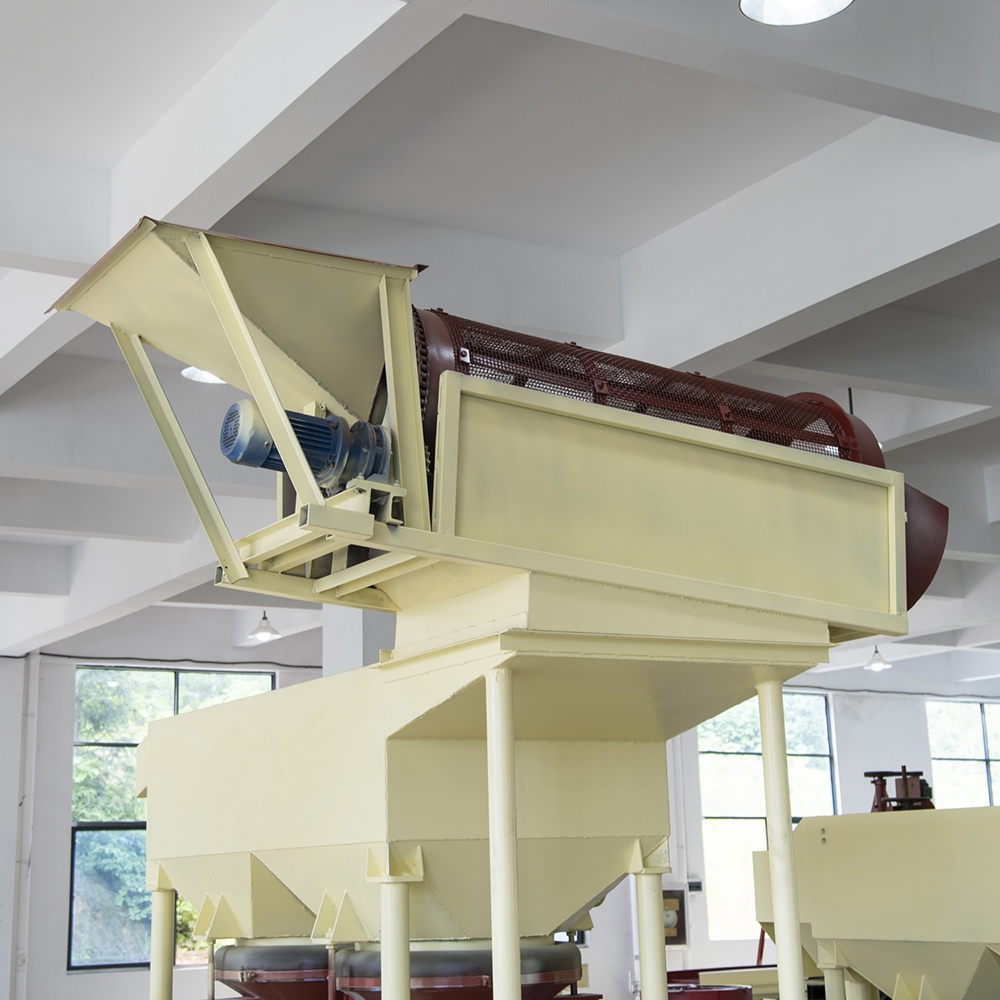

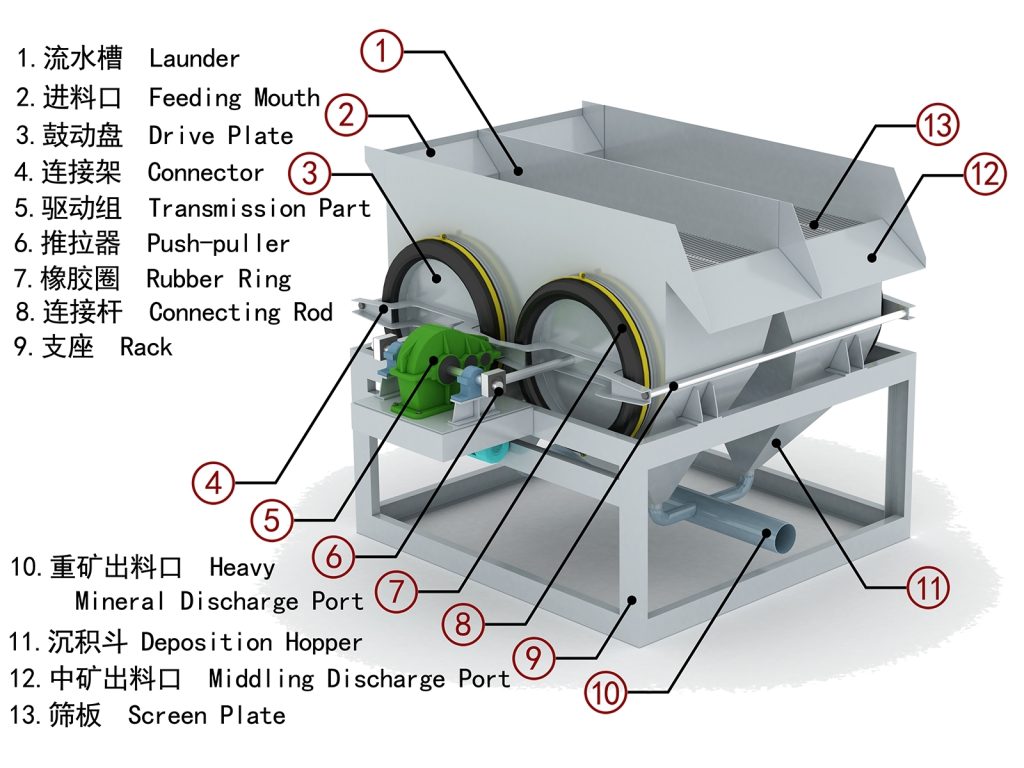

Mobile Jig Concentrator mainly consists of mobile chassis, feeding system, jigging chamber, water flow system, discharge system and power transmission part.
| Model | Jig Area (M2) | Stroke (R/Min) | Feeding size (mm) | Hutch Water ( T/H) | Pressure Water (kg/cm2) | Capacity;(T/H) | Power;(KW) | Overall dimensions (mm) | Weight (T) |
| JT0.57-1 | 0.57 | 60-160 | <6 | 1-2 | ≥0.3 | 1-2.5 | 1.5 | 1560x820x1550 | 0.612 |
| JT1-1 | 1.04 | 60-160 | <10 | 2-3 | ≥0.3 | 4-10 | 2.2 | 1322x1190x1915 | 0.9 |
| JT2-2 | 2.28 | 60-160 | <10 | 2-4 | ≥0.3 | 8-15 | 3 | 3225x1550x2150 | 1.637 |
| JT4-2 | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 7.5 | 4240x1990x2750 | 4.6 |
| JT4-2A | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 8 | 4240x1990x2750 | 4.6 |
| JT5-2 | 4.86 | 80-120 | <10 | 4-10 | ≥0.1 | 10-20 | 7.5 | 3940x2006x2580 | 4.6 |
Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly.
Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills.
Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free.
Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner.
Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
