River sand dryer is a kind of sand dryer. River sand is a construction material primarily formed by the erosion and abrasion of river water, sourced from natural stones in riverbeds. It typically features a smooth surface with a considerable amount of impurities, yet its particles are round and relatively clean, exhibiting hues of gray-white or gray-yellow. The composition of river sand is intricate, comprising fine sand, medium-coarse sand, coarse sand, as well as sand and gravel. In the construction industry, river sand has extensive applications, commonly used in preparing concrete, cementitious materials, road-building materials, and artificial marble. Additionally, river sand can also serve as an additive in areas such as casting, metallurgy, and heat treatment to enhance material wear resistance and high-temperature durability.

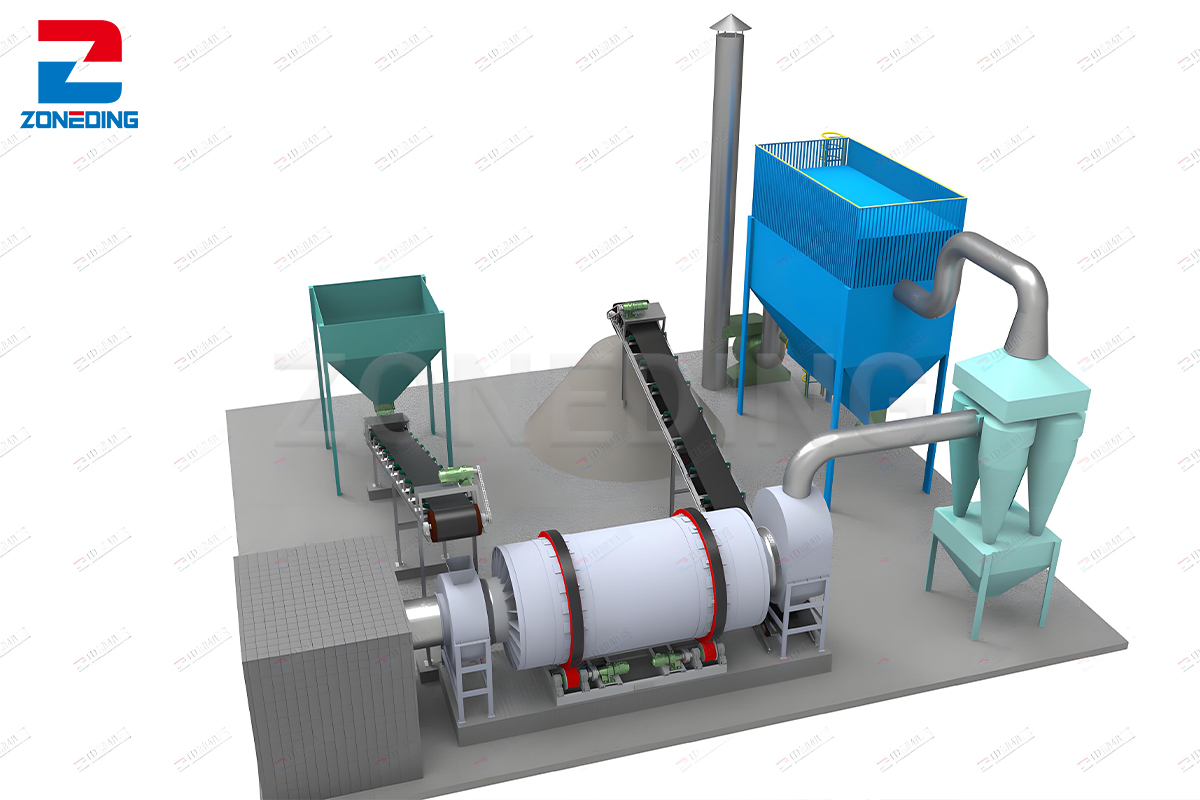

Working Principle of Sand Drying Equipment

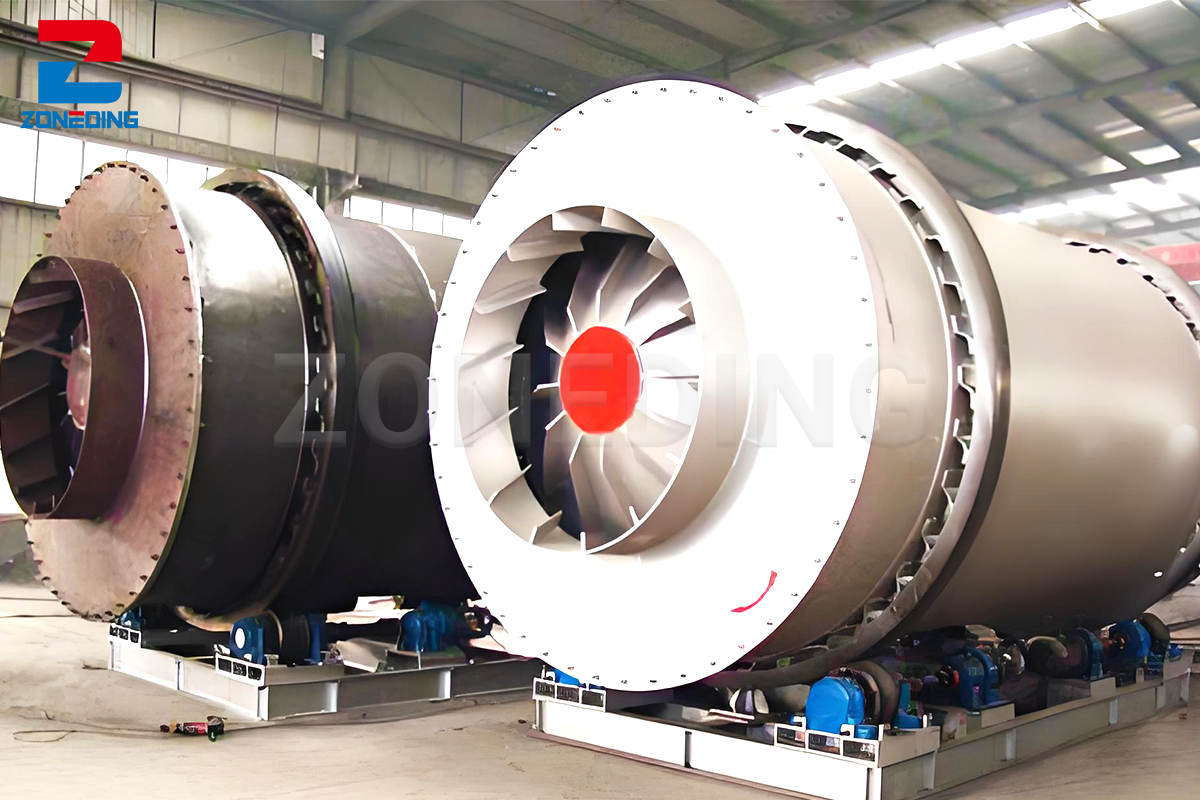

The river sand dryer is based on the technology foundation of ZONGDING’s triple pass rotary dryer and is the third generation of three-cylinder dryers developed with European technology. This river sand rotary dryer consists of three concentric cylinders of different diameters, nested and combined according to specific mathematical relationships and structural forms. Guided by the principle of thermal power, the cylinder is equipped with lifting boards and guiding boards at different angles and intervals, ensuring that the dried materials move in a spiral manner inside the cylinder. With adequate residence time and sufficient dispersion, they undergo thorough heat exchange with the hot air from the combustion chamber, eliminating drawbacks such as small heat exchange area and low evaporation intensity per unit volume found in conventional drying equipment.
The unique triple-cylinder structure of the river sand dryer forms its own insulation system, with the inner and middle cylinders surrounded by the outer cylinder. The heat emitted from the surfaces of the inner and middle cylinders contributes to the heat exchange within the outer cylinder’s materials. Additionally, as the outer cylinder is positioned at the low-temperature end of the hot air flow, it significantly reduces the heat dissipation area and thermal energy loss of the cylinder.
The energy-saving river rotary sand dryer fully utilizes residual heat, reducing heat dissipation loss and increasing heat exchange area, thereby significantly improving the unit volume evaporation intensity of the dryer. This effectively enhances the thermal energy utilization rate and reduces energy consumption. Due to its unique structure, the length of the cylinder of the river sand rotary dryer is only one-third of that of a single-cylinder dryer, resulting in approximately 65% savings in basic area, thus reducing initial investment costs.
In cases where the raw material exhibits higher moisture content, our sand dryer performs exceptionally well. The sand dryer can dry sand with an initial moisture content of up to 30% to a moisture content of less than 1%, effectively removing moisture and ensuring the quality and stability of the sand. This not only aids in cost savings in production but also enhances the competitiveness of the product in the market.
Our company is committed to providing comprehensive services and support to our customers. In addition to offering high-quality dryer products, we also have a professional design team capable of providing customers with free design of sand drying production line processes, tailoring the most suitable production solutions for them. Furthermore, we undertake turnkey projects, providing customers with one-stop services from equipment installation to commissioning, ensuring smooth production start-up and achievement of production goals.
If you have any questions or requirements regarding our products or services, please feel free to send us an inquiry at any time. We are dedicated to providing you with more comprehensive and detailed information and guidance, working together to create a better future.
General Specification
River Sand Dryer Machine
Model(m)
Volume of equipment(m³)
Cylinder processing thickness(mm)
Power(kw)
Capacity(t/h)
Weight(t)
Ф1.6×2
4
8/6
4
1-2
5
Ф2×3
9.5
8/8
5.5
3-5
6.5
Ф2×4
13
8/8
7.5
4-6
7.3
Ф2×5
16
8/8
5.5×2
5-7
8.3
Ф2×6
19
8/8
5.5×2
7-9
9.8
Ф2.5×4
20
10/10
5.5×2
8-12
11.5
Ф2.5×5
25
10/10
5.5X4
10-14
14.5
Ф2.5×6
30
10/10
5.5X4
13-18
17.5
Ф2.8×6
40
10/14
5.5X4
16-26
27
Ф2.8×7.5
50
10/14
5.5X4
20-32
32
Ф3×6
55
12/14
7.5×4
30-35
34.5
Ф3×8
65
12/14
7.5×4
35-40
41.5
Ф3.2×6
70
14/16
11×4
40-50
46.5
Ф3.2×8
90
14/16
11×4
50-60
49.5
Ф3.6×8
115
16/16
15×4
60-70
53.5
Ф3.6×10
135
16/16
15×4
70-80
57.5

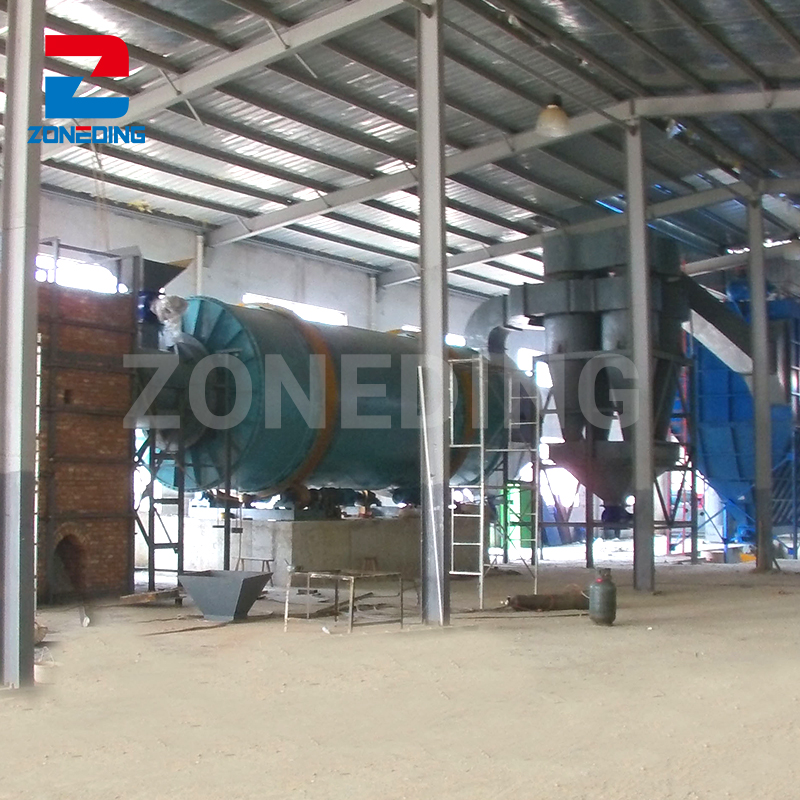

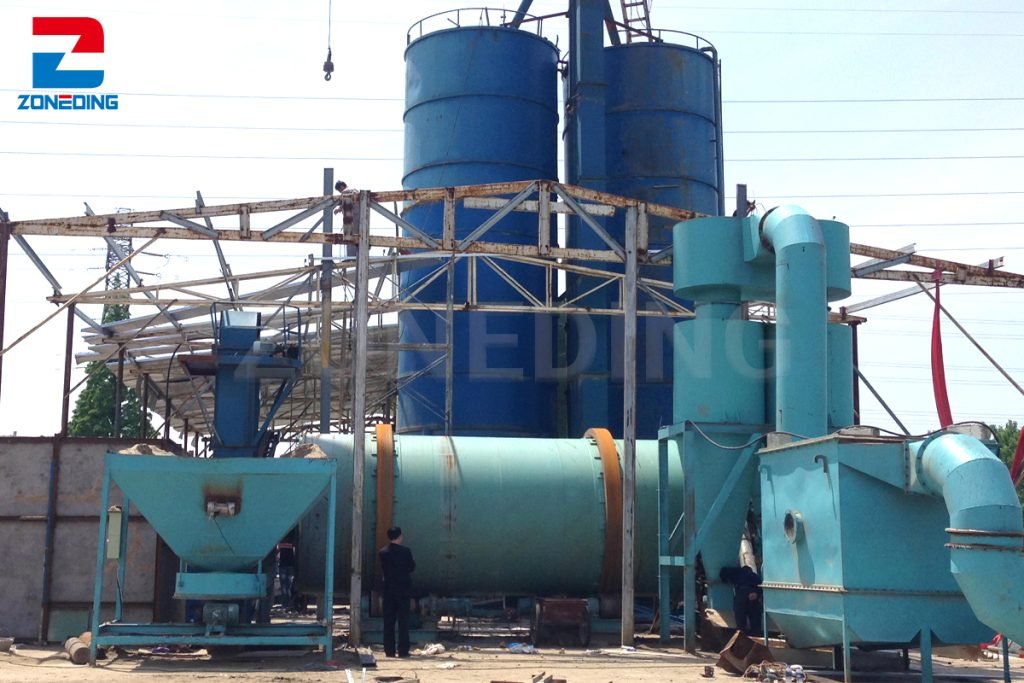

Customer Site
Trusted Sand Dryer Manufacturer——Zoneding
Zoneding is your trusted manufacturer and designer of sand dryers. Over the years, we have accumulated rich experience in the industry, always committed to providing excellent product quality and premium customer service. At Zoneding, we understand the importance of product quality, so we rigorously control every production process to ensure that each piece of equipment meets the highest standards. Furthermore, we prioritize user experience. From manufacturing to delivery, and from installation to commissioning and after-sales service, we have a professional team to follow up on every step, ensuring your user experience is worry-free.
Our product range also includes grinding mills, crushers, conveyors, feeding machine as well as beneficiation equipment, fine sand recycling equipment etc,which are widely applied in electricity, metallurgy, mine and quarry ,wharf, granary, chemical industry. Zoneding can provide you with safe and reliable solutions. Choosing Zoneding means not only getting high-quality products but also experiencing our professional, meticulous, and attentive service. Let’s work together to create a better future!
