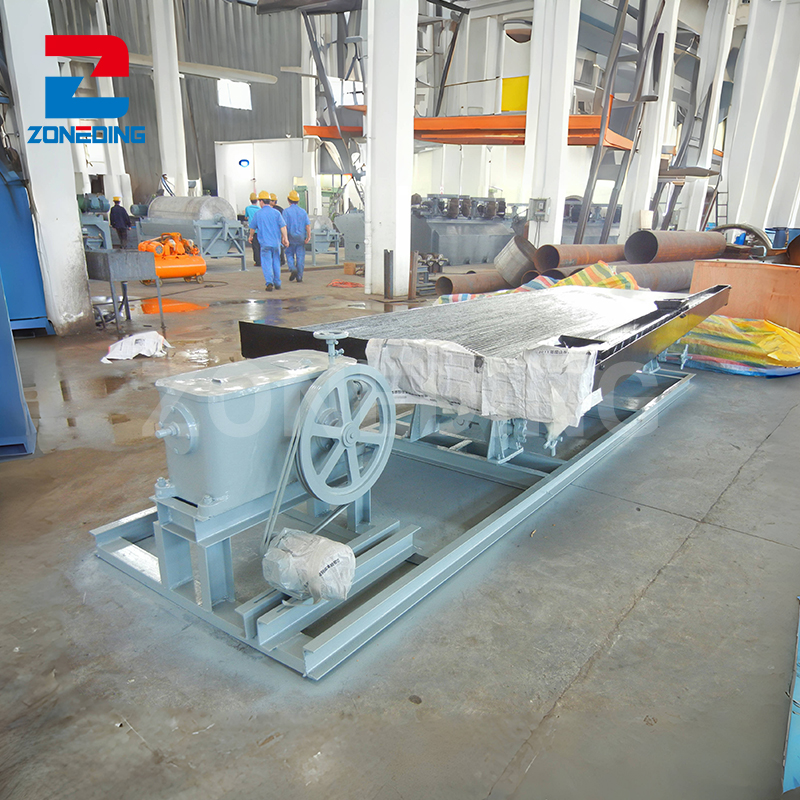

In gravity separation, the shaking tables (gravimetric tables, shaker tables) are the most widely used and efficient sorting equipment for fine ore separation.
Capacity: 10-20 t/d, Some model max capacity up to 60 t/d
Application: Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc.
Shaking table is a kind of gravity beneficiation equipment, which is mainly used for separating gold, silver, lead-zinc, tantalum-zinc, tin and other rare metal and precious metal ores. The role of shaking table is similar to centrifugal gold concentrator, belongs to alluvial gold washing ore dressing equipment, rarely used in alluvial gold ore roughing, mostly used in alluvial gold ore rough concentrate ore dressing and purification. It can extract high purity gold.
Shaking Tables Principle
Working Principle Of Shaking Tables

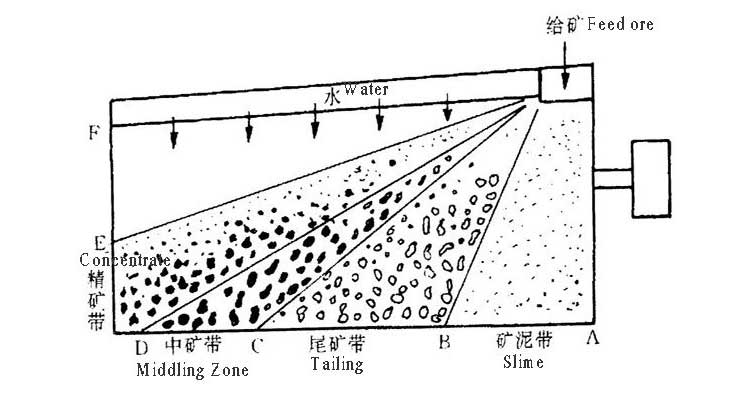

The ore are fed from the ore feeding trough at the corner of the shaking table bed, and the horizontal flushing water is supplied from the feeding trough. Mainly on an inclined bed surface, with the help of the combined action of symmetrical reciprocating motion of mechanical stone slabs and thin-layer inclined plane water flow. The mineral particles on the bed surface according to specific gravity and water flow impulse so that the minerals are sorted according to different densities. Finally, the ore particles with different specific gravity and particle sizes gradually flow down in a fan shape along their respective directions of movement. It’s discharged from other areas on the concentrate end and tailings side of the shaking table, respectively, thus forming concentrate, middlings and tailings.
Advantages Of Shaking Tables
It is often connected with gold trommel scrubber, trommel screen, centrifuge concentrator, sluice box and other beneficiation equipment, and is used in alluvial gold processing plants
It has the advantages of high enrichment ratio, good separation efficiency, easy care, easy adjustment and simple operation, and can obtain the final concentrate and tailings at one time;
The bed surface is flat, has good corrosion resistance, is durable, not easy to deform, has a long service life, and does not need to be replaced frequently;
Easy installation, simple operation, low cost, high cost performance, good sorting performance and stable indicators.

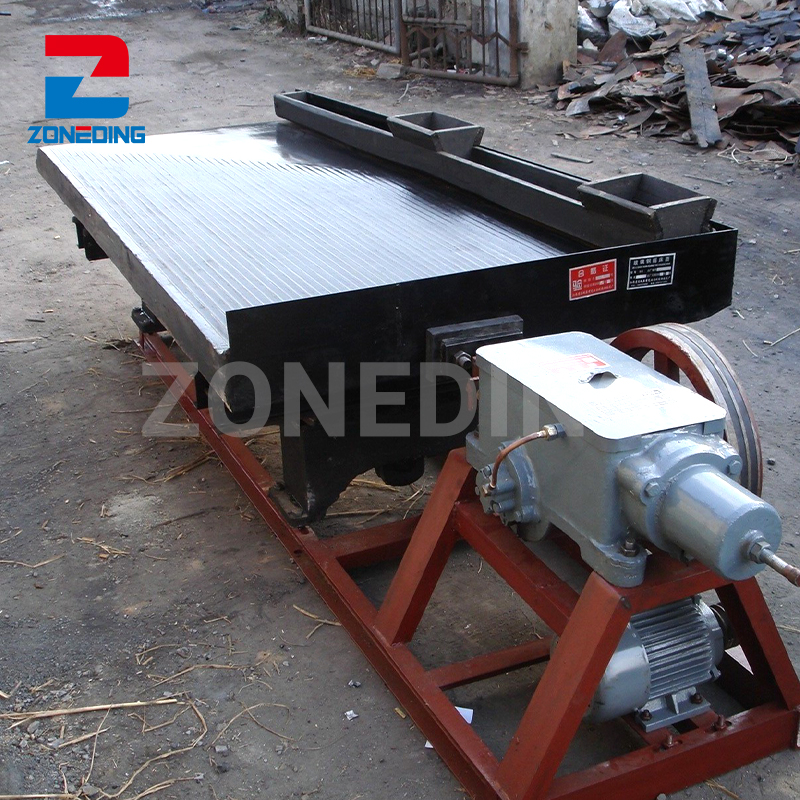

Shaking table structure
Coal, gold ore, iron ore, magnesite, copper ore, manganese ore, tin ore, tungsten ore, chromium ore titanium ore and other rare metal and precious metal ores. it can also be used for purifying non-metallic minerals, such as talc, limestone, garnet, pyrophyllite, etc.
Shaking table structure

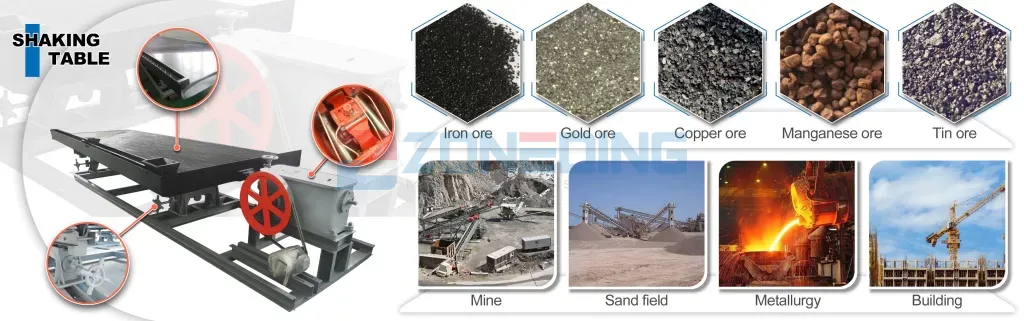

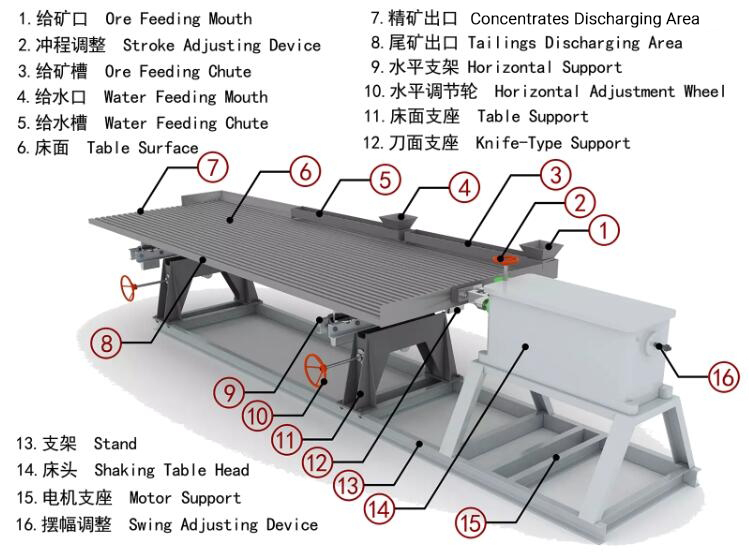

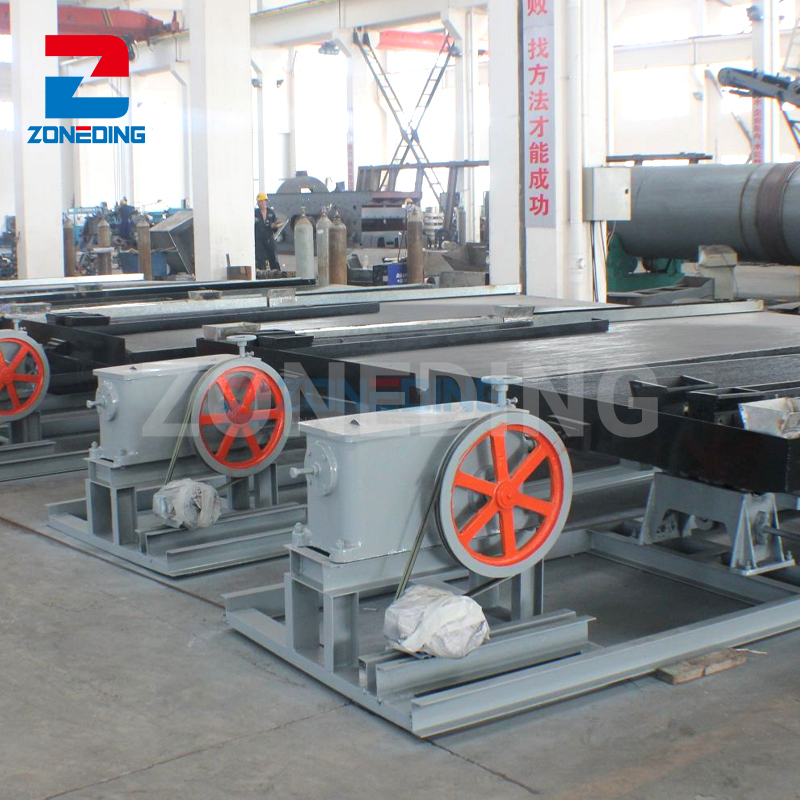

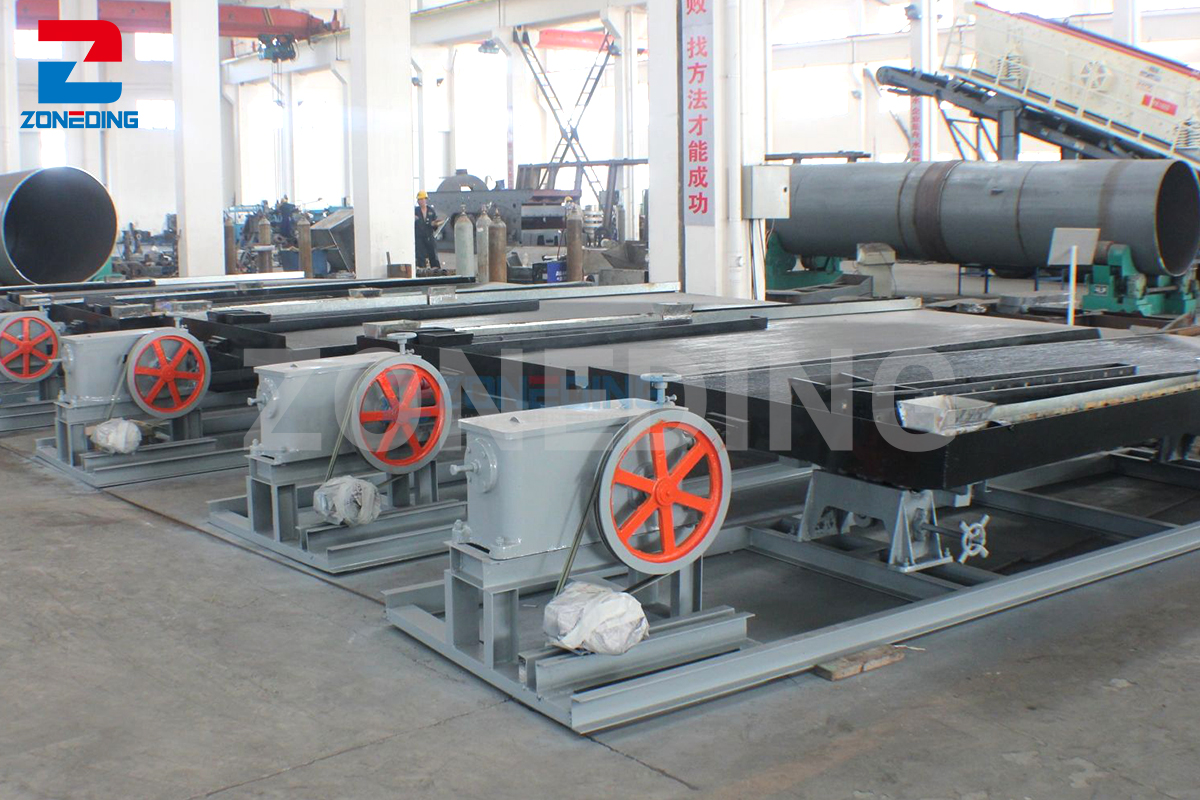

Shaking Tables Structure

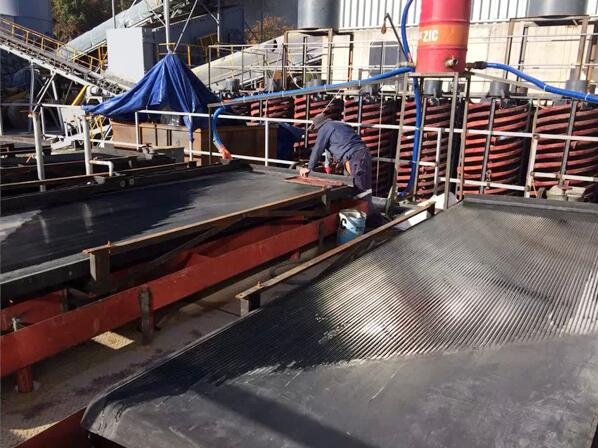

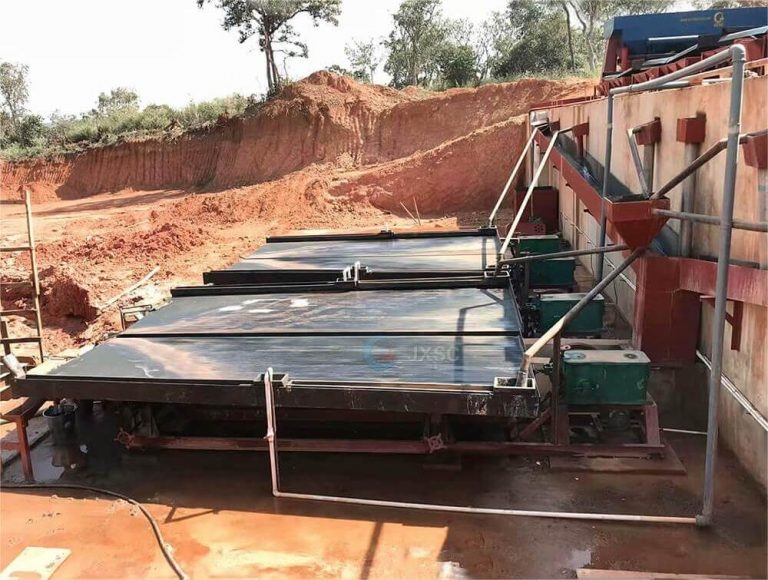

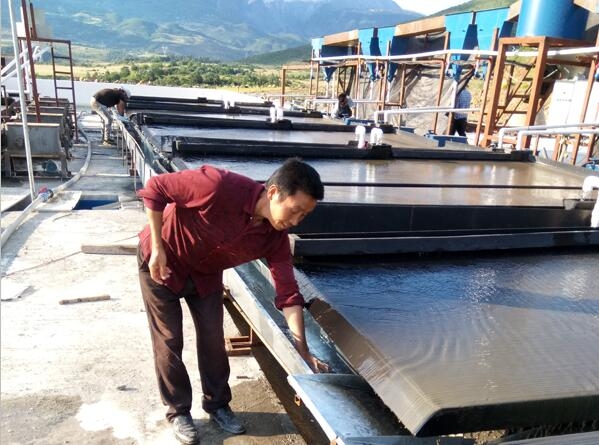

Customer site
Malaysia customer site
Thailand Customer Site
South African customer site
Specification
Deck type
Unit
Coarse sand
Fine sand
Slime Deck
Three different kinds of decks are available
Beneficiation Area
m2
7.6
7.6
7.6
4.08
1.95
0.5
Deck Size
Length
mm
4450
4450
4450
3000
2100
1100
transmission end width
mm
1855
1855
1855
1320
1050
500
Concentrate end width
mm
1546
1546
1546
1100
850
430
Maximum Feeding Size
mm
2
0.5
0.15
0.1-2
0.074-2
0.074-2
Feeding Amount
t/d
30-60
10-20
15-25
0.4-1.5t/h
0.3-0.8t/h
0.05-0.2t/h
Feeding Density
%
25-30
20-25
15-25
10-30
Stroke
mm
16-22
11-16
8-16
6-30
12-28
9-17
Frequency
f
45-48
18-53
50-57
210-320
250-450
280-460
Water added
t/d
80-150
30-60
10-17
0.3-1.5t/h
0.2-1t/h
0.1-0.5t/h
Transverse slope of Deck
/
2° 30-4° 30
1° 30-3° 30
1° -2°
0 -10°
0 -8°
0 -10°
Longitudinal slope of Deck
/
1.4
0.92
——
——
——
——
Cross-section Shape of Deck
rectangular
saw tooth
triangle
Avaliable rectangular, saw tooth, triangle
Motor Power
KW
1.1
1.1
1.1
1.1
1.1
1.1
After-sales service
Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly. Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills. Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free. Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner. Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
