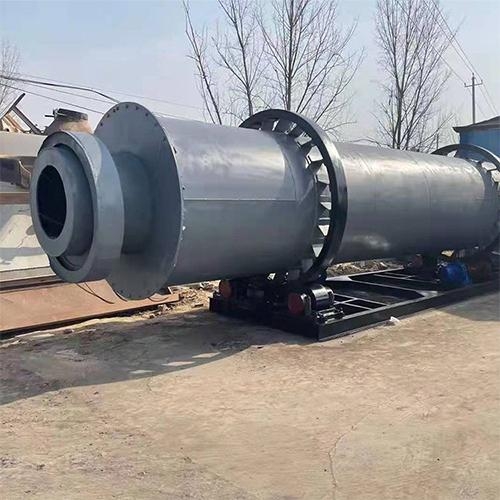

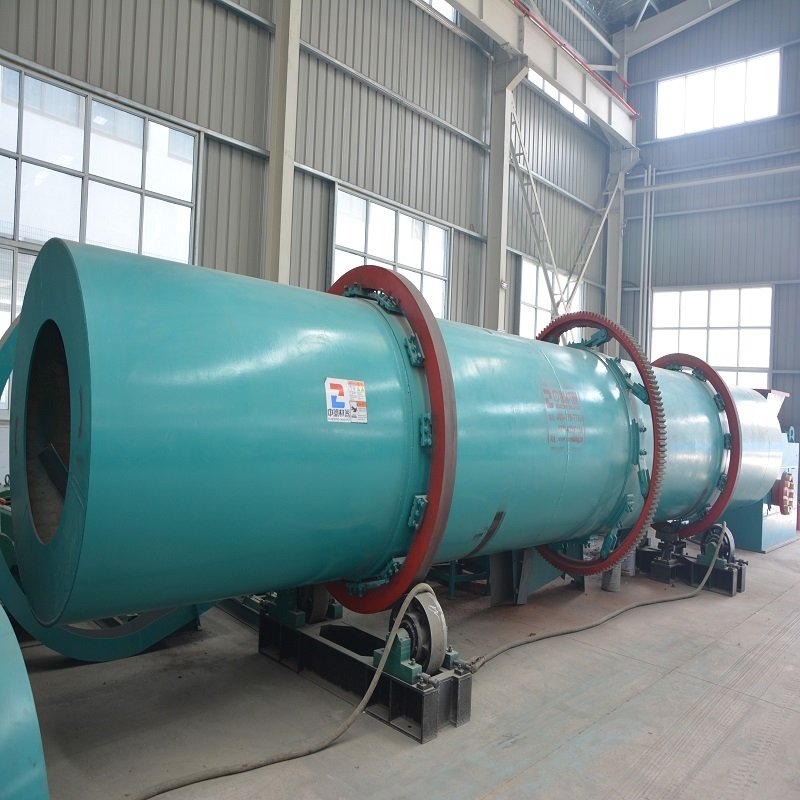

Rotary dryer is also called long drum dryer or drum dryer.
20-Day Delivery and One-Year Warranty
Rotary dryer is also called long drum dryer or drum dryer. It is the most common kind of dryer equipment in mining equipment. It has high production efficiency, convenient operation and easy maintenance. The dryer has a reasonable structure, excellent manufacturing process, high efficiency, energy saving, and convenient operation.
rotary dryers use reasonable operating parameters; the coal consumption and electricity consumption are reduced by more than 10-15% compared with the general dryer, and the output when the machine is increased by more than 10-15%.

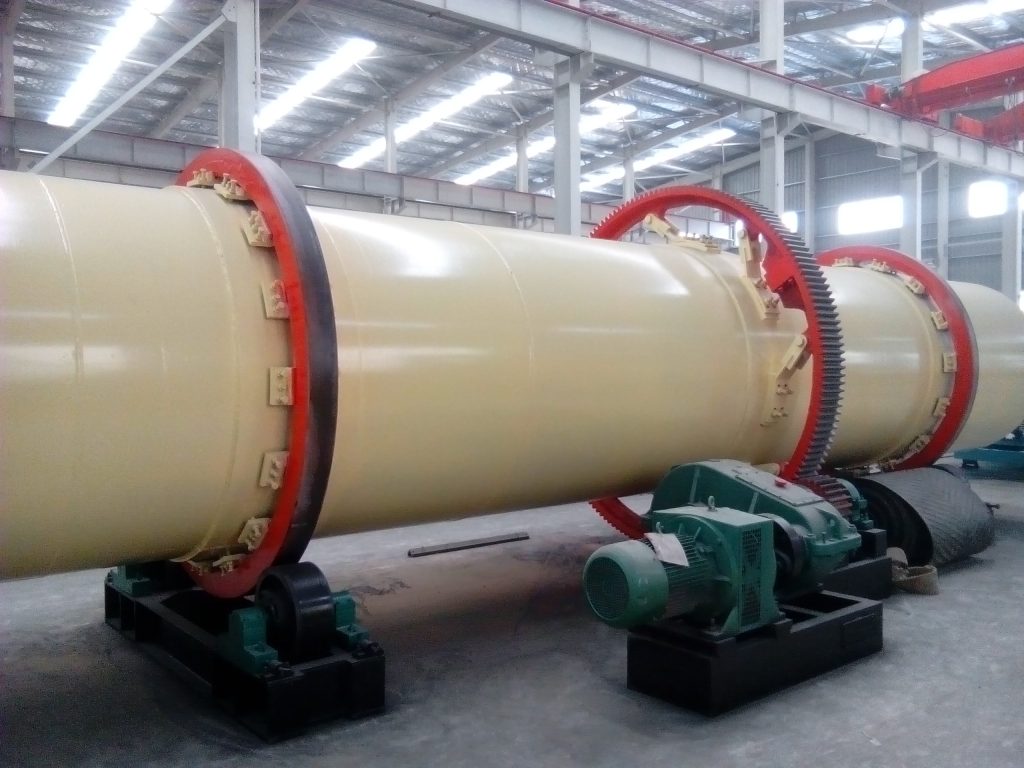

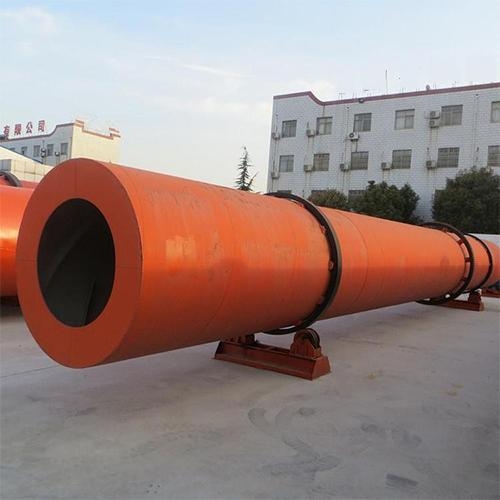

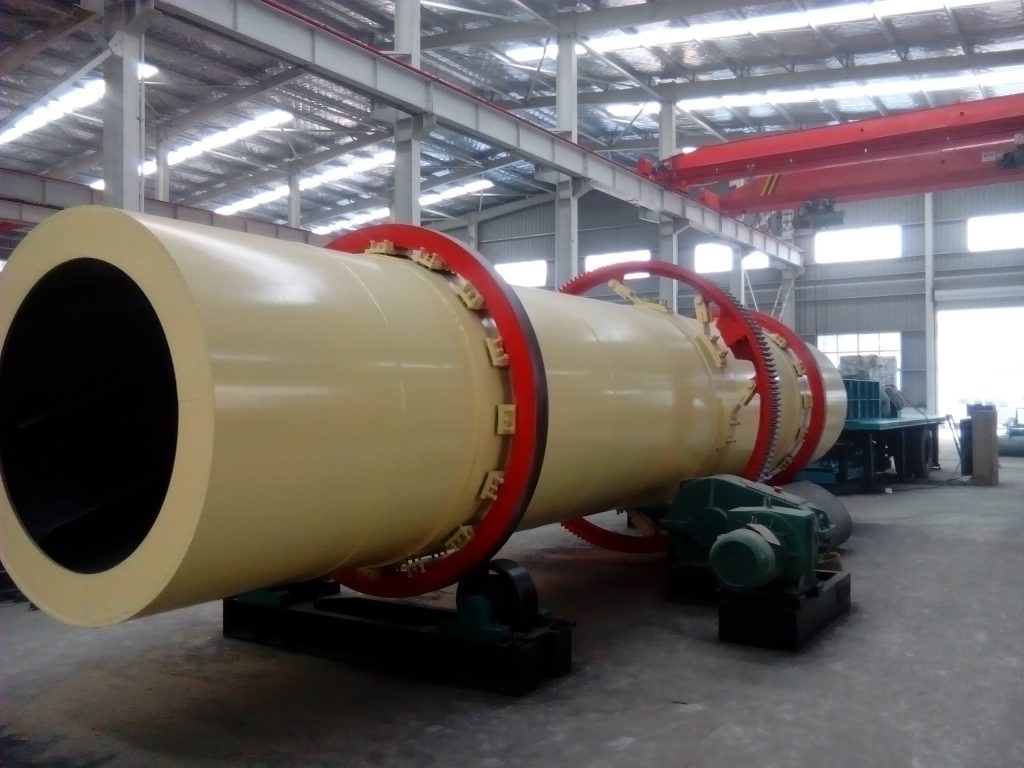

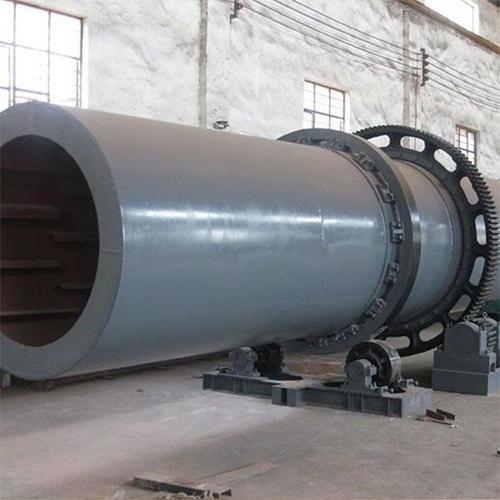

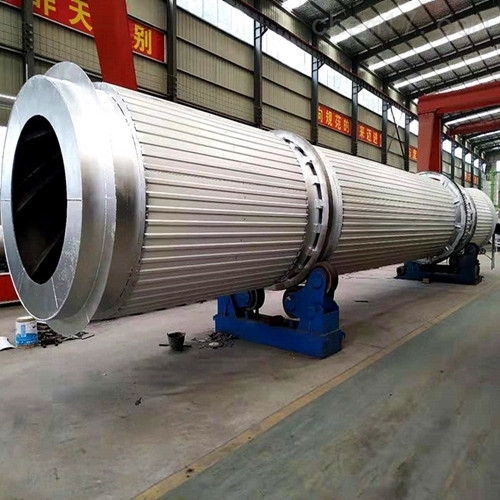

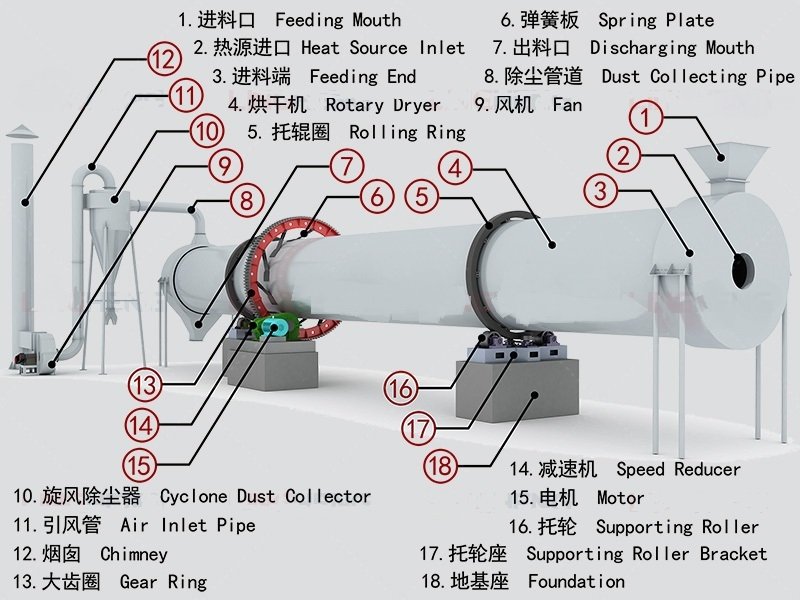

The rotating drum of the dryer is a slightly inclined and rotatable cylinder. Wet materials enter from the upper part of one end and dry materials are collected from the lower part of the other end. Hot air enters from the feeding end of the discharging end and exits from the upper part of the other end. The barrel is equipped with a forward copy board so that the material is continuously picked up and sprinkled during the rotation of the barrel so that it is fully contacted with the hot airflow to improve the drying efficiency and move the material forward. The heat source of dry materials is generally hot air, high-temperature flue gas, etc. It can be selected according to the nature and quality requirements of materials.
The structure of dewatering screen mainly includes screen frame, screen mesh, vibration device, support base, feeding and discharging device and control system. The screen frame supports the screen mesh, which is used to separate the material and water. The vibration device generates high frequency vibration to improve the screening effect. The support base stabilises the whole unit, the inlet and outlet devices are responsible for material transport, and the control system automates the operation. All these parts work together to achieve efficient dewatering.
| Model(mm) | Rotation Speed(r/min) | Feeding Size(mm) | Angle of Inclination（％） | Intake humidity（℃） | Output(t/h) | Weight(T) |
| φ800×800 | 3-8 | ≤20 | 3-8 | ≤700 | 0.8-2 | 3.5 |
| φ800×10000 | 3-8 | ≤20 | 3-8 | ≤700 | 0.8-2.5 | 4.5 |
| φ1000×10000 | 3-8 | ≤20 | 3-8 | ≤700 | 1-3.5 | 5.6 |
| φ1200×10000 | 3-8 | ≤20 | 3-8 | ≤700 | 1.8-5 | 14.5 |
| φ1200×12000 | 3-8 | ≤20 | 3-8 | ≤700 | 2-6 | 14.8 |
| φ1500×12000 | 2-6 | ≤20 | 3-8 | ≤800 | 3.5-9 | 17.8 |
| φ1800×12000 | 1.5-6 | ≤20 | 3-8 | ≤800 | 5-12 | 25 |
| φ2200×12000 | 1.5-6 | ≤20 | 3-8 | ≤800 | 6-15 | 33 |
| φ2200×18000 | 1.5-6 | ≤20 | 3-8 | ≤800 | 10-18 | 53.8 |
| φ2200×20000 | 1.5-6 | ≤20 | 3-8 | ≤800 | 12-20 | 56 |
| φ2400×20000 | 1.5-5 | ≤20 | 3-8 | ≤800 | 18-36 | 60 |
| φ3000×20000 | 1.5-5 | ≤20 | 3-8 | ≤800 | 25-35 | 78 |
| φ3000×25000 | 1.5-5 | ≤20 | 3-8 | ≤800 | 32-40 | 104.9 |
