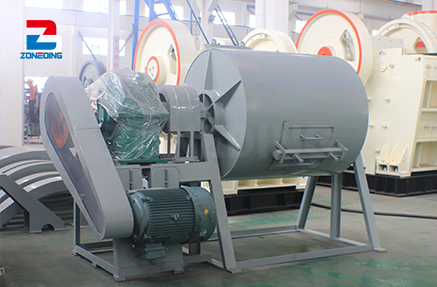

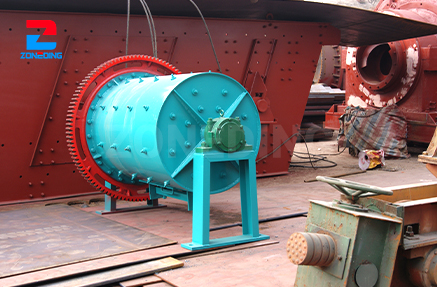

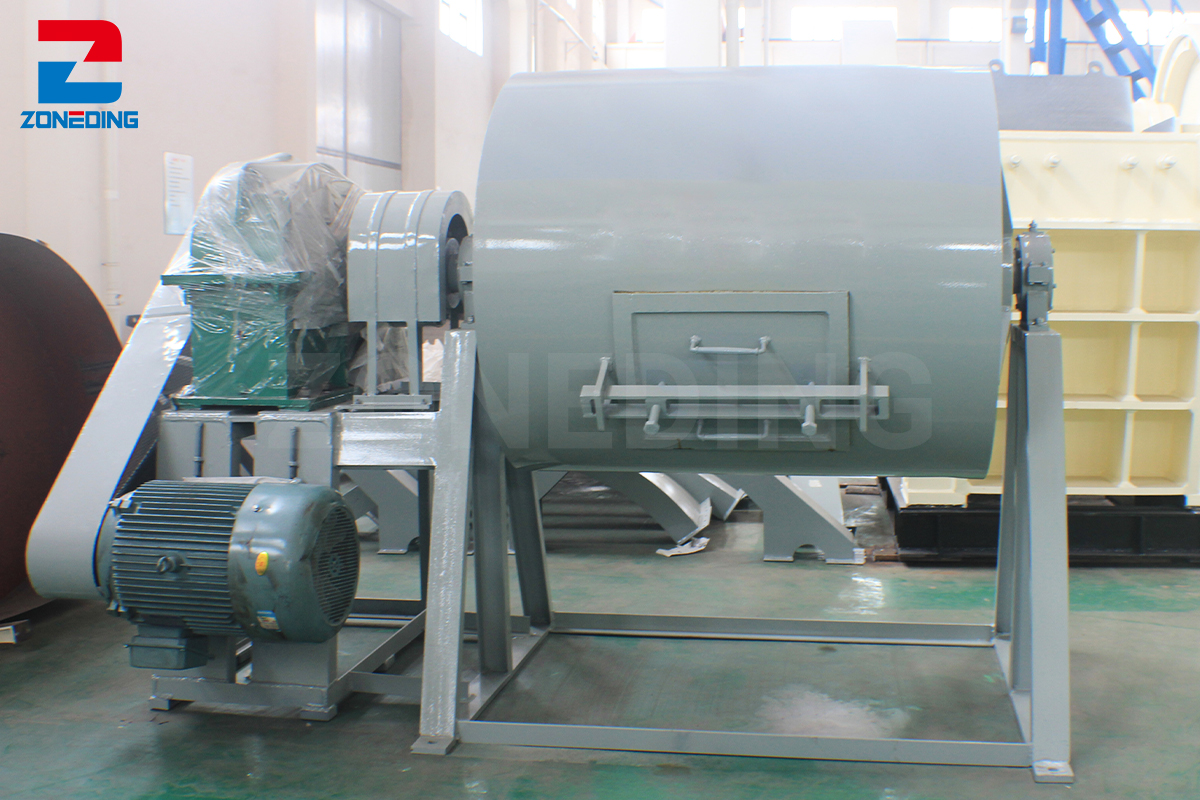

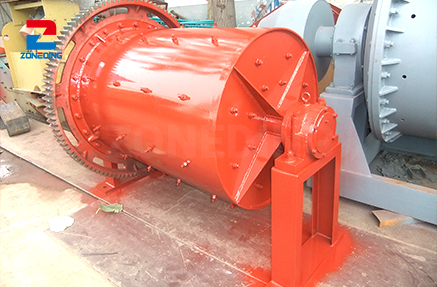

batch ball mill for sale

Grinding by times. Batch ball mill is mainly used for material mixing, grinding, the fineness of the product is uniform, saving power. It can be used for both dry and wet grinding. The fineness of the grinding operation is controlled by the grinding time itself. The electric motor starts by self depressurization to reduce the starting current, and its structure is divided into integral independent type

Features of batch ball mills

• High efficiency and energy saving: intermittent working mode reduces the energy loss in the grinding process.
• Automatic control: Equipped with advanced electric control system, it realizes automatic control and detection, and improves production efficiency.
• Environmental protection and health: Closed structure design reduces dust and noise and improves the working environment.
• Multifunctionality: suitable for grinding, mixing, drying and other processes.
• With its high efficiency, automatic, environmental protection and multi-functionality, intermittent ball mill is widely used in various material processing.

Application of batch ball mill

Intermittent ball mill is widely used in mining, silicate, cement, fertilizer, ceramics and other industries for crushing and refining materials. Its unique intermittent working mode can adjust the grinding time and mode according to the material characteristics to realize efficient and precise grinding and improve product quality.

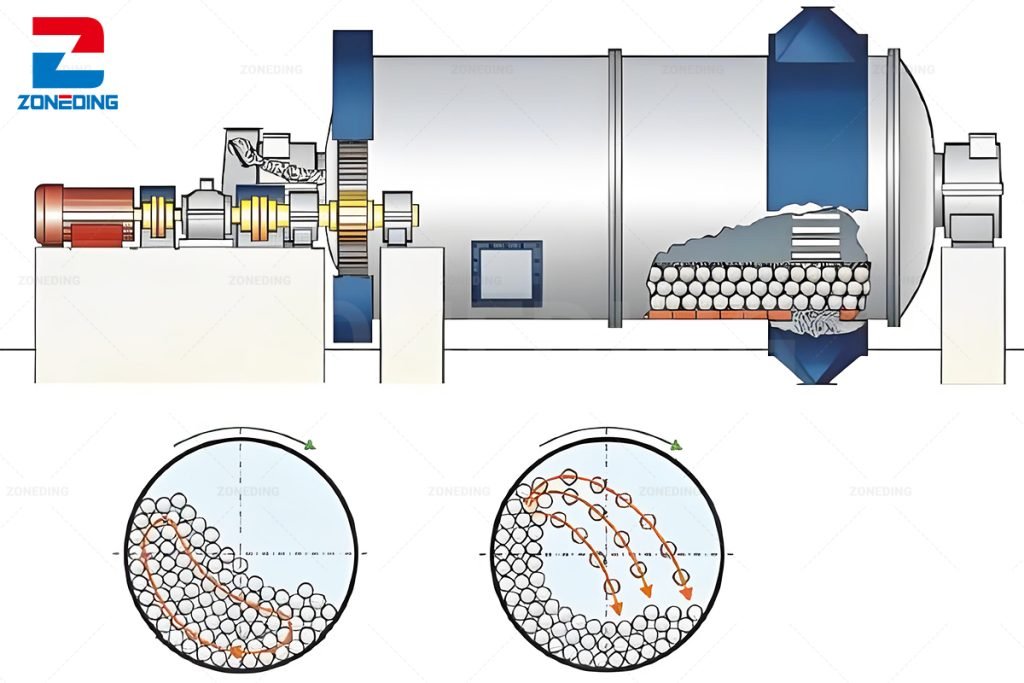

Working principle of batch ball mills

When the machine is started, its cylinder begins to rotate. The inside of the cylinder is equipped with a certain number and size of steel or ceramic balls, which are constantly tumbling and impacting with the rotation of the cylinder. After the material is added into the cylinder, it is gradually ground and refined under the impact and friction of the balls. This process is cyclical, after a certain period of time, the finished grinding material will be discharged at one time through a specific discharge device. By controlling the rotating time and discharging cycle, the intermittent ball mill realizes uniform and efficient grinding of materials.

Difference between batch ball mill and continuous ball mill

1. working mode: Batch ball mill is to carry out grinding operation in batches, unloading and loading after a batch of materials are finished grinding; while continuous ball mill is to keep feeding and discharging materials, and grinding continuously.
2. Production efficiency: Generally speaking, the production efficiency of continuous ball mill is relatively high, which is suitable for large-scale continuous production; the production efficiency of batch ball mill is relatively low, but it is more convenient to adjust the process parameters flexibly.
3. Stability of product quality: continuous ball mill due to continuous feeding and discharging, the product quality is relatively more stable; intermittent ball mill in different batches there may be some quality differences.
4. Energy consumption: Continuous ball mills usually consume less energy in long-term operation; batch ball mills consume more energy due to more frequent starting and stopping.
5. Operation complexity: batch ball mill operation is relatively simple and easy to control; continuous ball mill operation and control requirements are relatively high.
6. Equipment investment: the equipment investment of continuous ball mill is generally larger; the equipment investment of batch ball mill is relatively small.
7. Applicable scenarios: continuous ball mill is suitable for large-scale, high product quality and stability requirements of the production; batch ball mill is suitable for small quantities, multi-species, experimental research or process parameters need to be adjusted frequently.

Specification

Model	Effective Volume(m3)	Cylinder speed(r/min)	Primary Charging Capacity(t)	Power(kW)	Weight (t)
Φ600×700	0.2	50	0.06	2.2-3	1.2
Φ900×1200	0.8	36	0.24	5.5-7.5	3
Φ1200×1200	1.4	34	0.44	7.5-11	3.5
Φ1200×1400	1.6	32	0.51	11-15	3.8
Φ1300×1500	2	30	0.64	15-18.5	4.2
Φ1500×1800	3.2	28	1.0	18.5-22	4.5
Φ1800×2100	5.3	26	1.7	22-30	6
Φ2100×2100	7.3	22	2.3	30-37	7.4

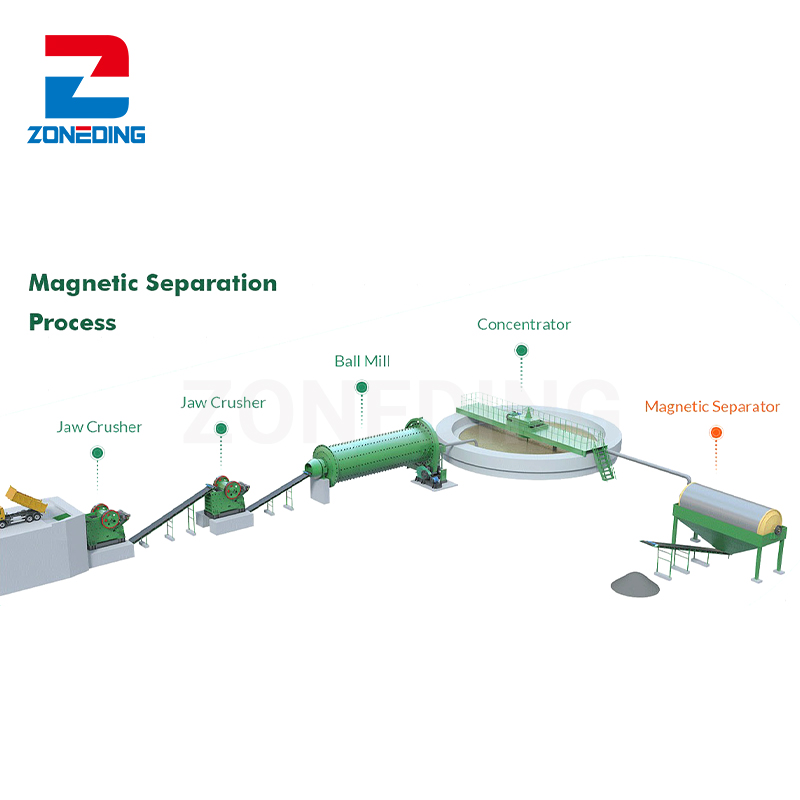

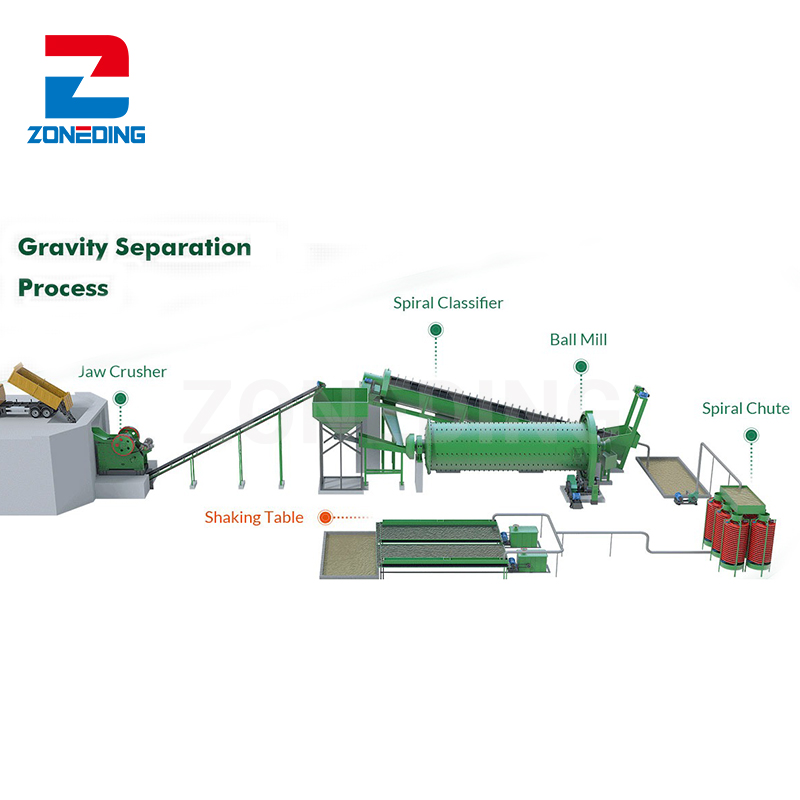

Common Ball Mill Solutions

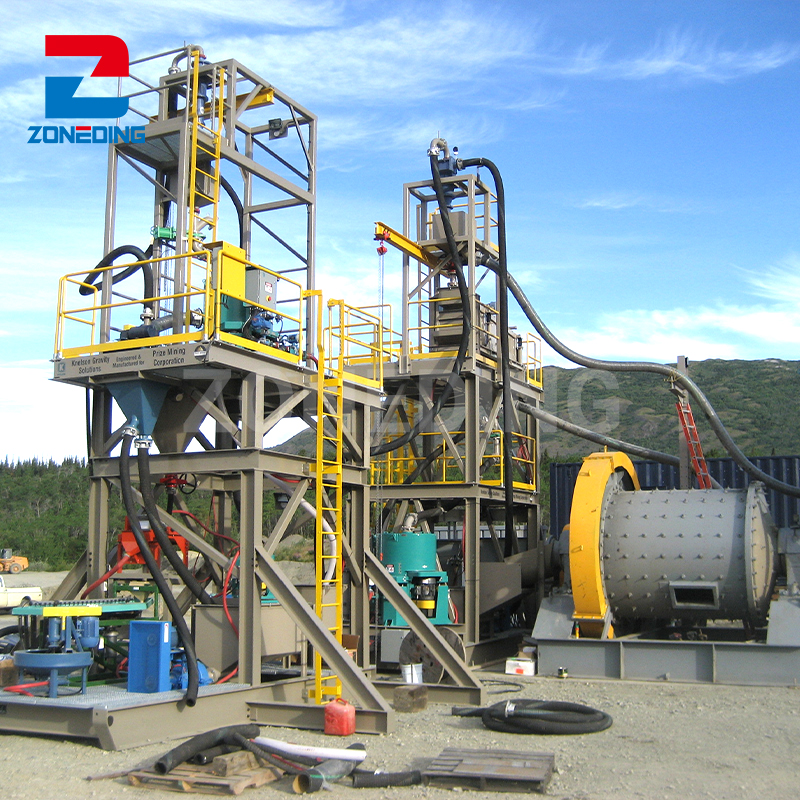

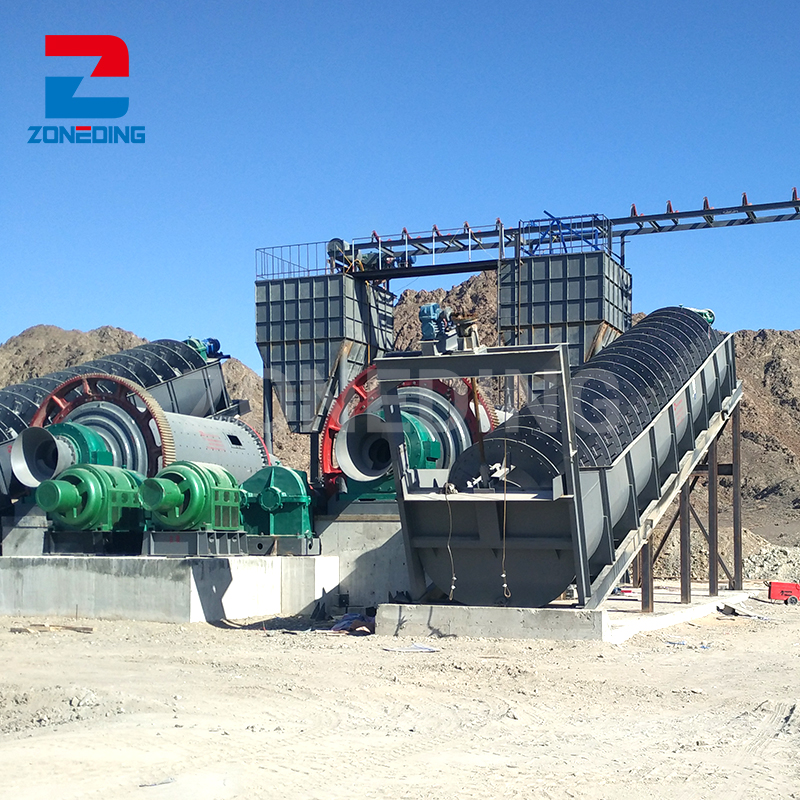

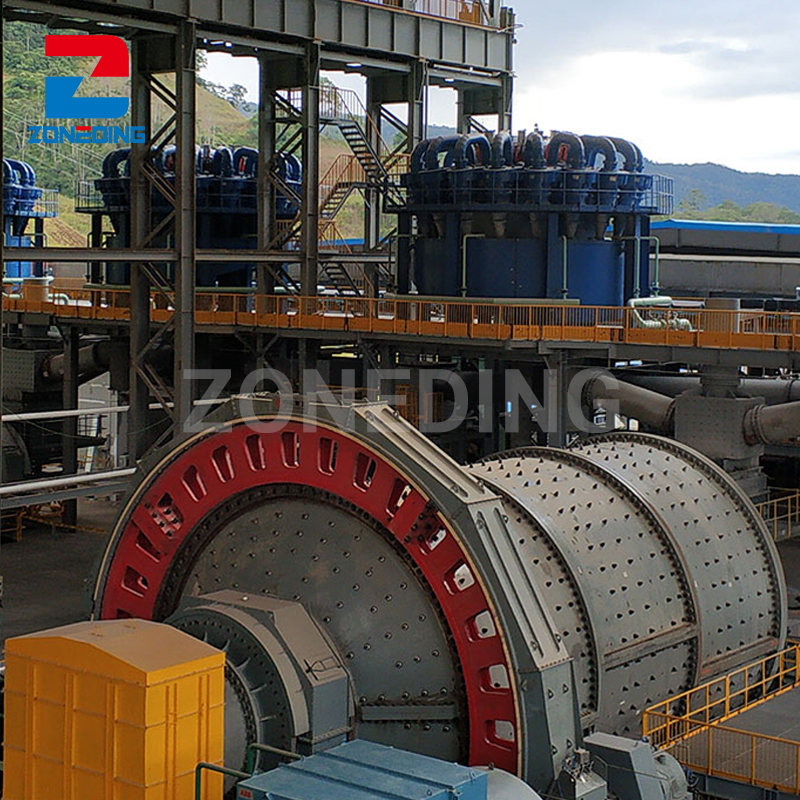

Customer Site

After-sales service

Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly.
Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills.
Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free.
Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner.
Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
