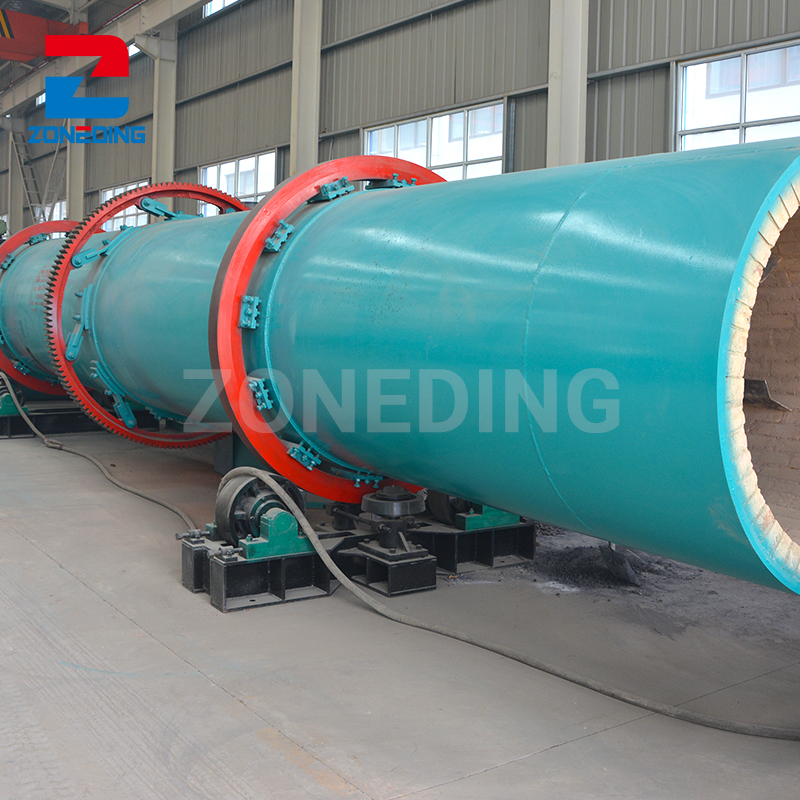

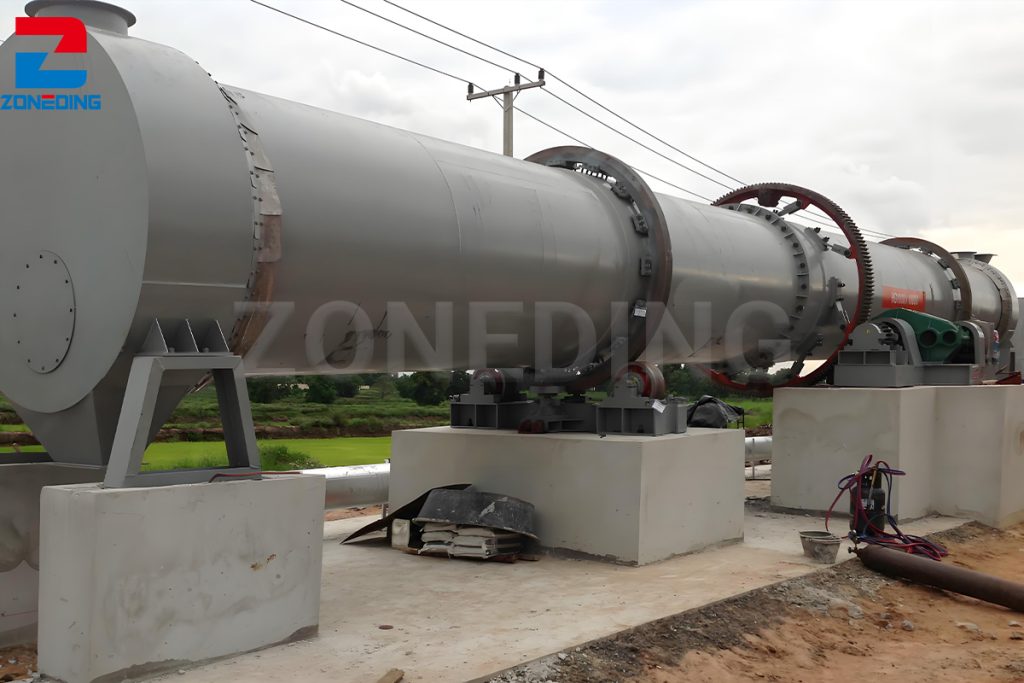

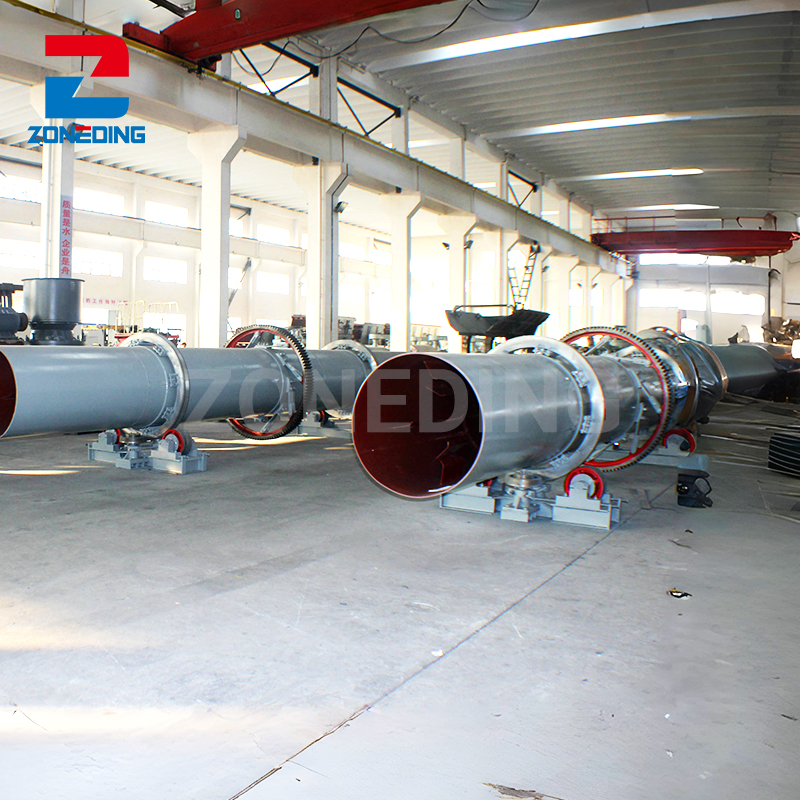

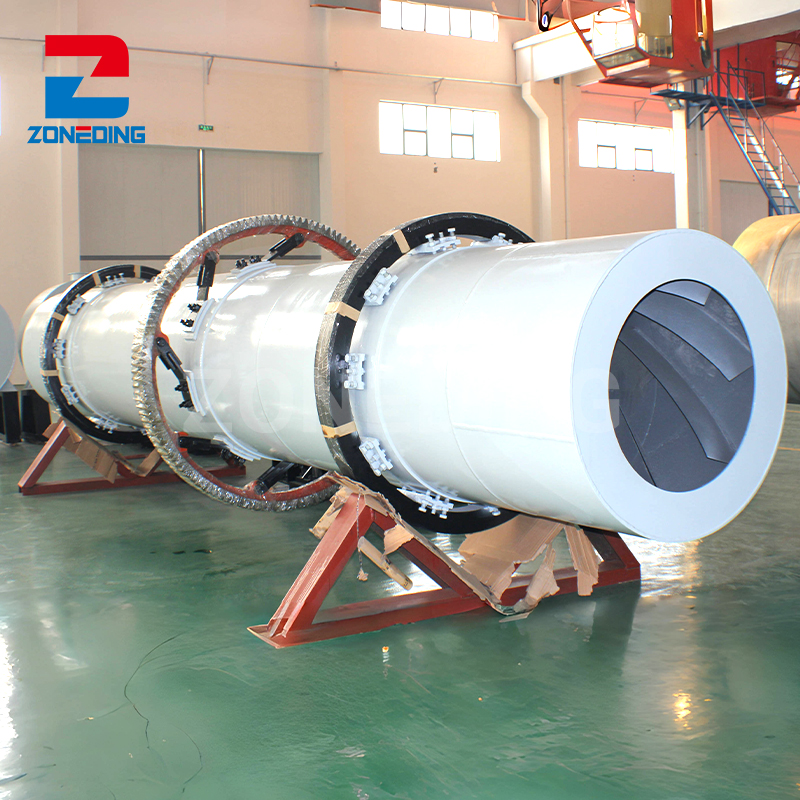

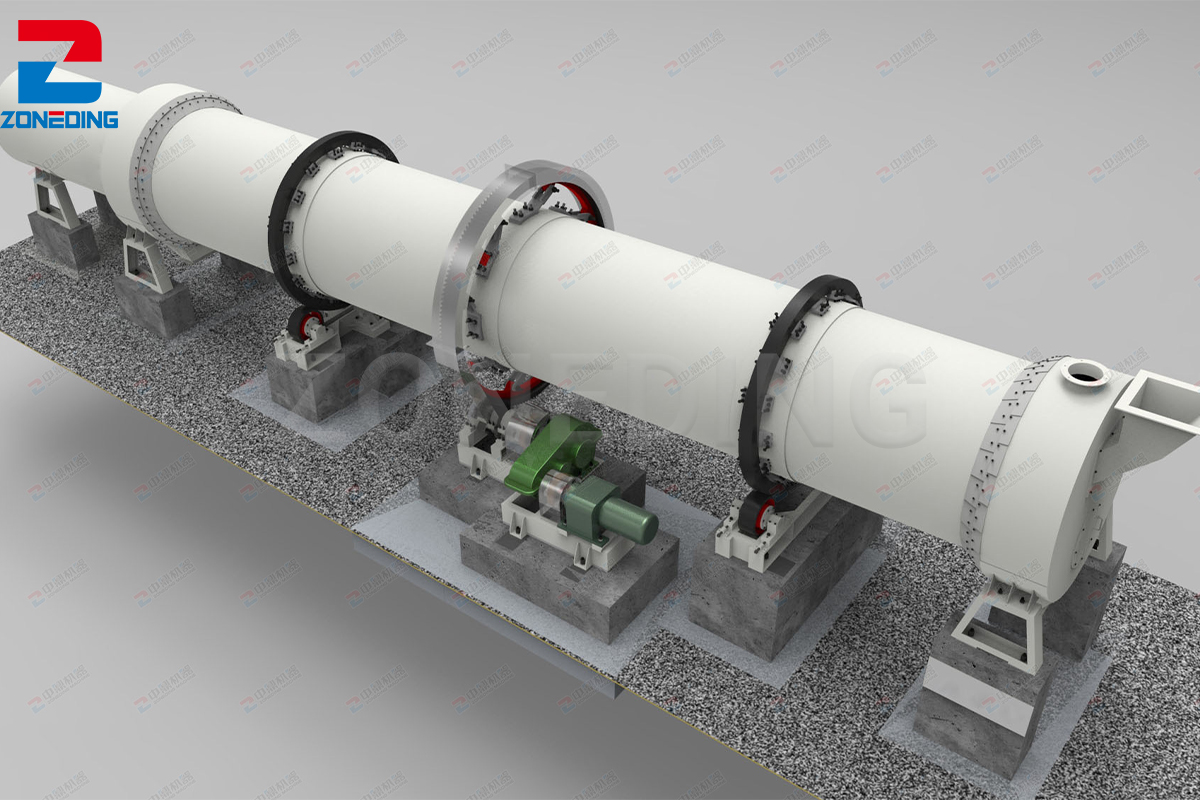

Chicken Manure Dryer

Production capacity: 1-16 t/h
Supported fuels: Supported fuels: coal, oil, gas, steam waste heat, and other fuels.
Applicable materials: suitable for chicken manure, sheep manure, duck manure, organic fertilizer, inorganic fertilizer, straw, kitchen waste, etc.

20-Day Delivery and One-Year Warranty

Chicken manure dryer application

In modern agriculture and animal husbandry, waste treatment and resource recycling have always been key issues. Chicken manure is a nutrient-rich organic fertilizer resource. Its utilization value will be greatly improved if it can be properly processed. Chicken manure dryer came into being and became an important equipment to solve this problem. Similar to the functions of organic fertilizer dryers such as cow dung dryers, this equipment can not only efficiently dry chicken manure but also has multiple functions such as dust removal and deodorization to ensure that the treatment process is environmentally friendly and efficient.

The chicken manure dryer machine can quickly dry fresh chicken manure with a moisture content of 70% to 80% down to a moisture content of only 13%. This high-efficiency moisture removal capability ensures that the chicken manure retains its optimal nutrient content during the conversion process, making it easier for further processing and utilization. The chicken manure drying system operates in a fully enclosed state, effectively reducing environmental pollution while being energy-saving and environmentally friendly. The dried chicken manure can be used to produce high-quality organic fertilizer and feed additives, enhancing agricultural production efficiency.

Chicken Manure Dryer

Model	Inclination angle(°)	Rotation speed(r/min)	Capacity(t/h)	Inlet temperature(℃)	Motor power(kw)
Ф0.8*8m	2-5	4.7	1-1.5	<700	5.5
Ф1*10m	2-5	4.7	1.5-2	<700	7.5
Ф1.2*12m	2-5	4.7	2-2.5	<700	11
Ф1.5*12m	2-5	5	4-6	<700	15
Ф1.5*15m	2-5	5	5-7	<700	15
Ф1.8*15m	2-5	5	7-10	<700	18.5
Ф2*20m	2-5	3.9	8-14	<700	22
Ф2.2*22m	2-5	3.2	12-16	<700	37

Chicken manure dryer specifications table

Chicken Manure Dryer is the Key Equipment for High-quality Organic Fertilizer

Chicken manure dryer machine is the core equipment for making chicken manure organic fertilizer. Chicken manure organic fertilizer uses fresh chicken manure as the main raw material and is made through raw material pretreatment, fermentation, crushing and mixing, granulation, drying, and cooling. The organic fertilizer produced is rich in nutrients such as nitrogen, phosphorus, and potassium, as well as a high proportion of crude protein and organic matter, which can significantly increase soil fertility and crop yields. Tests by experts from the Academy of Agricultural Sciences show that this organic fertilizer is a high-quality fertilizer choice in agricultural production.

Main Equipment of Chicken Manure Organic Fertilizer Production Line

Raw material pretreatment equipment: such as crushers, mixers, etc., is used for the preliminary treatment of organic fertilizer raw materials (or livestock and poultry manure, agricultural waste, etc.).

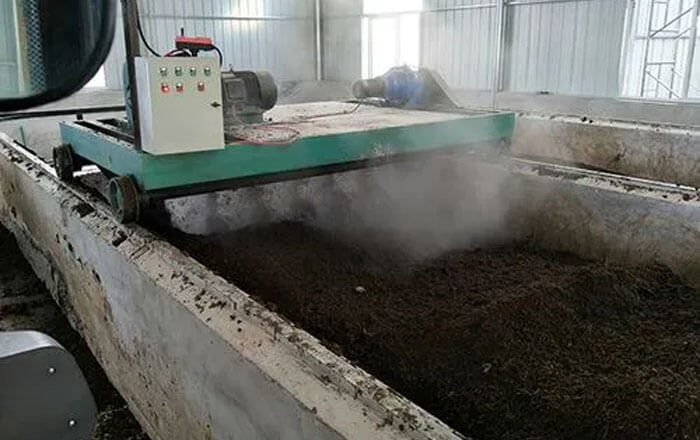

Fermentation system: Use fermentation tanks or compost turners for aerobic fermentation of raw materials.
Crushing and mixing equipment: Secondary crushing of fermented materials and even mixing with other auxiliary materials.
Granulation equipment: Such as new wet granulators granulate the mixed materials.
Drying and cooling equipment: Dry and cool the granulated products through chicken manure dryers and coolers.
Screening and packaging equipment: Screen qualified chicken manure particles through screening machines and package them through automatic packaging machines.

Chicken Manure Drying System can be Applied in Many Fields, Turning Chicken Manure into Treasure

Chicken manure drying system is not only suitable for the production of organic fertilizer but also can be used to make feed additives. Dried chicken manure can be directly added to fish feed, pig feed and fruit tree fertilizer, becoming an important nutritional supplement. In the fields of commercial large-scale composting production, gardening, and mushroom cultivation, chicken manure drying system is needed to dry chicken manure. By converting fresh chicken manure into high-value-added products, the chicken manure dryer realizes the resource utilization of waste, reduces environmental pollution, and promotes the sustainable development of agriculture and animal husbandry.

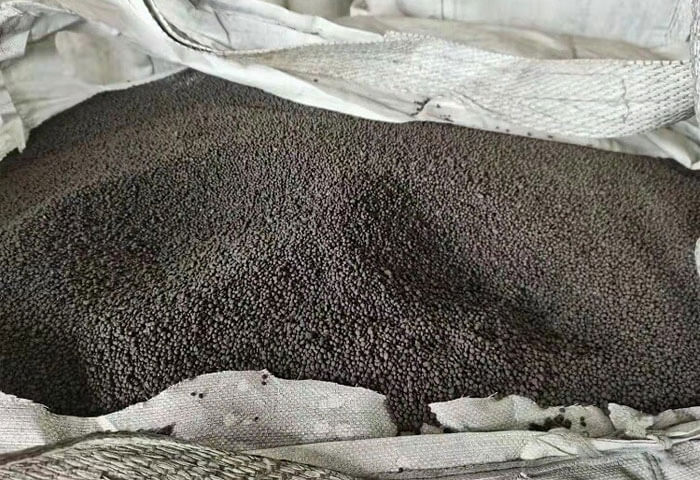

*Chicken manure organic fertilizer pellets*

*Mushroom cultivation uses substrate containing chicken manure*

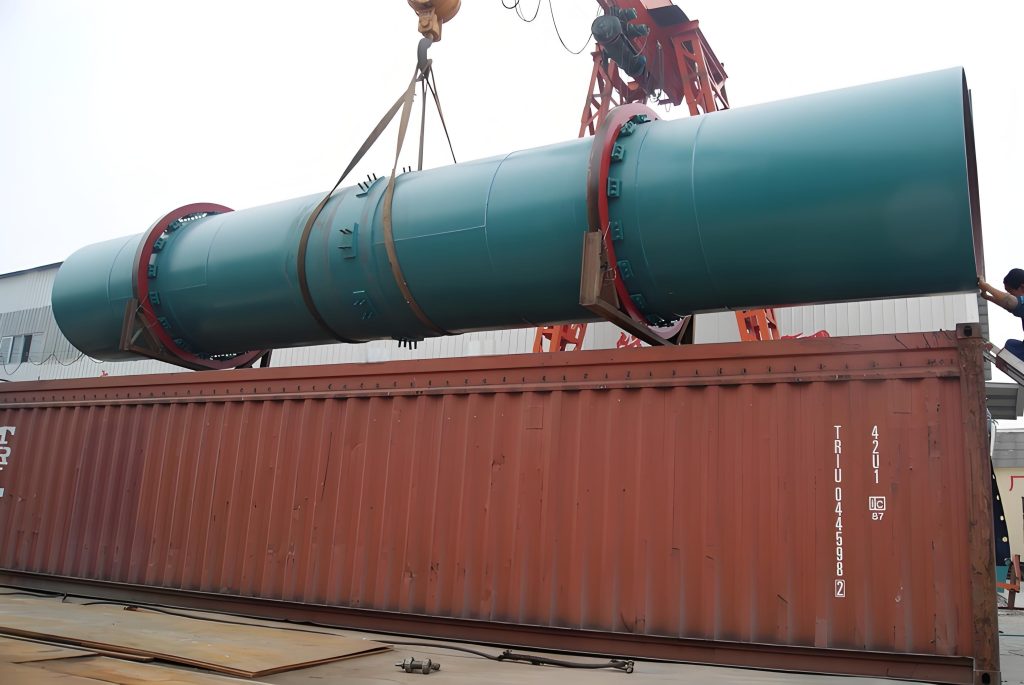

*Chicken manure drying system equipment is ready for shipment*

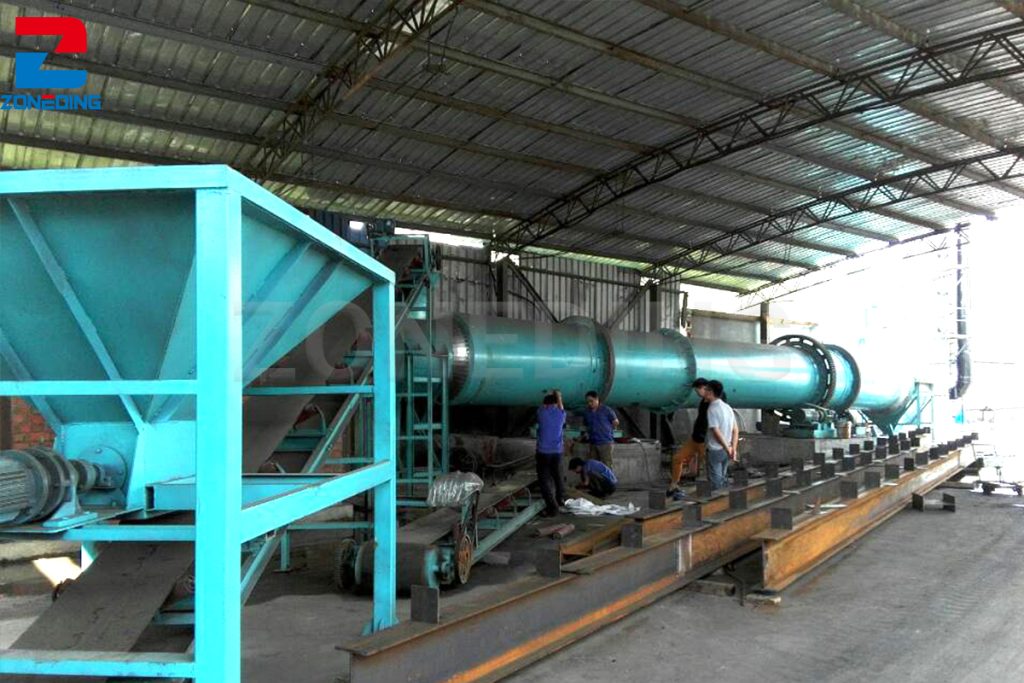

*Chicken manure organic fertilizer production line successfully installed*
