Cow Dung Dryer Machine

Production capacity: 1-16 t/h
Supported fuels: Steam waste heat, coal, oil, gas, and other fuels.
Applicable materials: Suitable for drying cow manure, chicken manure, pig manure, as well as urea, ammonium nitrate, and other inorganic and compound fertilizers.

20-Day Delivery and One-Year Warranty

Application of Cow Dung Dryer

In modern agricultural production, the use of organic fertilizers not only helps to improve soil fertility but also promotes the healthy growth of crops. Animal manure is rich in nutrients and trace elements and is a good organic fertilizer. The development of animal manure as a compound organic fertilizer can not only turn waste into treasure but also reduce environmental pollution and prevent the spread of diseases, with good economic and social benefits. Cow dung, a high-quality organic fertilizer raw material, is favored by farmers and environmentalists for its rich nutrients and natural soil improvement effects. However, in converting cow dung into efficient and easy-to-use granular organic fertilizer, the drying process is crucial.

Cow dung drying machine is the core equipment in the organic fertilizer production process. It uses efficient drying technology to quickly reduce the moisture content of cow dung particles so that they can meet appropriate storage and use standards. The drying process not only significantly improves the quality and stability of the fertilizer, but also extends its shelf life and prevents clumping and mildew.

Working Principle of Cow Dung Drying Machine

Cow dung drying machine is a piece of equipment specially used for drying and processing granulated cow dung. The device evaporates the water in the cow dung pellets, significantly reducing their volume and weight, and making them easier to store and transport. The cow dung dryer adopts a hot air circulation drying method, using a heating system and a circulating fan to evaporate the moisture in the cow dung quickly. At the same time, the equipment also has a sterilization function during the drying process, which can effectively reduce the presence of bacteria and viruses in cow manure and reduce the risk of disease transmission. Cow dung drying machines are widely used in the fields of animal husbandry and agriculture. They can efficiently process cow dung, reduce environmental pollution, and provide farmers and farmers with convenient cow dung management solutions.

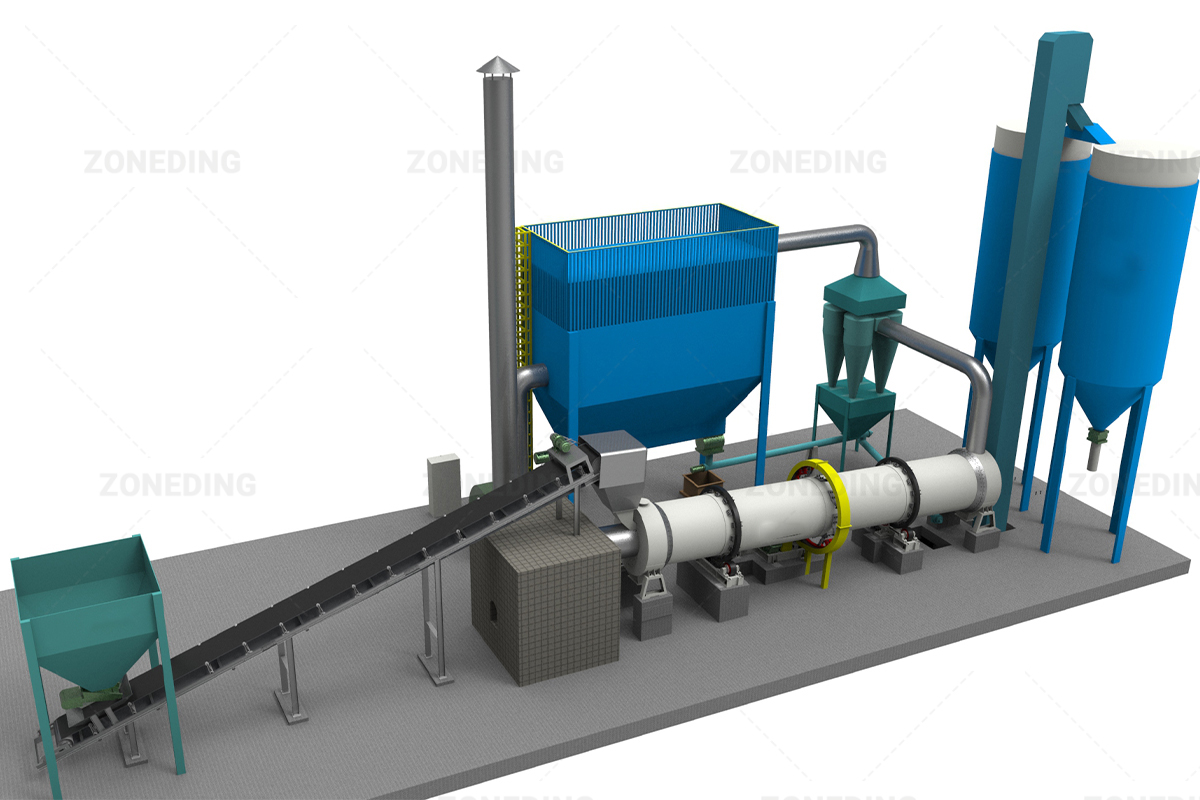

Working Principle of Coal Dryer Machine

Wet coal of a certain humidity firstly passes through a professionally designed dispersion device. The well-dispersed coal is conveyed to the feeder, by which it is then fed into the cylinder. Here in the rolling drum, wet coal is thrown up and down by blades and gets water and heat exchanged. The dried coal is belched out of the drum by the star-shaped unloader and conveyed to the package. The entire drying process is completed.

The working principle of the cow manure dryer is to place the already granulated cow manure into the equipment, where it is dried through heating and ventilation. Specifically, the cow manure dryer consists of the following parts:

Heating System: Utilizes energy sources such as gas or electricity to generate heat, which is transferred to the cow manure pellets through a heat exchanger, causing the moisture inside to evaporate.
Ventilation System: Comprising fans and other equipment, it expels the evaporated water vapor and hot air from the machine, ensuring the interior remains dry and well-ventilated.
Conveying System: Includes the feed inlet and discharge outlet. Using conveyor belts or screw conveyors, it transports the cow manure pellets from the feed inlet to the discharge outlet, ensuring a continuous and efficient drying process.
Control System: Equipped with temperature, humidity, and operational status monitoring devices, it allows for real-time adjustment and monitoring of the equipment’s operating parameters, ensuring stable and efficient operation of the cow manure dryer.
Through the coordinated work of these systems, the cow manure pellets are evenly heated inside the equipment, allowing moisture to evaporate and be expelled quickly, achieving the desired drying effect. This facilitates subsequent storage, transportation, and utilization.

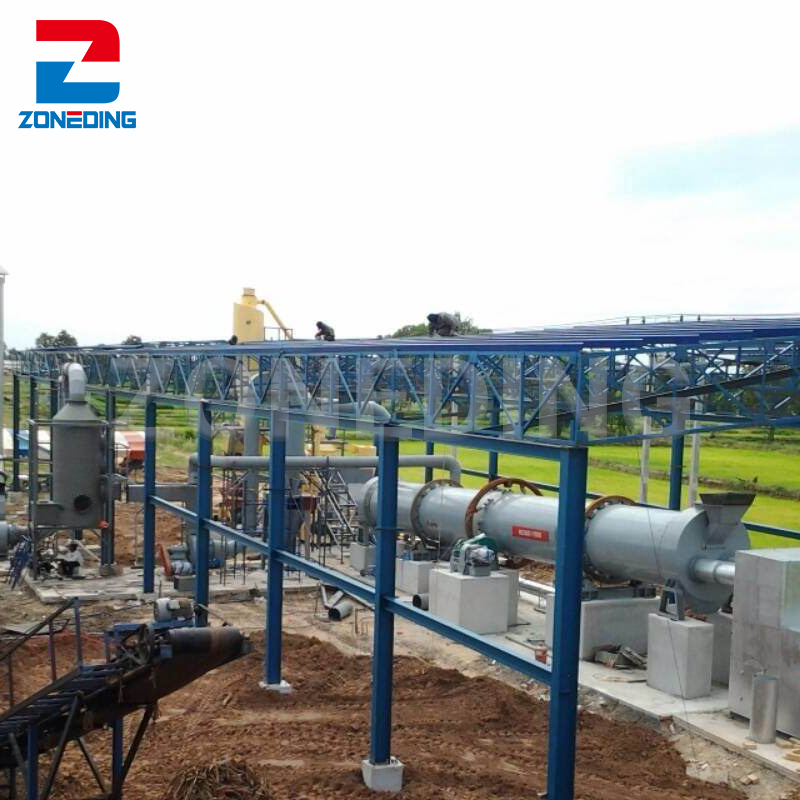

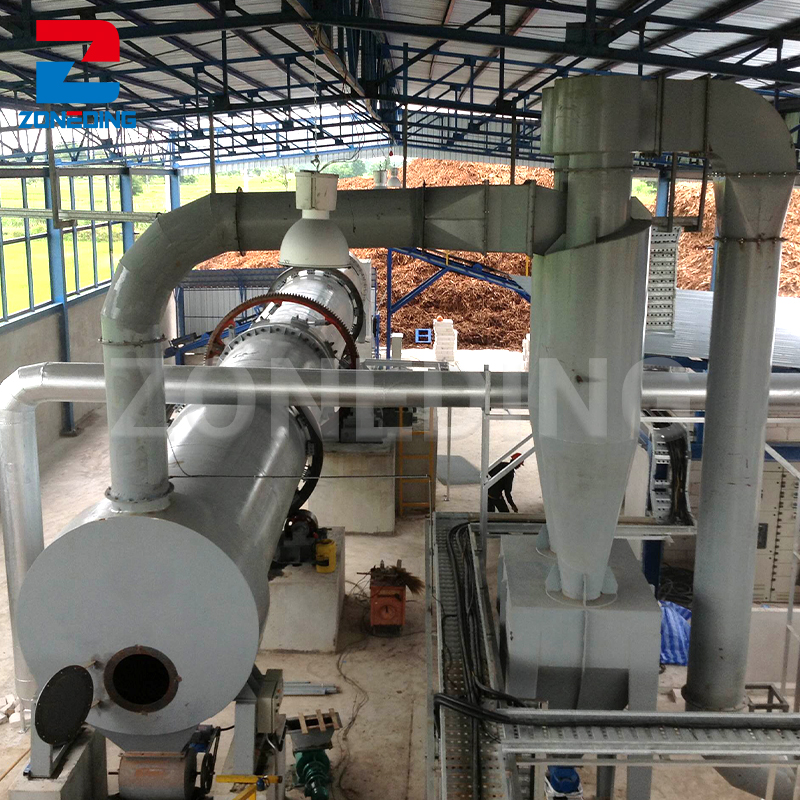

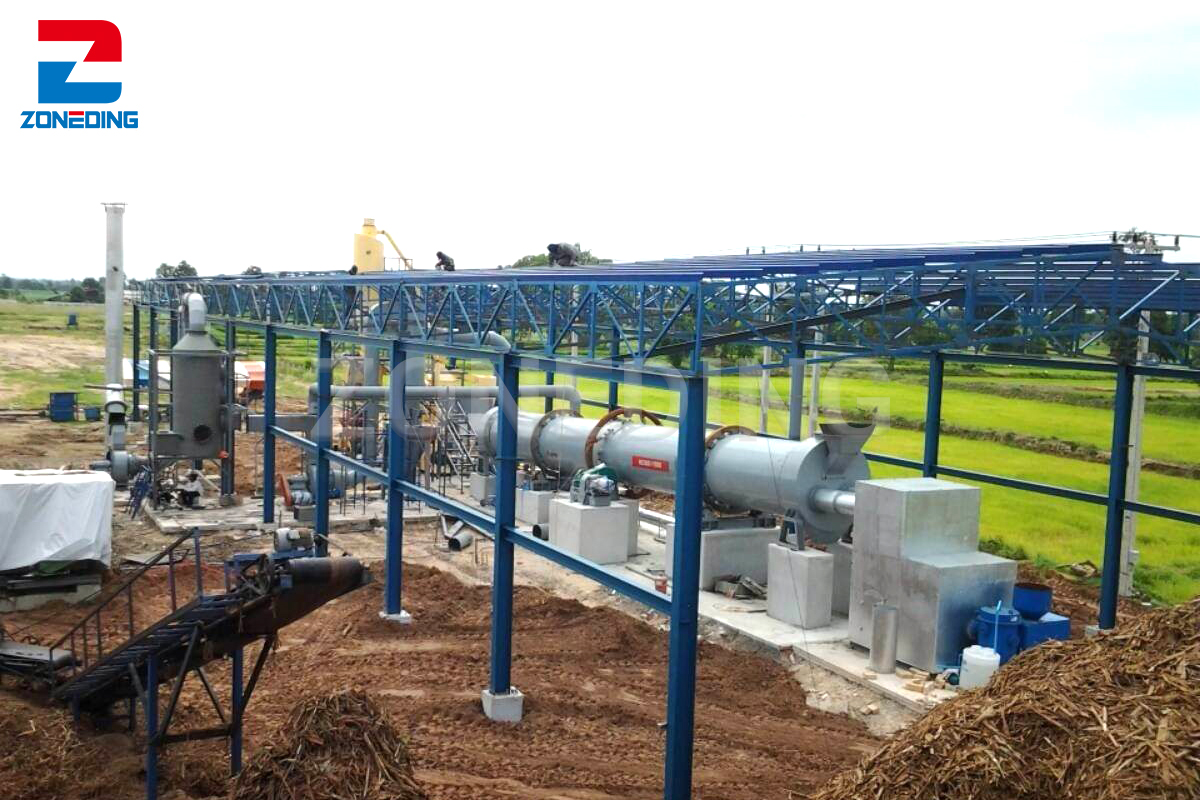

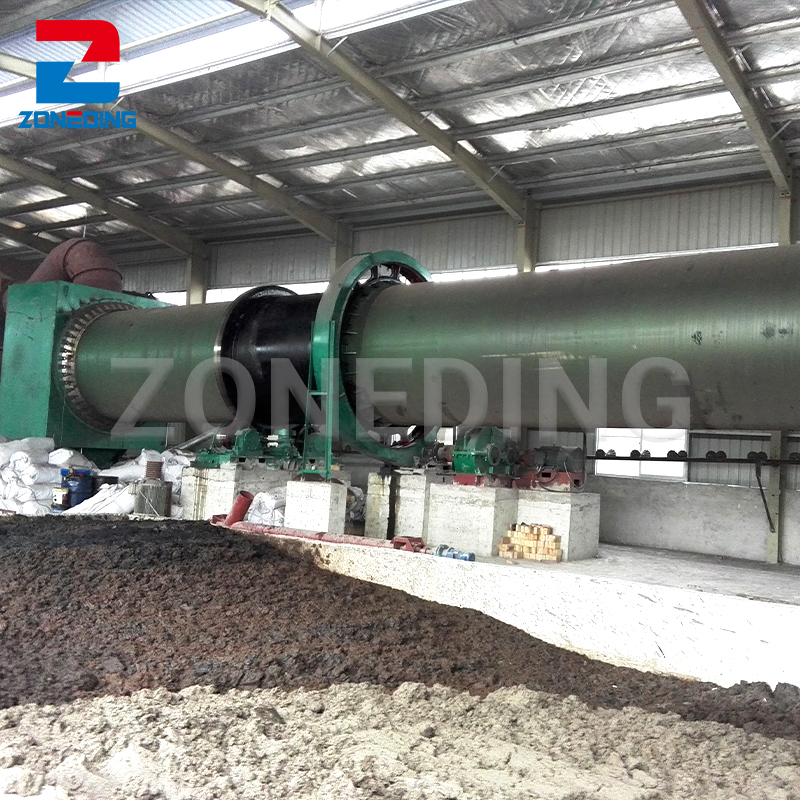

Customer site

General Specification

Model	Inclination angle(°)	Rotation speed(r/min)	Capacity(t/h)	Inlet temperature(℃)	Motor power(kw)
Ф0.8*8m	2-5	4.7	1-1.5	<700	5.5
Ф1*10m	2-5	4.7	1.5-2	<700	7.5
Ф1.2*12m	2-5	4.7	2-2.5	<700	11
Ф1.5*12m	2-5	5	4-6	<700	15
Ф1.5*15m	2-5	5	5-7	<700	15
Ф1.8*15m	2-5	5	7-10	<700	18.5
Ф2*20m	2-5	3.9	8-14	<700	22
Ф2.2*22m	2-5	3.2	12-16	<700	37
