Wheel (Bucket) Type Sand Washing Machine

Wheel (Bucket) Type Sand Washing Machine

Sand washing machine is widely used for washing materials in industries such as gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower, and concrete mixing station.

  • Capacity: 15-200 t/h

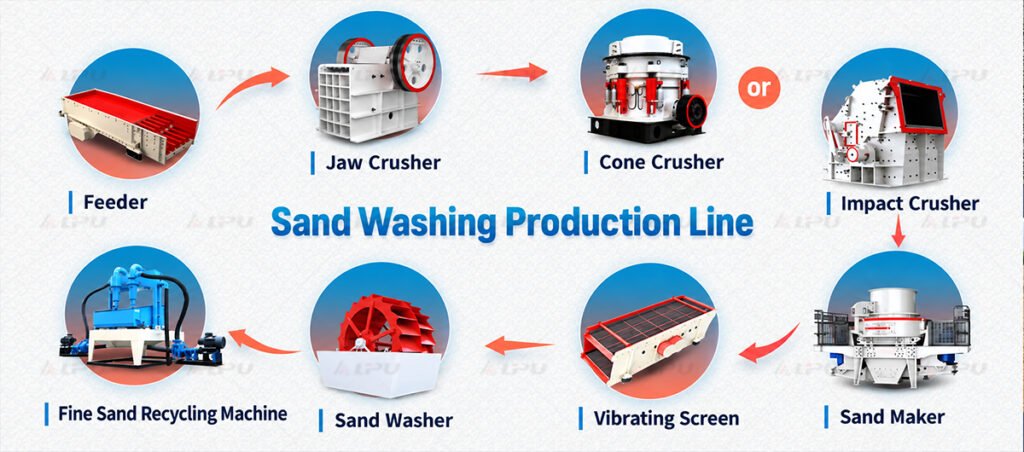

  • Application: Quartz sand, limestone, river pebbles, river sand, calcite, aluminum ore and other natural sand and machine-made sand washing; or widely uesd in sand making production line.

What’s a Wheel (Bucket) Type Sand Washing Machine?

Sand washing machine is artificial sand wet processing of the necessary equipment, which can effectively improve the quality of the finished sand. Our development and production of bucket sand washer and spiral sand washing machine combined with the actual situation of domestic and gravel industry, both cleaning, dewatering, grading three functions, widely used in metallurgy, building materials, utilities and other industries washing, grading, cleaning and other operations.

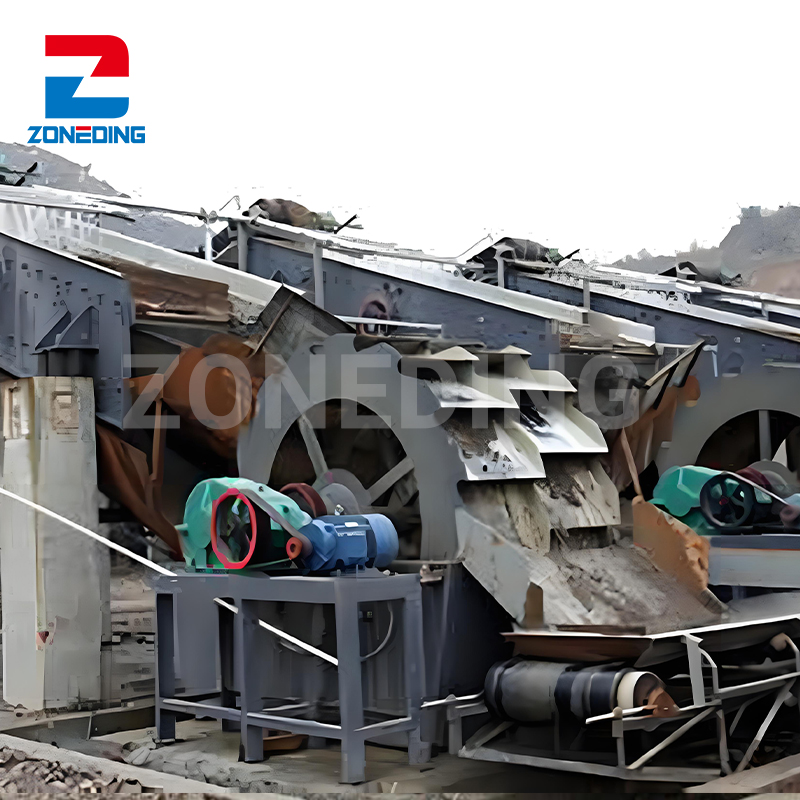

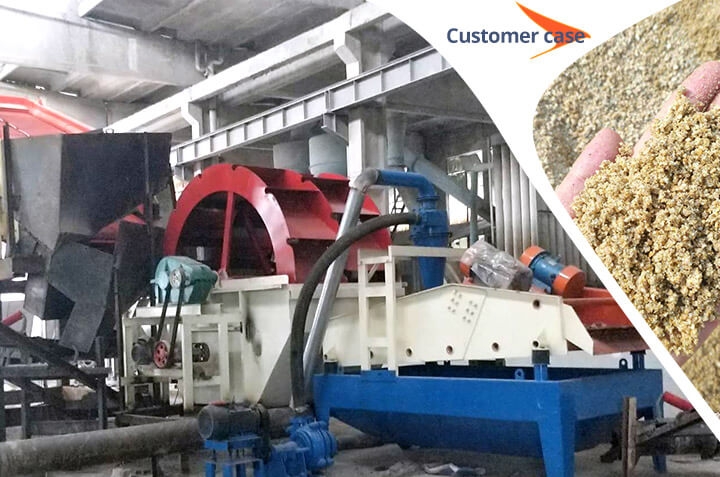

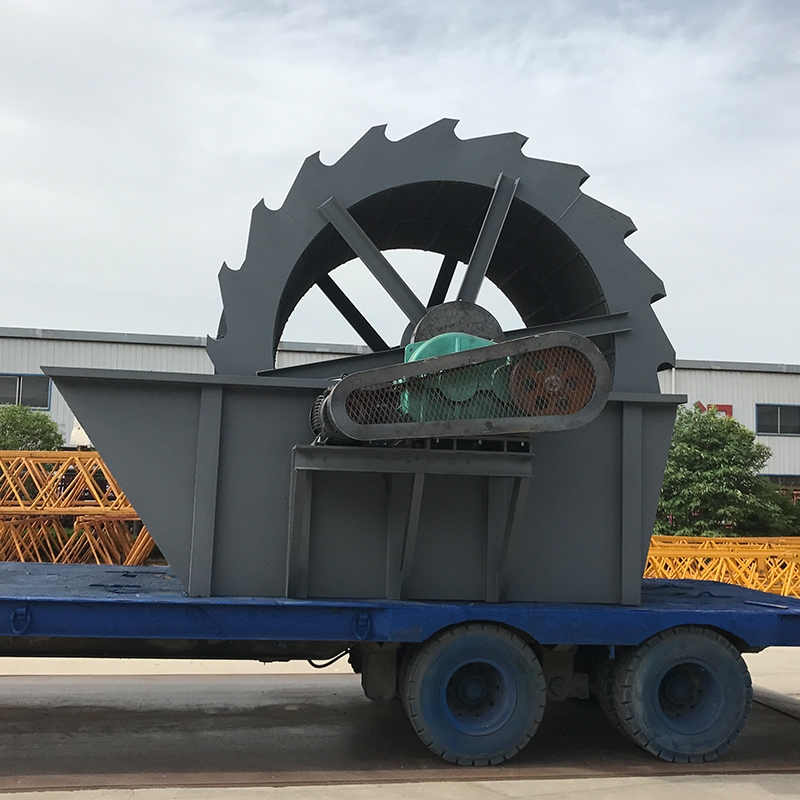

Bucket Sand Washer

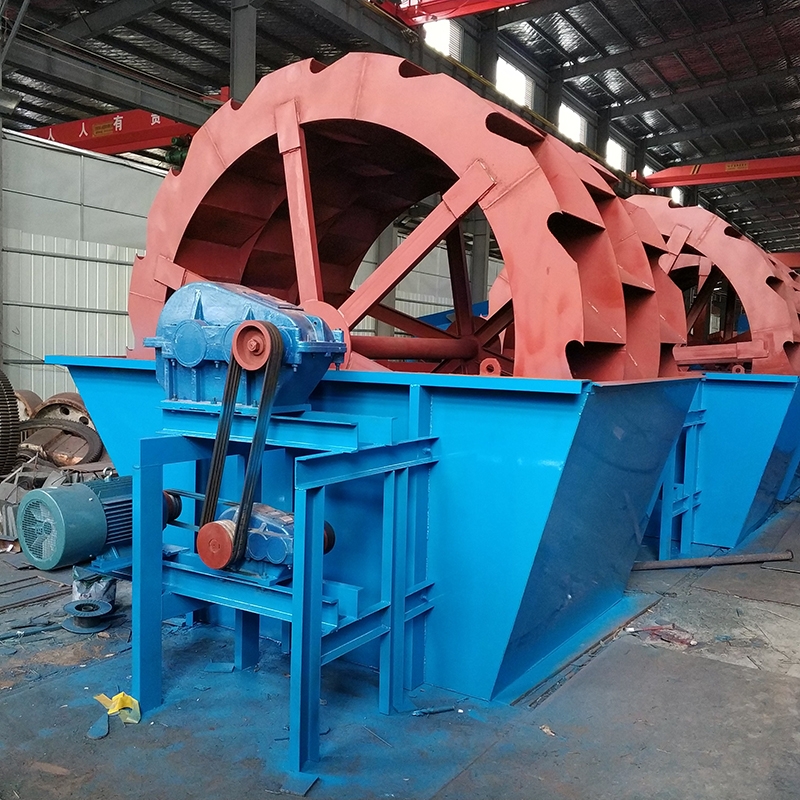

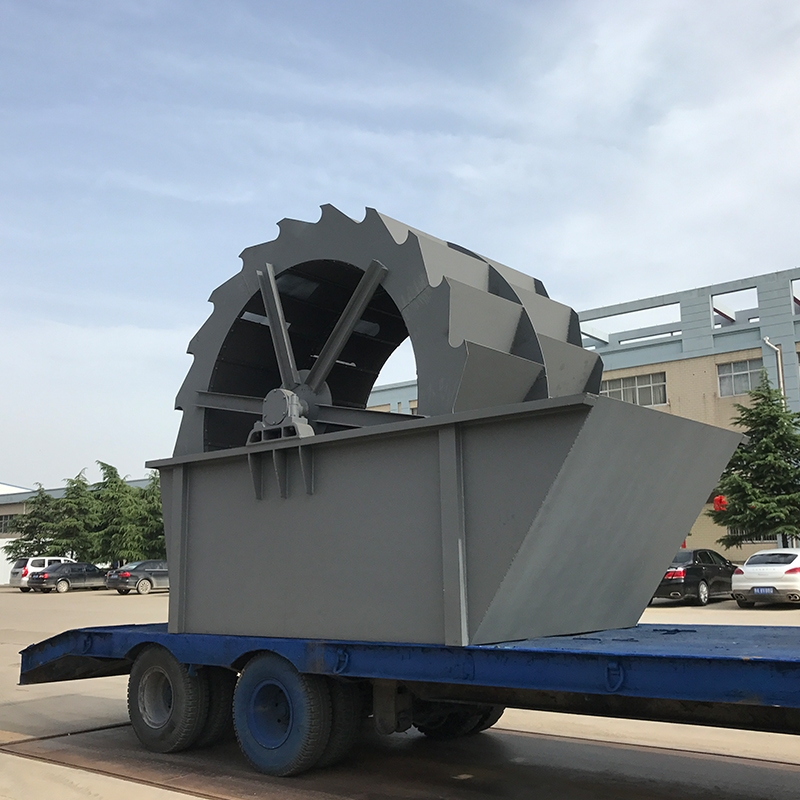

Bucket Sand Washer

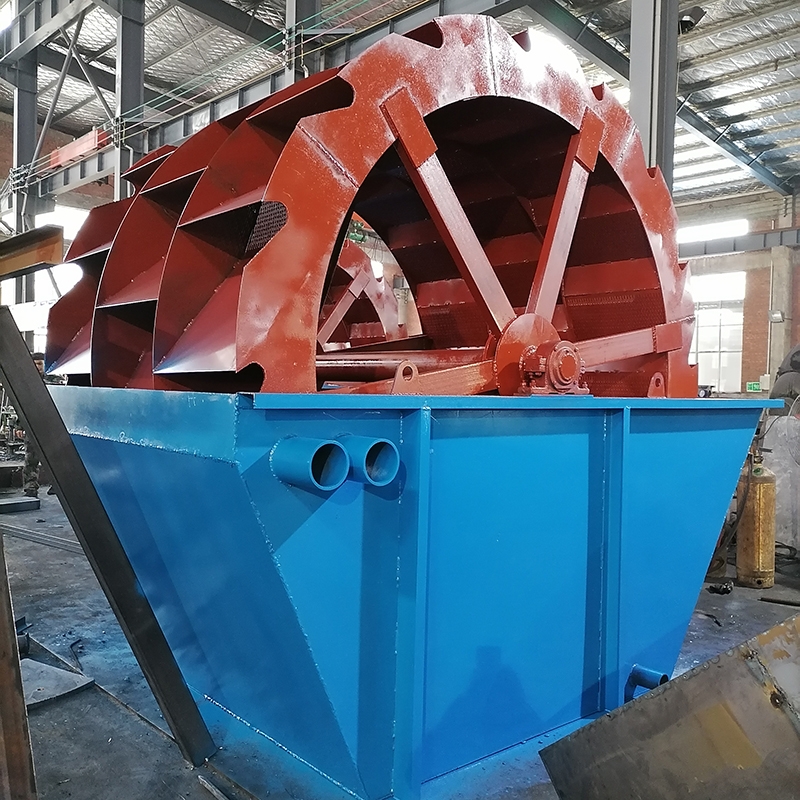

Bucket Sand Washer

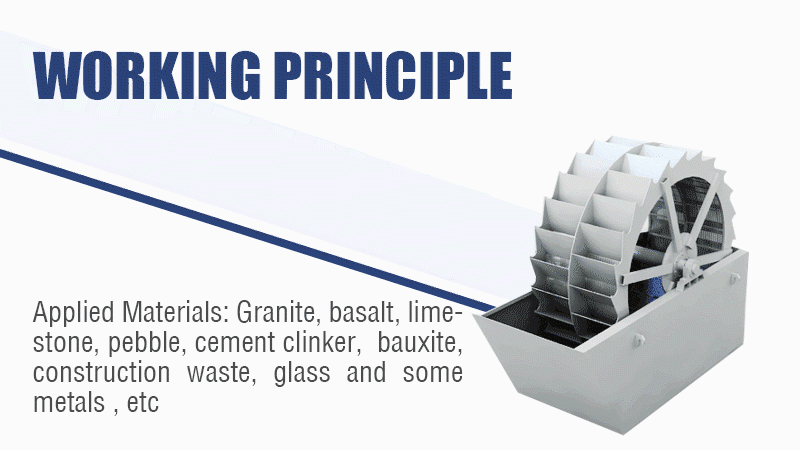

Working Principle Of Wheel (Bucket) Type Sand Washing Machine

The motor-driven impeller rotates slowly after the V-belt, reducer, and gear reduce speed. The sand enters the washing tank from the feed tank and rolls under the drive of the impeller, grinding away the impurities covering the surface of the sand and gravel, and at the same time destroying the water vapor layer covered by the sand particles to facilitate dehydration.
The eject water forms a strong water flow, timely removing impurities with small specific gravity, and is discharged from the overflow port flushing tank to complete the cleaning effect. The clean sand and stone are taken away by the blade, and then the sand is poured from the rotating impeller into the discharge tank to complete the cleaning of the sand and stone.

Working Principle Of Wheel (Bucket) Type Sand Washing Machine

Advantages Of Wheel (Bucket) Type Sand Washing Machine

  • Its transmission part is especially separated from water and sand. Its failure rate is much lower.
  • The loss of fine sand and stone powder is very small. After washing, the buildings’ sand gradation and fineness modulus have reached the standard requirements.
  • Except for the screen, the bucket sand washer has almost no wearing parts, a long service life and less maintenance.
  • Convenient maintenance, large processing capacity, low power consumption and high washing.

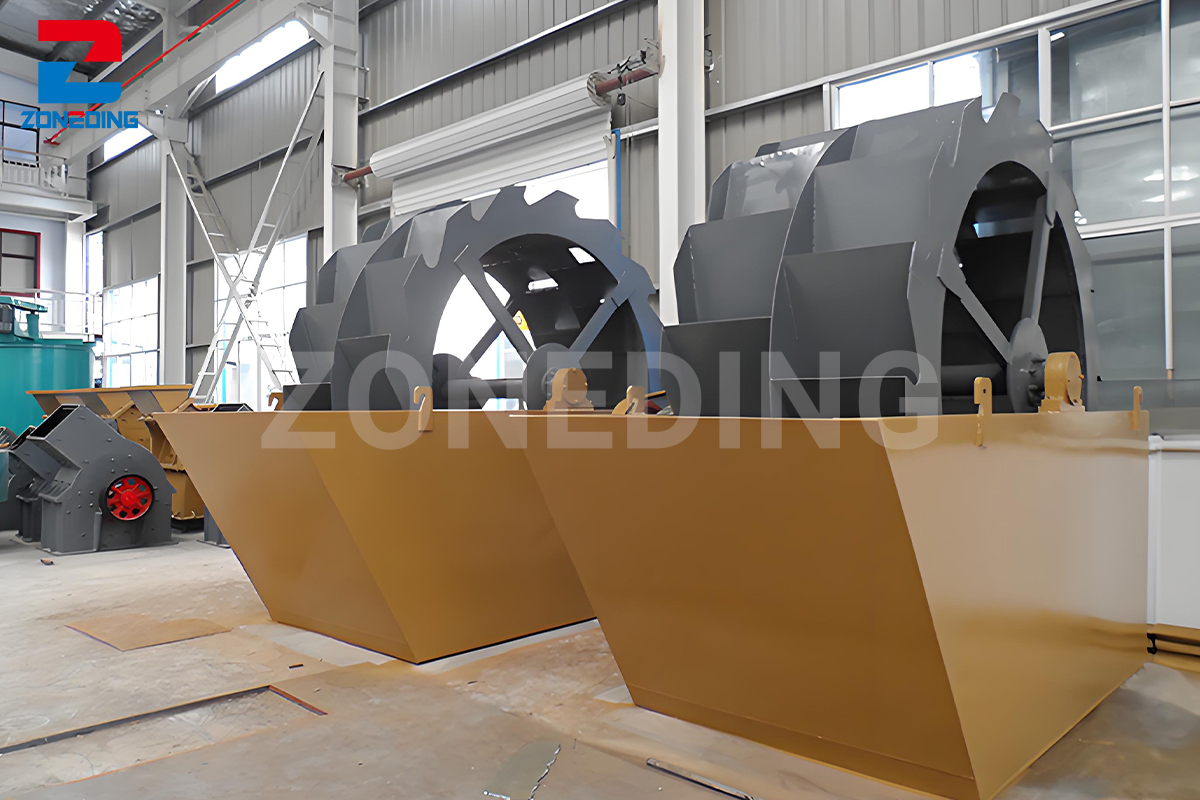

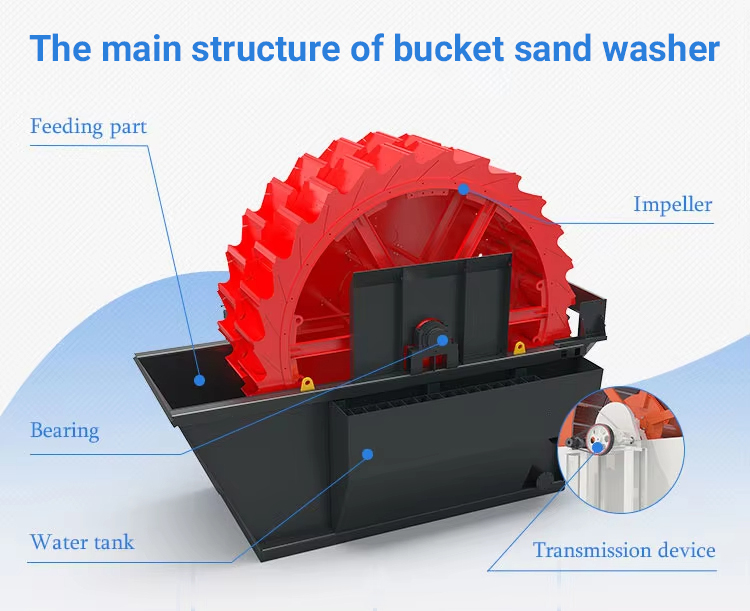

Wheel bucket sand washing machine structure

The structure of bucket wheel sand washing machine mainly includes sand washing tank, bucket wheel and impeller, feeding and discharging system, transmission and power system, water circuit system, and frame and supporting structure. These parts work in tandem to achieve sand cleaning and impurity removal and improve sand quality. The structural design focuses on durability and easy maintenance.

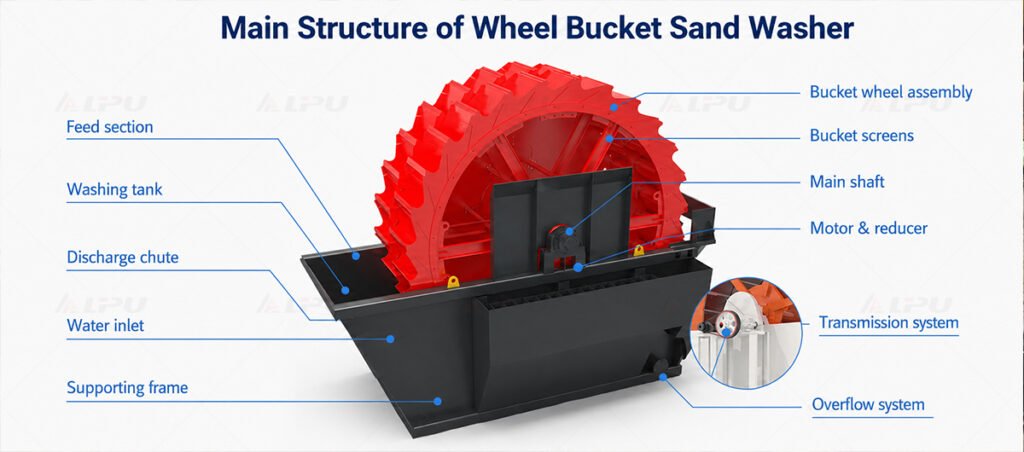

Wheel bucket sand washing machine structure

Customer site

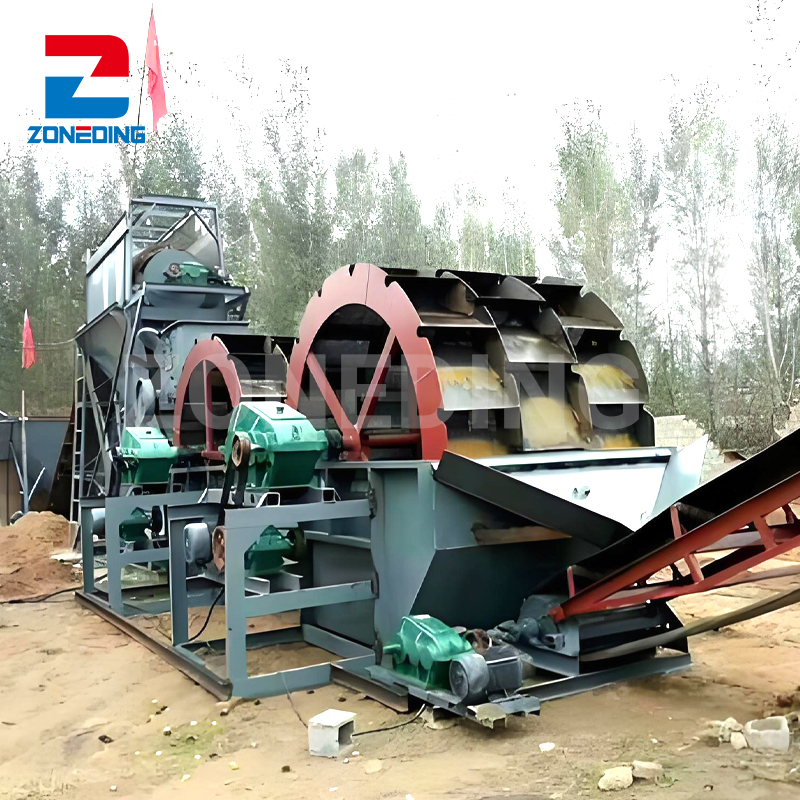

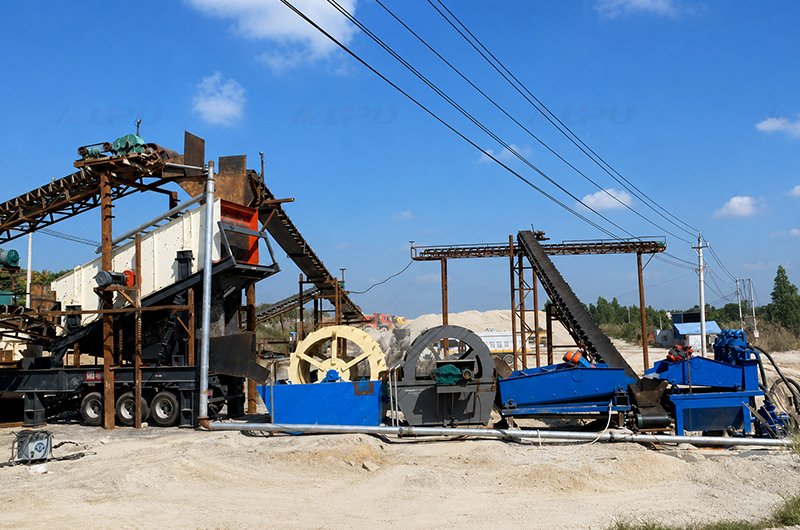

UAE Customer Site

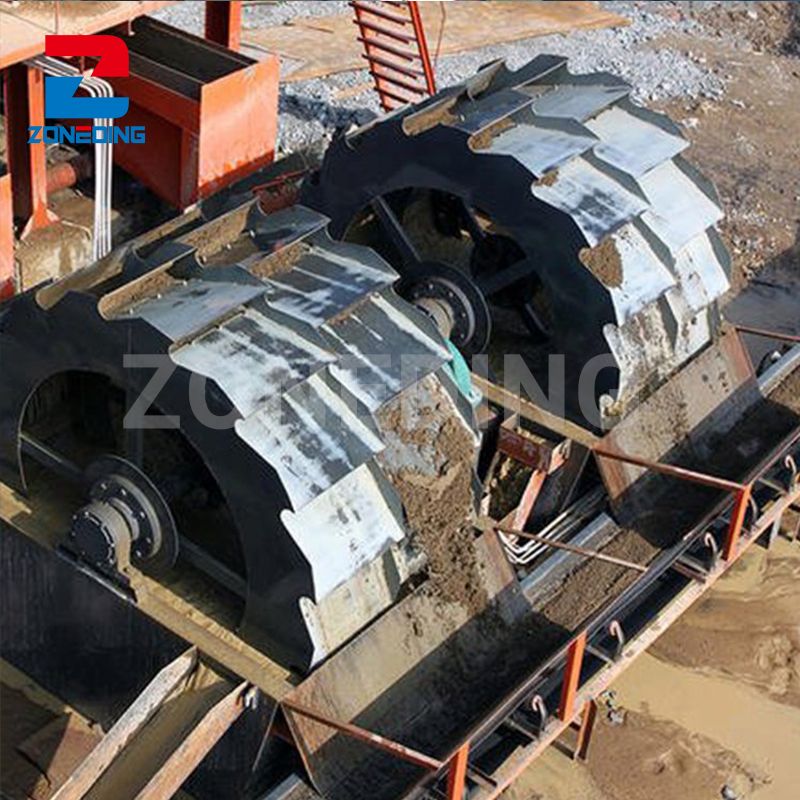

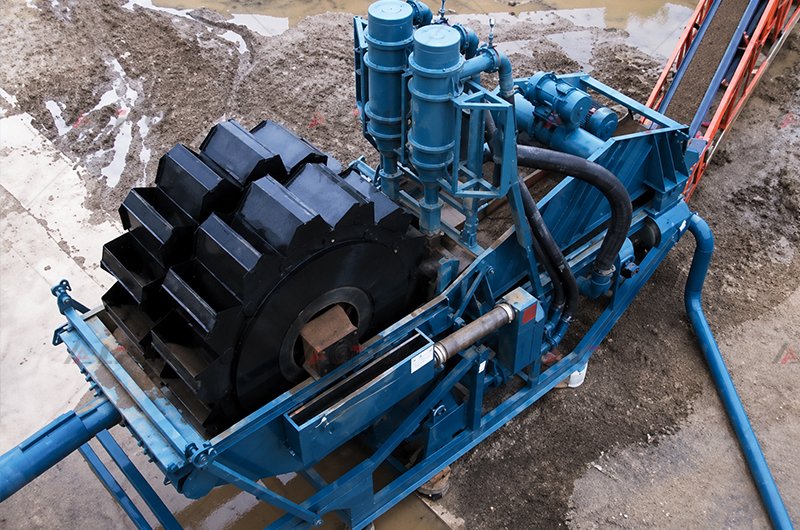

Kazakhstan customer site

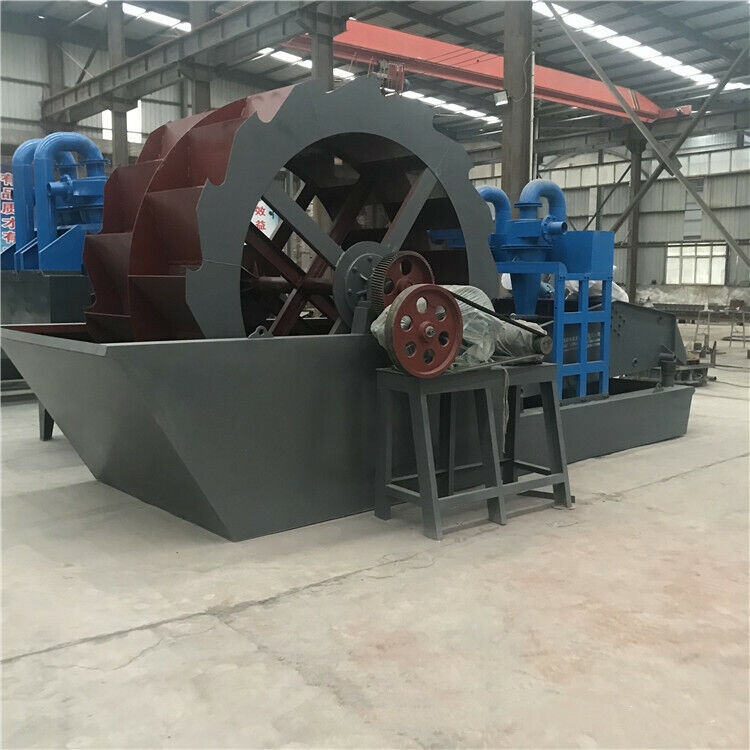

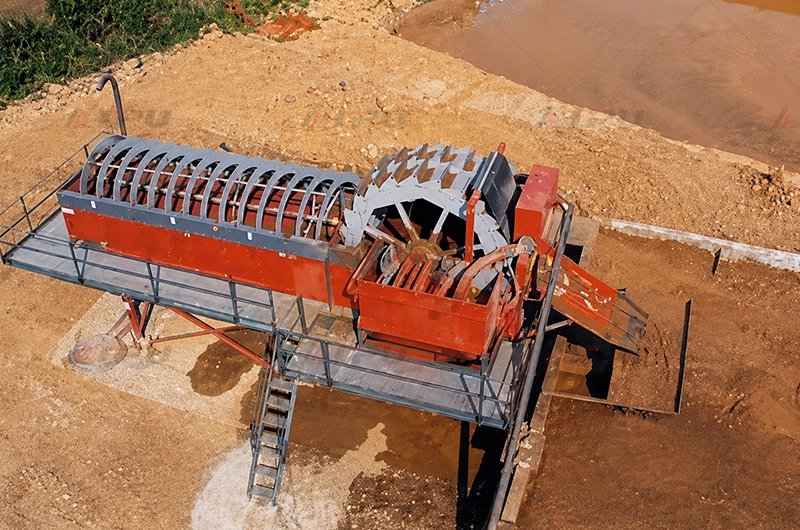

Turkish customer site

Specification

ModelDiameter of The Wheel Bucket
(mm)
Speed of Rotation(r/min)Maximum Feeding Size
(mm)
Process Capacity
(t/h)
Motor Power(kw)Overall Dimensions
(mm)
Weight
(kg)
XS22-222002.5≤1015-3043180*1955*23502260
XS26-226002.5≤1020-505.53515*2070*26722500
XS28-328001.2≤1050-80113964*3014*28953200
XS28-428001.17≤1060-100153964*2137*28953580
XS30-430001.2≤1070-110154169*3456*30553850
XS32-332001≤1080-120154340*2760*33493950
XS32-432001.17≤1095-13018.54346*2198*33454185
XS36-536001≤10110-200224580*3218*36004600

After-sales service

Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly.
Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills.
Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free.
Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner.
Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
